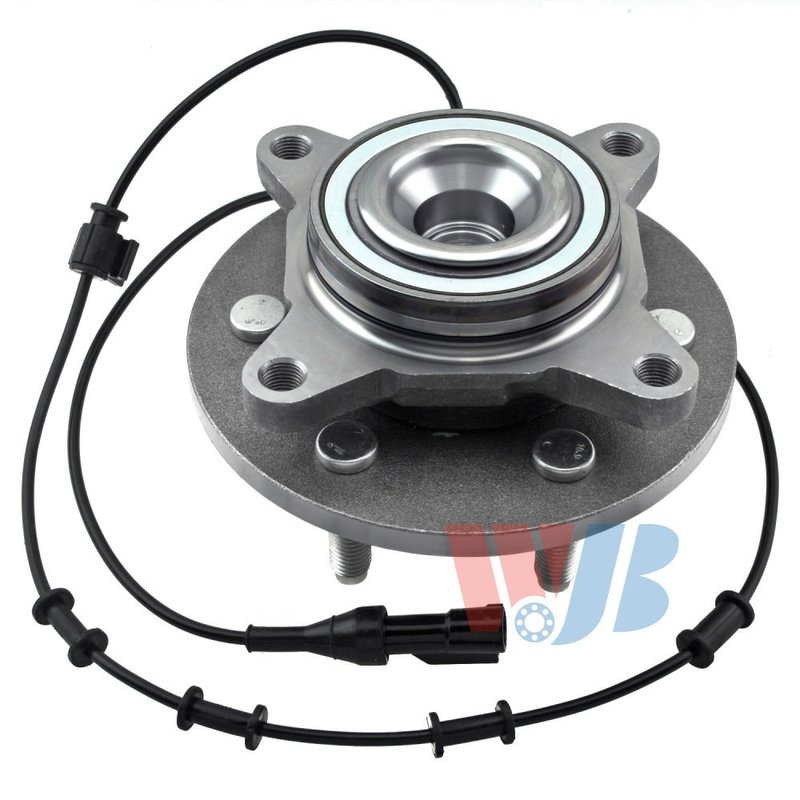

InMotion WA515042HD Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly

The InMotion WA515042HD wheel bearing and hub assembly is a direct replacement for select front applications on the Ford Expedition and Lincoln Navigator. Built from OE data and measurements, it is engineered for proper fitment, stable wheel support, and long service life.

For 2002-2006 Ford Expedition and 2002-2006 Lincoln Navigator front service, this hub assembly combines a roller bearing design with an integrated ABS sensor and wiring harness for a complete replacement solution.

Key Features

• Direct replacement wheel bearing and hub assembly for front non-driven applications
• OE-based dimensions for fit, performance, and durability
• Integrated ABS sensor included
• Roller bearing type for dependable wheel support
• Tone ring with 54 teeth and linear ABS connector
• 6 flange bolts included; 4 mounting bolts to knuckle required
• New assembly, manufactured under strict quality-control criteria
• Cross-references MOOG 515042 and SKF BR930457 for the same application

Detailed Description

InMotion WA515042HD is a front wheel bearing and hub assembly designed for 2002-2006 Ford Expedition and 2002-2006 Lincoln Navigator models. It uses OE data to match the original hub geometry, including a 3.54 in. / 90 mm hub pilot diameter, 7.2 in. / 183 mm flange diameter, and 1.79 in. / 45.4 mm flange offset. The assembly is built as a non-driven unit with a circle flange shape, M14-2 flange bolt thread size, M14-1.5 lug bolt thread size, and a 5.31 in. / 135 mm hub centerbore diameter.

The integrated ABS sensor, tone ring, and included wiring harness help maintain proper wheel speed signal transfer on the front axle. This part number, WA515042HD, is intended for buyers replacing a worn or noisy hub on a Ford Expedition or Lincoln Navigator and looking for a direct-fit front hub assembly.

What It Helps Address

• Wheel bearing noise from a worn front hub assembly
• ABS warning light concerns related to hub-mounted sensor failure
• Excessive wheel play or looseness at the front wheel
• Uneven wheel speed signal readings from a damaged tone ring
• Front-end vibration or rough wheel rotation caused by hub wear

Installation Notes and Tips

Confirm front position and non-driven application before ordering. Compare the original hub’s bolt pattern, connector style, and sensor layout to WA515042HD before installation. Clean the knuckle mounting surface thoroughly, inspect related fasteners and brake components, and torque all hardware to the vehicle manufacturer’s specifications. For 2002-2006 Ford Expedition and Lincoln Navigator front service, verify ABS connector routing and harness length during installation.

Quality Assurance

InMotion manufactures this hub assembly using high-precision processes and strict quality-control criteria. Each unit is built for the designated application using OE measurements to support proper fitment and consistent performance.
