Home› Driveline and Axles > Hubs and Related Components› InMotion WA515043HD Wheel Bearing and Hub Assembly - Front

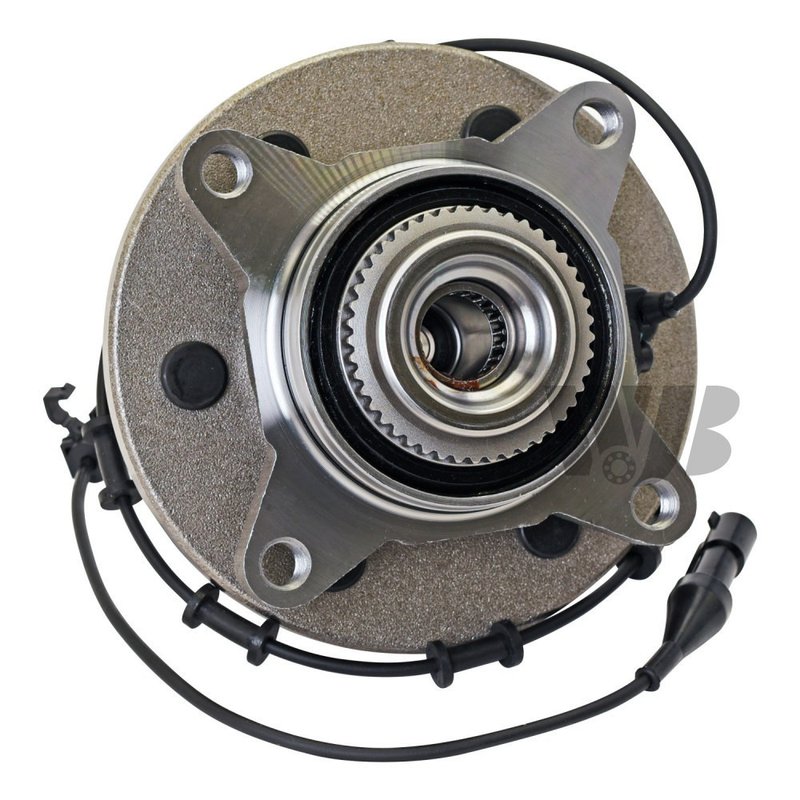

InMotion WA515043HD Wheel Bearing and Hub Assembly - FrontOE Quality 60-Day Returns
InMotion WA515043HD Wheel Bearing and Hub Assembly - Front - view 1
InMotion WA515043HD Wheel Bearing and Hub Assembly - Front - view 2
InMotion WA515043HD Wheel Bearing and Hub Assembly - Front - view 3
InMotion WA515043HD Wheel Bearing and Hub Assembly - Front - view 4
Part #: WA515043HD

InMotion WA515043HD Wheel Bearing and Hub Assembly - Front

Front
⚙️ 14 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$180.06Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
🚗Fitment: Ford and Lincoln, Expedition and Navigator
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Wheel Bearing and Hub Assembly options
InMotion WA515043HD Wheel Bearing and Hub Assembly - Front
BrandInMotion
Part NumberWA515043HD
Hub Pilot Diameter3.54
Hub Pilot Diameter90
Flange ShapeCircle
Anti Lock Brake Sensor IncludedYes
Bearing TypeRoller
Flange Offset1.79
Flange Offset45.4
Flange Diameter183
Flange Diameter7.2
Abs Connector ShapeLinear
Abs Ring TypeTone ring
Driven Or Non-drivenNon-driven
Flange Bolt Size (in)0.55000000000000004
Flange Bolt Size (mm)14
Flange Bolt Thread SizeM14-2
Hub Centerbore Diameter (in)5.31
Hub Centerbore Diameter (mm)135
Lug Bolt Thread SizeM14-1.5
New Or RemanufacturedNew
Number Of Abs Sensor Ring Teeth54
Number Of Flange Bolts Included6
Number Of Lug Bolts Included0
Number Of Mounting Bolts To Knuckle4
Wiring Harness IncludedYes
Wiring Harness Length (in)48

This part fits 14 vehicles. Search below:

YearMakeModelDrive TypePositionNotes
2006FordExpedition4WDFrontPremium Grade
2006LincolnNavigator4WDFrontPremium Grade
2005FordExpedition4WDFrontPremium Grade
2005LincolnNavigator4WDFrontPremium Grade
2004FordExpedition4WDFrontPremium Grade
2004LincolnNavigator4WDFrontPremium Grade
2003FordExpedition4WDFrontPremium Grade
2003LincolnNavigator4WDFrontPremium Grade
2002FordExpedition4WDFrontPremium Grade
2002LincolnNavigator4WDFrontPremium Grade
2001FordExpedition4WDFrontPremium Grade
2001LincolnNavigator4WDFrontPremium Grade
2000FordExpedition4WDFrontPremium Grade
2000LincolnNavigator4WDFrontPremium Grade

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

2L14-2B663BJ515043BR930453NHUB-21SP550202

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
