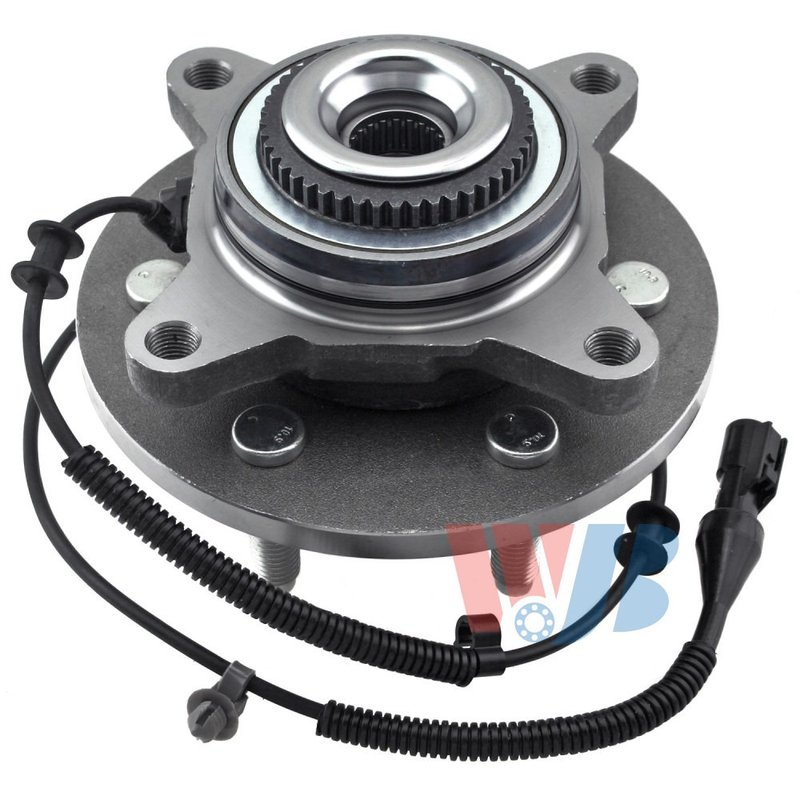

InMotion WA515046 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for Ford F-150

The InMotion WA515046 is a front wheel bearing and hub assembly built for 2004-2005 Ford F-150 and 2004 Ford F-150 Heritage applications. It is engineered from OE data and measurements for direct replacement fitment, with precision manufacturing and strict quality control for consistent wheel-end performance.

• Front wheel bearing and hub assembly for Ford F-150 and Ford F-150 Heritage
• 45 spline quantity
• 6 wheel studs with 4 flange bolt holes
• ABS sensor included
• Hub pilot diameter: 99.3 mm
• Wheel pilot diameter: 86.8 mm
• Brake pilot diameter: 90.0 mm
• Bolt circle diameter: 135.0 mm
• Flange diameter: 183.0 mm
• Flange offset: 45.5 mm

Detailed Fitment and Design

InMotion WA515046 is built as a direct replacement front hub assembly for 2004-2005 Ford F-150, front, Standard Grade, and 2004 Ford F-150 Heritage, front, Standard Grade. The OE-based dimensions help maintain proper wheel mounting, brake alignment, and sensor integration, while the included ABS sensor supports vehicles equipped with anti-lock braking systems. This part number, WA515046, is specified for front axle service where accurate hub pilot, brake pilot, and bolt circle measurements matter.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Problems This Part Can Address

• Wheel bearing noise from a worn front hub assembly
• Excessive wheel play or looseness at the front axle
• ABS warning light caused by a failing hub sensor assembly
• Uneven brake rotor seating from incorrect hub dimensions
• Vibration or runout related to hub wear on a Ford F-150

Installation Notes

Confirm front-position fitment before installation and verify spline count, bolt circle diameter, and pilot dimensions against the original part. Clean the mounting surface, inspect related suspension and brake components, and torque fasteners to the vehicle manufacturer’s specifications. For 2004-2005 Ford F-150 and 2004 Ford F-150 Heritage service, WA515046 should be matched to the exact front application listed above.

Quality Assurance

InMotion manufactures this hub assembly using high-precision processes and OE data to support fit, performance, and service life. Each unit is produced under strict quality-control criteria for direct replacement use.
