InMotionPart #: WA515046HD

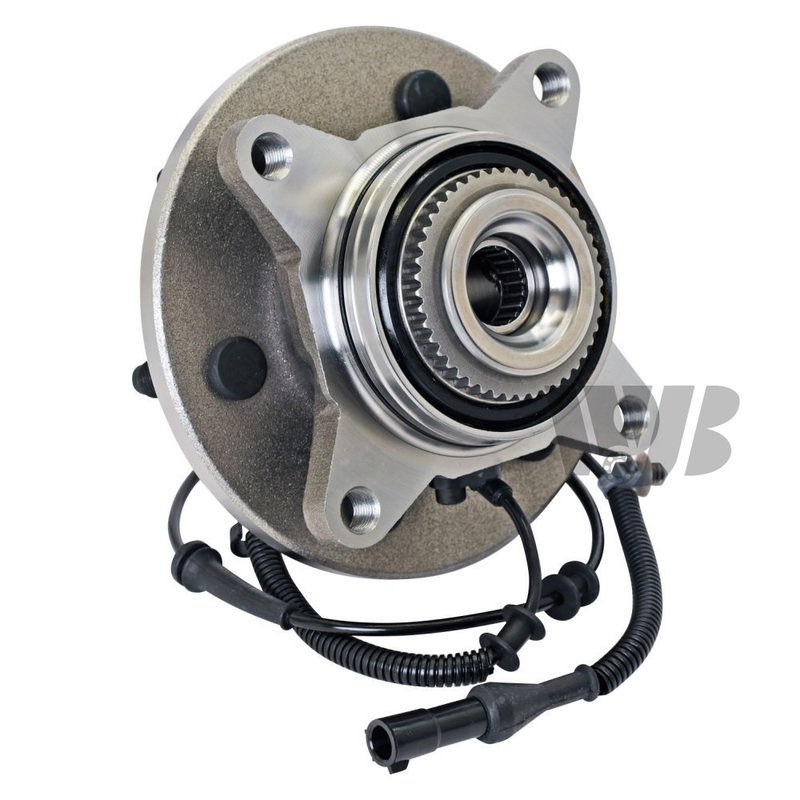

InMotion WA515046HD Wheel Bearing and Hub Assembly - Front
⚙️ 3 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$172.15Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
🚗Fitment: Ford, F-150 and F-150 Heritage
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Wheel Bearing and Hub Assembly options
InMotion WA515046HD Wheel Bearing and Hub Assembly - Front
| Brand | InMotion |
| Part Number | WA515046HD |
| Hub Pilot Diameter | 3.54 |
| Hub Pilot Diameter | 90 |
| Flange Shape | Circle |
| Anti Lock Brake Sensor Included | Yes |
| Bearing Type | Roller |
| Flange Offset | 1.79 |
| Flange Offset | 45.4 |
| Flange Diameter | 183 |
| Flange Diameter | 7.2 |
| Abs Connector Shape | Linear |
| Abs Ring Type | Tone ring |
| Driven Or Non-driven | Non-driven |
| Flange Bolt Size (in) | 0.55000000000000004 |
| Flange Bolt Size (mm) | 14 |
| Flange Bolt Thread Size | M14-2 |
| Hub Centerbore Diameter (in) | 5.31 |
| Hub Centerbore Diameter (mm) | 135 |
| Lug Bolt Thread Size | M14-1.5 |
| New Or Remanufactured | New |
| Number Of Abs Sensor Ring Teeth | 54 |
| Number Of Flange Bolts Included | 6 |
| Number Of Lug Bolts Included | 0 |
| Number Of Mounting Bolts To Knuckle | 4 |
| Wiring Harness Included | Yes |
| Wiring Harness Length (in) | 38 |
This part fits 3 vehicles. Search below:
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2005 | Ford | F-150 | 4WD | Front | Premium Grade |
| 2004 | Ford | F-150 | 4WD | Front | Premium Grade |
| 2004 | Ford | F-150 Heritage | 4WD | Front | Premium Grade |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
4L34-2B663AC515046BR930455NHUB-19SP450107
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
