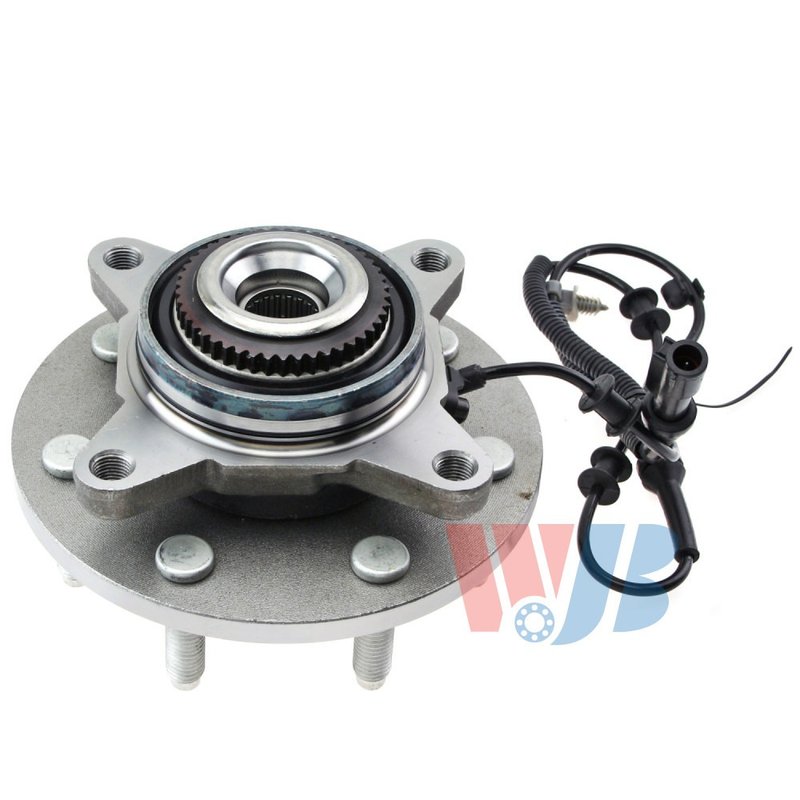

InMotion WA515047 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing and Hub Assembly for Ford F-150

Restore front-end wheel support and sensor function with the InMotion WA515047 wheel bearing and hub assembly. This direct replacement is engineered from OE data for the 2004-2005 Ford F-150 front application, with precision-machined dimensions for proper fitment and consistent performance.

• Direct replacement wheel bearing and hub assembly for the front of 2004-2005 Ford F-150
• 45-spline design with 7 wheel studs and 4 flange bolt holes
• ABS sensor included for vehicles equipped with wheel speed sensing at the hub
• OE-based measurements for wheel pilot diameter, brake pilot diameter, hub pilot diameter, and flange offset
• Built to match the designated application for fit, performance, and service life

Application and Fitment

Compatible with 2004-2005 Ford F-150, front. This InMotion WA515047 hub assembly is built for the standard grade front position and is sized to match the original hub interface, including a 149.82 bolt circle diameter, 189.9 flange diameter, and 45.55 flange offset. The 86.76 wheel pilot diameter and 90.02 brake pilot diameter help support correct wheel and brake component alignment.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Key Features

• Part number: WA515047
• Brand: InMotion
• Part type: Wheel Bearing and Hub Assembly
• Front position application
• ABS sensor included
• 45 spline quantity
• 7 wheel studs
• 4 flange bolt holes

What This Part Helps Address

• Front wheel bearing noise or rough rotation
• Wheel hub looseness or play at the front axle
• ABS warning light caused by a failed hub-mounted sensor
• Uneven wheel mounting caused by worn hub interfaces
• Brake and wheel alignment issues related to hub wear

Installation Notes and Tips

Confirm the vehicle is a 2004-2005 Ford F-150 before ordering, and verify front hub dimensions against the original part. Inspect the mating surfaces, axle splines, and brake components during installation, and torque all fasteners to factory specifications. Because this assembly includes an ABS sensor, check the connector routing and sensor alignment during replacement.

Quality Assurance

InMotion manufactures these hub assemblies using strict quality-control criteria and OE data-based measurements to support proper fitment, performance, and longevity. The WA515047 is produced as a direct replacement for the specified front Ford F-150 application.
