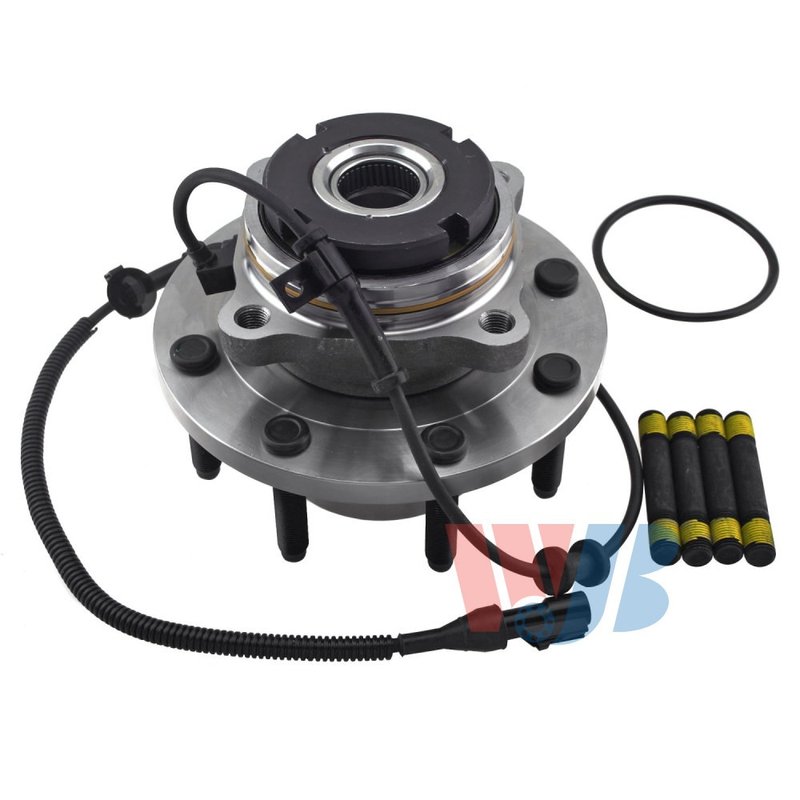

InMotion WA515056 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing and Hub Assembly for Super Duty Trucks

The InMotion WA515056 wheel bearing and hub assembly is built for front-end service on select Ford heavy-duty trucks. It is engineered from OE data and measurements for direct replacement fitment, with precision manufacturing and strict quality control for consistent hub performance and long service life.

Compatible With 2003-2005 Ford Excursion front, 2003-2004 Ford F-250 Super Duty front, and 2003-2004 Ford F-350 Super Duty front.

• Front wheel bearing and hub assembly
• 55-spline design with 8 wheel studs
• 4 flange bolt holes and square flange shape
• ABS sensor included
• Wheel pilot diameter: 125.0 mm
• Brake pilot diameter: 129.0 mm
• Hub pilot diameter: 113.9 mm
• Flange offset: 54.5 mm
• Flange diameter: 203.0 mm
• Bolt circle diameter: 170.0 mm / 6.693 in

Detailed Fitment and Application

Part number WA515056 is a direct replacement wheel hub assembly for the front axle on 2003-2005 Ford Excursion and 2003-2004 Ford F-250 Super Duty and F-350 Super Duty models. The assembly is built to match OE dimensions and mounting geometry, helping maintain proper wheel location, bearing support, and ABS sensor integration on these Ford Super Duty applications. This part cross-references 3C3Z1104A and HUB223 for the same application.

Common Problems This Part Can Address

• Front wheel bearing noise or rough rotation
• Excessive hub play or looseness at the wheel end
• ABS warning light caused by a failed hub sensor assembly
• Uneven wheel-end support from a worn hub assembly
• Vibration or instability related to hub wear

Installation Notes and Tips

Verify spline count, bolt circle diameter, flange offset, and pilot diameters before installation. Confirm front-position fitment on the specific Ford Excursion, F-250 Super Duty, or F-350 Super Duty application and inspect related components such as the axle shaft, knuckle, and brake hardware for wear before reassembly. Torque all fasteners to factory specifications and clear ABS codes after installation if required.

Quality Assurance

InMotion manufactures this hub assembly using OE data, precise measurements, and controlled production standards to support accurate fitment and dependable operation. The WA515056 is built as a direct replacement part for the listed Ford front-wheel applications.
