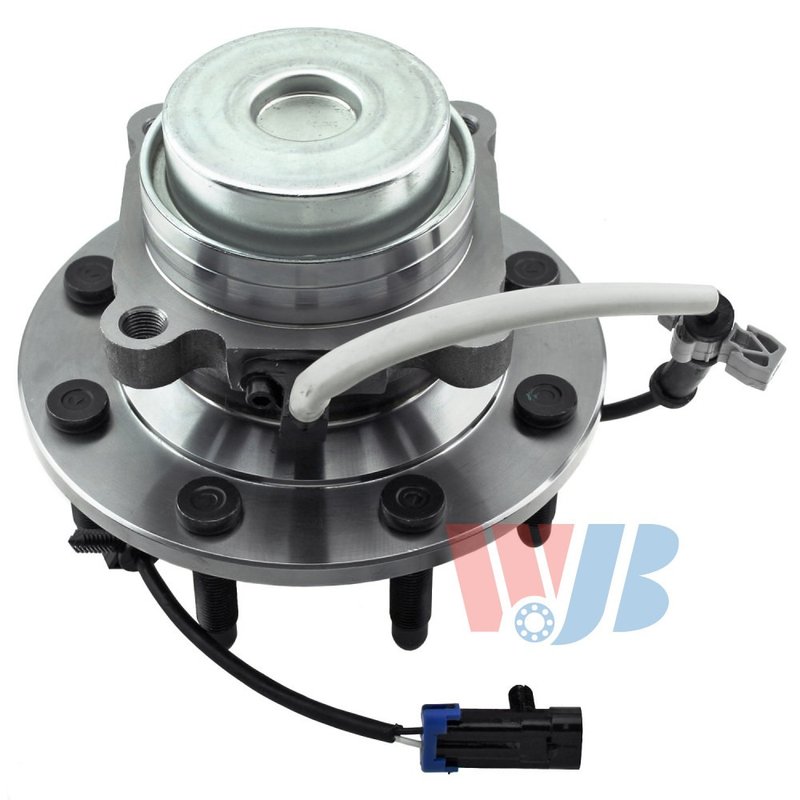

InMotion WA515059 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for Express and Savana

InMotion WA515059 is a front wheel bearing and hub assembly built for Chevrolet Express 2500, Chevrolet Express 3500, GMC Savana 2500, and GMC Savana 3500 applications. It is engineered from OE data and measurements for direct replacement fitment, with the hub, bearing, and ABS sensor integrated into one service part.

Key Features

• Front wheel bearing and hub assembly for 2003-2017 Chevrolet Express 2500 and Express 3500
• Front wheel bearing and hub assembly for 2003-2017 GMC Savana 2500 and Savana 3500
• Anti-lock brake sensor included
• 8 wheel studs with a 4-hole flange bolt pattern
• Modified flange shape with 199.3 flange diameter and 65.3 flange offset
• OE-based dimensions for fitment, performance, and service life
• Cross-reference part numbers: 85137056, FW759

Detailed Description

This InMotion wheel bearing and hub assembly, part number WA515059, is manufactured with high-precision processes and strict quality-control standards. It is designed as a direct replacement for the original front hub assembly on Chevrolet Express 2500, Chevrolet Express 3500, GMC Savana 2500, and GMC Savana 3500 models, helping maintain proper wheel mounting, bearing support, and ABS function. Key dimensions include a 116.7 wheel pilot diameter, 117.8 brake pilot diameter, 105.7 hub pilot diameter, and a 165.0 bolt circle diameter (6.5 bolt circle specification), which support accurate OE-style installation on the listed vehicles.

What It Helps Address

• Front wheel bearing noise or rough rotation
• Excessive wheel play or looseness at the hub
• ABS warning light concerns related to a failed hub sensor
• Uneven wheel mounting caused by worn hub components
• Service replacement needs on high-mileage Express and Savana vans

Installation Notes and Tips

Verify the vehicle year, model, and front position before ordering. Confirm hub dimensions, stud count, and bolt pattern against the original part, especially on Chevrolet Express 3500 models noted for 9600 lb GVW and on GMC Savana 3500 applications. Inspect the mating surfaces, axle hardware, and brake components during installation, and follow factory torque specifications for the hub and wheel fasteners.

Quality Assurance

InMotion manufactures this hub assembly using OE data and measurements and applies strict quality-control criteria during production. The result is a front hub replacement built to match the designated application for Chevrolet Express and GMC Savana service.

Fitment

• Fits 2003-2017 Chevrolet Express 2500, front
• Fits 2003-2017 Chevrolet Express 3500, front, to 9600 lb GVW
• Fits 2003-2017 GMC Savana 2500, front
• Fits 2003-2017 GMC Savana 3500, front
