Home› Driveline and Axles > Hubs and Related Components› InMotion WA515059HD Wheel Bearing and Hub Assembly - Front
InMotion WA515059HD Wheel Bearing and Hub Assembly - FrontOE Quality 60-Day Returns

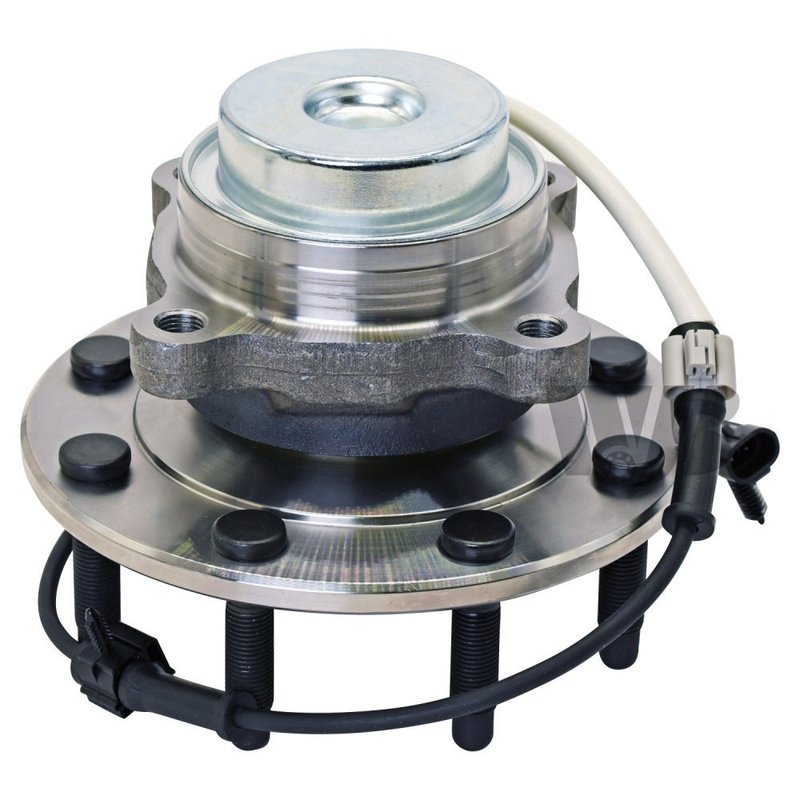

InMotion WA515059HD Wheel Bearing and Hub Assembly - Front - view 1
InMotion WA515059HD Wheel Bearing and Hub Assembly - Front - view 2
InMotion WA515059HD Wheel Bearing and Hub Assembly - Front - view 3
InMotion WA515059HD Wheel Bearing and Hub Assembly - Front - view 4
Part #: WA515059HD

InMotion WA515059HD Wheel Bearing and Hub Assembly - Front

Front
⚙️ 60 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$179.60Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
🚗Fitment: Chevrolet and GMC, Express 2500, Express 3500, Savana 2500, and Savana 3500
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Wheel Bearing and Hub Assembly options
InMotion WA515059HD Wheel Bearing and Hub Assembly - Front
BrandInMotion
Part NumberWA515059HD
Hub Pilot Diameter117.9
Hub Pilot Diameter4.6399999999999997
Flange ShapeCircle
Anti Lock Brake Sensor IncludedYes
Bearing TypeRoller
Flange Offset2.57
Flange Offset65.2
Flange Diameter199.3
Flange Diameter7.85
Abs Connector ShapeLinear
Abs Ring TypeTone ring
Driven Or Non-drivenNon-driven
Flange Bolt Size (in)0.55000000000000004
Flange Bolt Size (mm)14
Flange Bolt Thread SizeM14-1.5
Hub Centerbore Diameter (in)6.5
Hub Centerbore Diameter (mm)165.1
Lug Bolt Thread SizeM14-1.5
New Or RemanufacturedNew
Number Of Abs Sensor Ring Teeth55
Number Of Flange Bolts Included8
Number Of Lug Bolts Included0
Number Of Mounting Bolts To Knuckle4
Wiring Harness IncludedYes
Wiring Harness Length (in)30

This part fits 60 vehicles. Search below:

YearMakeModelDrive TypePositionNotes
2017ChevroletExpress 2500FrontPremium Grade
2017ChevroletExpress 3500FrontTo 9600 (lb) GVW
2017GMCSavana 2500FrontPremium Grade
2017GMCSavana 3500FrontPremium Grade
2016ChevroletExpress 2500FrontPremium Grade
2016ChevroletExpress 3500FrontTo 9600 (lb) GVW
2016GMCSavana 2500FrontPremium Grade
2016GMCSavana 3500FrontPremium Grade
2015ChevroletExpress 2500FrontPremium Grade
2015ChevroletExpress 3500FrontTo 9600 (lb) GVW
2015GMCSavana 2500FrontPremium Grade
2015GMCSavana 3500FrontPremium Grade
2014ChevroletExpress 2500FrontPremium Grade
2014ChevroletExpress 3500FrontTo 9600 (lb) GVW
2014GMCSavana 2500FrontPremium Grade
2014GMCSavana 3500FrontPremium Grade
2013ChevroletExpress 2500FrontPremium Grade
2013ChevroletExpress 3500FrontTo 9600 (lb) GVW
2013GMCSavana 2500FrontPremium Grade
2013GMCSavana 3500FrontPremium Grade
2012ChevroletExpress 2500FrontPremium Grade
2012ChevroletExpress 3500FrontTo 9600 (lb) GVW
2012GMCSavana 2500FrontPremium Grade
2012GMCSavana 3500FrontPremium Grade
2011ChevroletExpress 2500FrontPremium Grade
2011ChevroletExpress 3500FrontTo 9600 (lb) GVW
2011GMCSavana 2500FrontPremium Grade
2011GMCSavana 3500FrontPremium Grade
2010ChevroletExpress 2500FrontPremium Grade
2010ChevroletExpress 3500FrontTo 9600 (lb) GVW
2010GMCSavana 2500FrontPremium Grade
2010GMCSavana 3500FrontPremium Grade
2009ChevroletExpress 2500FrontPremium Grade
2009ChevroletExpress 3500FrontTo 9600 (lb) GVW
2009GMCSavana 2500FrontPremium Grade
2009GMCSavana 3500FrontPremium Grade
2008ChevroletExpress 2500FrontPremium Grade
2008ChevroletExpress 3500FrontTo 9600 (lb) GVW
2008GMCSavana 2500FrontPremium Grade
2008GMCSavana 3500FrontPremium Grade
2007ChevroletExpress 2500FrontPremium Grade
2007ChevroletExpress 3500FrontTo 9600 (lb) GVW
2007GMCSavana 2500FrontPremium Grade
2007GMCSavana 3500FrontPremium Grade
2006ChevroletExpress 2500FrontPremium Grade
2006ChevroletExpress 3500FrontTo 9600 (lb) GVW
2006GMCSavana 2500FrontPremium Grade
2006GMCSavana 3500FrontPremium Grade
2005ChevroletExpress 2500RWDFrontPremium Grade
2005ChevroletExpress 3500FrontTo 9600 (lb) GVW
2005GMCSavana 2500RWDFrontPremium Grade
2005GMCSavana 3500FrontPremium Grade
2004ChevroletExpress 2500RWDFrontPremium Grade
2004ChevroletExpress 3500FrontTo 9600 (lb) GVW
2004GMCSavana 2500RWDFrontPremium Grade
2004GMCSavana 3500FrontPremium Grade
2003ChevroletExpress 2500RWDFrontPremium Grade
2003ChevroletExpress 3500FrontTo 9600 (lb) GVW
2003GMCSavana 2500RWDFrontPremium Grade
2003GMCSavana 3500FrontPremium Grade

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

1806114651505985137056BR930352FW759HA590352

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
