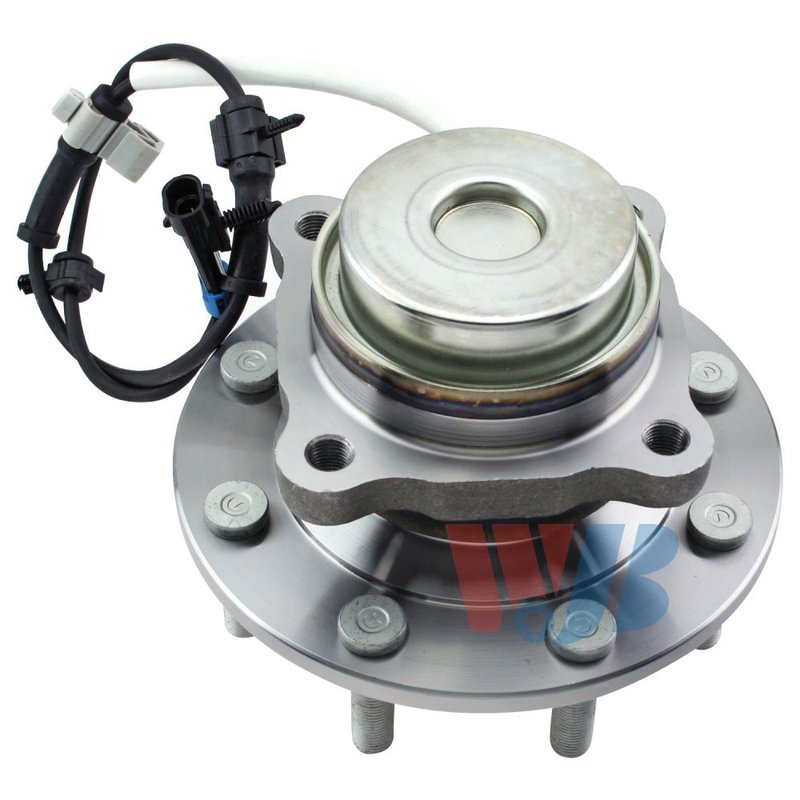

InMotion WA515060 Wheel Bearing and Hub Assembly - Front

Front Wheel Hub Assembly for Express 3500 and Savana 3500

InMotion WA515060 is a front wheel bearing and hub assembly built for direct replacement on select Chevrolet Express 3500 and GMC Savana 3500 vans. It is engineered from OE data and measurements for accurate fitment, stable wheel support, and long service life.

Fits 2003-2017 Chevrolet Express 3500, front. Fits 2003-2017 GMC Savana 3500, front.

Key Features

• Direct replacement wheel bearing and hub assembly for the front position
• Includes ABS sensor
• 8 wheel studs with a 4-bolt flange pattern
• Modified flange shape with 199.3 mm flange diameter
• Wheel pilot diameter: 116.6 mm
• Brake pilot diameter: 117.8 mm
• Hub pilot diameter: 105.8 mm
• Bolt circle diameter: 165.1 mm / 6.5 in
• Flange offset: 65.4 mm

Detailed Description

InMotion WA515060 is manufactured with high-precision processes and strict quality-control standards to match the original front hub assembly on the Chevrolet Express 3500 and GMC Savana 3500. The design uses OE data and measurements to support correct wheel mounting, brake interface alignment, and dependable hub operation. This part number, WA515060, is a practical OE-style replacement for front-end service on 2003-2017 Chevrolet Express 3500 and 2003-2017 GMC Savana 3500 models.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Repair Uses

• Front wheel bearing noise or rough rotation
• ABS warning light caused by a failed hub sensor
• Wheel looseness or play at the front hub
• Uneven braking feel related to hub wear
• Vibration or instability from a worn front hub assembly

Installation Notes and Tips

Confirm the vehicle is a front-position application before ordering. Verify wheel pilot, brake pilot, hub pilot, bolt circle diameter, and stud count against the original part to ensure proper installation. Because this assembly includes an ABS sensor, inspect the connector and wiring condition during replacement. Always follow factory service procedures and torque specifications for the Chevrolet Express 3500 and GMC Savana 3500.

Quality Assurance

InMotion manufactures this hub assembly using OE-based dimensions and controlled production standards to support consistent fitment and performance. WA515060 is built as a direct replacement part for the listed front applications.
