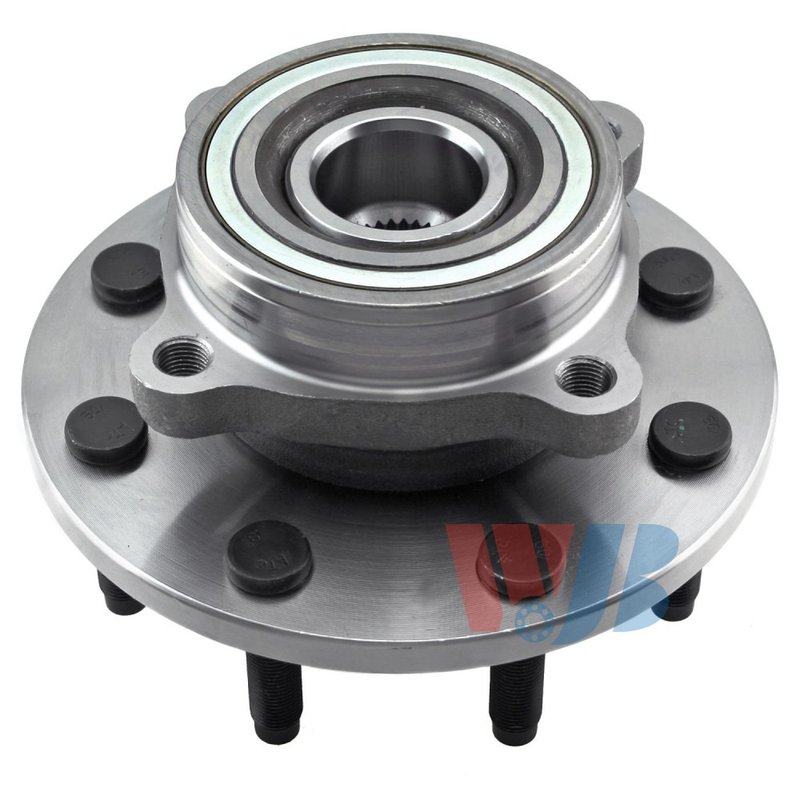

InMotion WA515062 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing and Hub Assembly for Ram 2500

InMotion WA515062 is a front wheel bearing and hub assembly built for 2000-2001 Dodge Ram 2500 trucks in standard grade applications. It is engineered from OE data and measurements to match the original fit, with the precision needed for dependable wheel support and consistent hub performance.

For Dodge Ram 2500 front hub replacement needs, WA515062 provides a direct replacement format designed around the vehicle’s original dimensions and mounting points.

Key Features

• Fits 2000-2001 Dodge Ram 2500, front
• Part number: WA515062
• 33-spline hub design
• 8 wheel studs with a 4-bolt flange pattern
• Bolt circle diameter: 165.1 mm
• Wheel pilot diameter: 120.9 mm
• Brake pilot diameter: 122.0 mm
• Hub pilot diameter: 113.8 mm
• Flange diameter: 205.0 mm
• Flange offset: 54.3 mm
• ABS sensor not included

Detailed Description

This InMotion wheel bearing and hub assembly is manufactured with high-precision processes and strict quality-control standards to support proper fitment and long service life. The assembly is built as an OE-style replacement for the front hub on the Dodge Ram 2500, using application-specific measurements to align with the original wheel and brake interface. WA515062 is a practical choice when replacing a worn front hub assembly on a 2000-2001 Dodge Ram 2500.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Reasons for Replacement

• Front wheel bearing noise or growling
• Excessive hub play or looseness
• Uneven wheel rotation or vibration
• Wheel stud or flange wear at the hub assembly
• Restoring proper front-end wheel support on a Dodge Ram 2500

Installation Notes and Tips

Confirm the vehicle is a 2000-2001 Dodge Ram 2500 with front application before ordering. Verify spline count, bolt circle diameter, pilot diameters, and flange dimensions against the original part to ensure correct installation. Because the ABS sensor is not included, reuse or source the sensor separately if your vehicle requires one.

Quality Assurance

InMotion manufactures this hub assembly using OE-based measurements and controlled production standards to help maintain fit, performance, and durability for the specified application.
