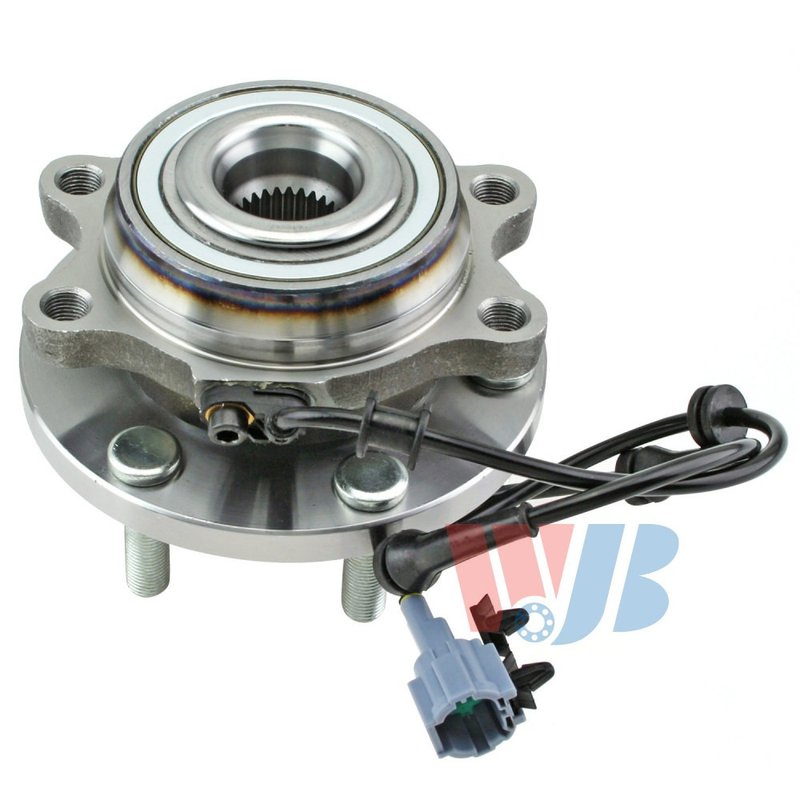

InMotion WA515065 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for Nissan and Suzuki

The InMotion WA515065 wheel bearing and hub assembly is built for front-end service on select Nissan and Suzuki applications. It is engineered from OE data and measurements for direct replacement fitment, with precision manufacturing and strict quality control for consistent wheel support and hub alignment.

Compatible with 2005-2019 Nissan Frontier front, 2005-2015 Nissan Xterra front, 2005-2012 Nissan Pathfinder front, and 2009-2012 Suzuki Equator front. The WA515065 includes an integrated ABS wheel speed sensor and is built around the specified hub and flange dimensions for the listed vehicles.

Key Features

• Part number: WA515065
• Front wheel bearing and hub assembly
• Integrated ABS sensor included
• 29 spline quantity
• 6 wheel studs
• 4 flange bolt holes
• Bolt circle diameter: 114.3 mm / 4.5 in.
• Wheel pilot diameter: 65.9 mm
• Brake pilot diameter: 68.0 mm
• Hub pilot diameter: 93.0 mm
• Flange diameter: 140.0 mm
• Flange offset: 46.0 mm
• Modified flange shape

Detailed Description

InMotion WA515065 is a front wheel hub assembly designed for select Nissan Frontier, Nissan Xterra, Nissan Pathfinder, and Suzuki Equator models. It uses OE-based measurements to match the original mounting and interface dimensions, including the 29-spline hub, 6-stud wheel pattern, 4-bolt flange, and 114.3 mm bolt circle. The integrated ABS sensor supports vehicles that rely on wheel speed input at the front hub. This part number, WA515065, is a direct replacement option for standard-grade front applications where accurate hub fitment and bearing support are required.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

• Front wheel bearing noise or rough rotation
• Excessive hub play or looseness at the wheel end
• ABS warning light concerns related to the front wheel speed sensor
• Vibration or uneven wheel support from a worn hub assembly
• Fitment issues when replacing the original front hub on listed Nissan and Suzuki models

Installation Notes and Tips

Verify the vehicle’s front application, spline count, bolt pattern, and sensor connection before installation. Clean the mounting surface thoroughly and inspect related components such as the axle nut, knuckle, and brake hardware for wear. Because this assembly is built to OE measurements, correct torque procedures and proper sensor routing are important for reliable operation.

Quality Assurance

InMotion manufactures these hub assemblies with high-precision processes and strict quality-control criteria. Each unit is engineered using OE data and measurements to support proper fitment, performance, and service life on the listed applications.
