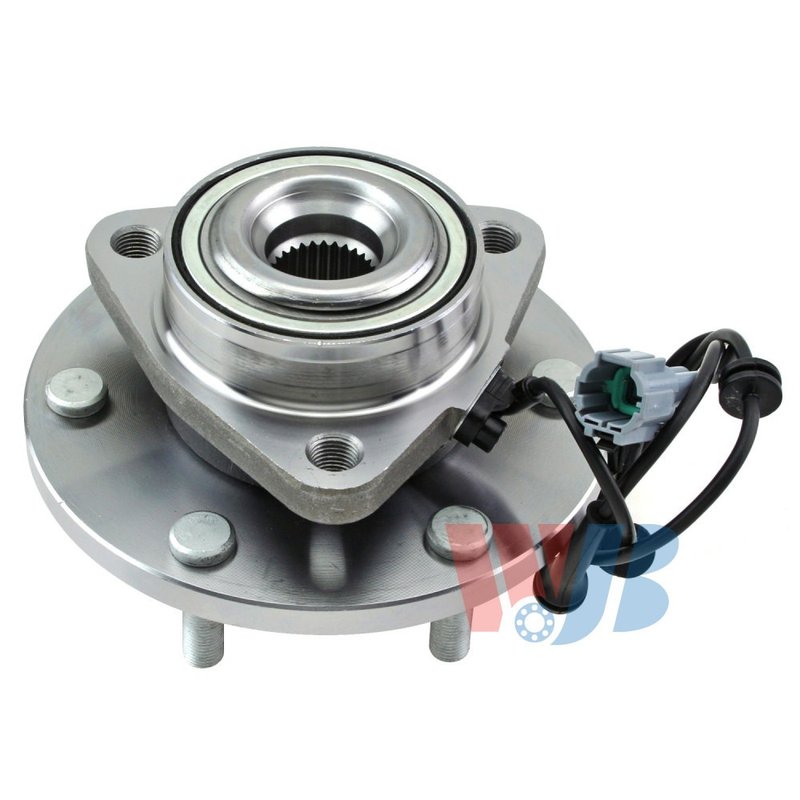

InMotion WA515066 Wheel Bearing and Hub Assembly - Front

Front Wheel Hub Assembly for Nissan and Infiniti

InMotion WA515066 is a front wheel bearing and hub assembly built for specific Nissan and Infiniti applications. It is engineered from OE data and measurements for direct replacement fitment, with precision manufacturing and quality-control standards focused on fit, performance, and service life.

Compatible with 2004-2007 Infiniti QX56 front, 2005-2007 Nissan Armada front, 2004-2007 Nissan Titan front, and 2004 Nissan Pathfinder front and Pathfinder Armada front. The WA515066 includes an integrated ABS sensor and is built around the hub dimensions and bolt pattern required for these vehicles.

Key Features

• Part number: WA515066
• Front wheel bearing and hub assembly
• Integrated anti-lock brake sensor included
• 29-spline hub design
• 6 wheel studs with 3 flange bolt holes
• Triangle flange shape
• Bolt circle diameter: 139.7 mm / 6.75 in.
• Flange diameter: 171.5 mm
• Flange offset: 45.8 mm
• Wheel pilot diameter: 77.7 mm
• Brake pilot diameter: 82.0 mm
• Hub pilot diameter: 89.0 mm

Detailed Description

InMotion WA515066 is a direct replacement front hub assembly for full-size Nissan and Infiniti trucks and SUVs that use this specific hub configuration. It is manufactured using OE reference data to match the original dimensions, mounting points, and sensor integration required for proper front-end service. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

• Front wheel bearing noise or rough rotation
• ABS warning light caused by a failed hub sensor assembly
• Wheel looseness or play at the front hub
• Uneven hub wear from a damaged original assembly
• Fitment issues when replacing a worn OE front hub

Installation Notes and Tips

Verify the spline count, bolt circle diameter, flange offset, and sensor configuration before installation. This assembly is intended for the front position only and should be matched to the vehicle’s original hub specifications. Inspect related components such as the axle nut, brake hardware, and wheel speed sensor wiring during service.

Quality Assurance

InMotion manufactures these hub assemblies with high-precision processes and strict quality-control criteria. Each unit is built to the specified application using OE measurements to support correct fitment and consistent performance.
