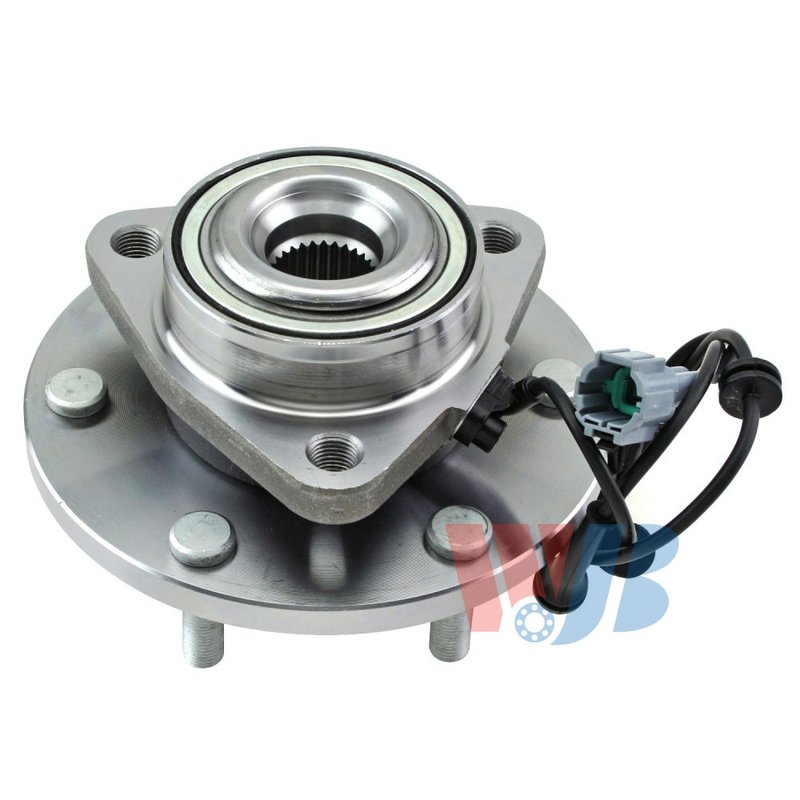

InMotion WA515066HD Wheel Bearing and Hub Assembly - Front

Front Wheel Hub Assembly for Nissan and Infiniti

The InMotion WA515066HD wheel bearing and hub assembly is a direct replacement front hub built for select Nissan and INFINITI applications. It is engineered from OE data and measurements for accurate fitment, stable performance, and long service life.

Built with precision manufacturing and strict quality control, this front wheel hub assembly includes the ABS sensor and wiring harness needed for the designated applications. It is a driven hub design with a roller bearing and a 29-spline configuration.

Key Features

• Front wheel bearing and hub assembly for driven applications
• Includes ABS sensor, tone ring, and wiring harness
• 29-spline hub design
• Roller bearing construction
• 6-bolt flange with M12-1.25 thread size
• 3-bolt knuckle mounting pattern
• Hub pilot diameter: 82 mm (3.23 in)
• Flange diameter: 171 mm (6.73 in)
• Flange offset: 45.5 mm (1.79 in)
• Hub centerbore diameter: 139.7 mm (5.5 in)

Detailed Description

The InMotion WA515066HD is a new front wheel bearing and hub assembly made for 2004-2007 INFINITI QX56, 2005-2007 Nissan Armada, 2004-2007 Nissan TITAN, 2004 Nissan Pathfinder, and 2004 Nissan Pathfinder Armada. It is built as an OE-style direct replacement using application-specific measurements to support proper hub alignment, ABS signal function, and dependable wheel support. This part cross-references MOOG Hub Assemblies 515066 for the same application.

For shoppers searching for a front wheel hub assembly for 2004-2007 Nissan TITAN, 2005-2007 Nissan Armada, or 2004-2007 INFINITI QX56, WA515066HD provides the required driven hub configuration with integrated ABS components. The assembly uses a linear ABS connector shape, a tone ring with 54 teeth, and a wiring harness length of 28 inches.

What It Helps Address

• Wheel bearing noise from a worn front hub assembly
• ABS warning light caused by a failed hub sensor or tone ring
• Front wheel looseness or play from bearing wear
• Uneven hub rotation or vibration at the wheel end
• Fitment issues when replacing the original front hub on listed Nissan and INFINITI models

Installation Notes and Tips

Verify the vehicle’s front hub specifications before installation, including the 29-spline driven configuration, 3-bolt knuckle mounting pattern, and M14-1.5 lug bolt thread size. Confirm ABS connector routing and harness length during installation to ensure proper sensor connection and secure placement.

Fits 2004-2007 INFINITI QX56, front; 2005-2007 Nissan Armada, front; 2004-2007 Nissan TITAN, front; 2004 Nissan Pathfinder, front; and 2004 Nissan Pathfinder Armada, front.

Quality Assurance

InMotion manufactures this hub assembly with high-precision processes and strict quality-control criteria. The part is engineered from OE data and measurements to support correct fitment, performance, and durability in the listed applications.
