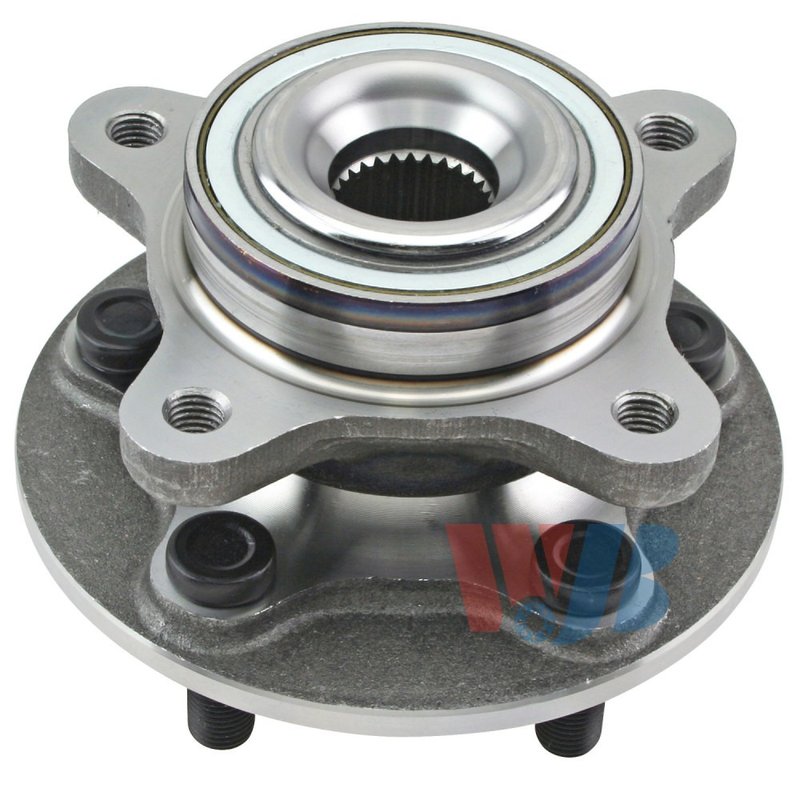

InMotion WA515067 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for Land Rover

InMotion WA515067 is a front wheel bearing and hub assembly built for direct replacement on select Land Rover applications. It is engineered from OE data and measurements for fitment, performance, and service life, with precision manufacturing and quality control focused on consistent wheel-end operation.

• Front wheel bearing and hub assembly
• 29-spline design
• 5 wheel studs
• 3 flange bolt holes
• Wheel pilot diameter: 72.5 mm
• Brake pilot diameter: 79.0 mm
• Hub pilot diameter: 89.0 mm
• Bolt circle diameter: 120.7 mm / 6.75 in
• Flange offset: 58.0 mm
• Offset trapezoid flange shape
• ABS sensor not included

Fitment

• Fits 2010-2016 Land Rover LR4, front, standard grade.
• Fits 2006-2013 Land Rover Range Rover Sport, front, standard grade.
• Fits 2005-2009 Land Rover LR3, front, standard grade.

Detailed Description

This InMotion wheel bearing and hub assembly, part number WA515067, is designed for Land Rover LR4, Range Rover Sport, and LR3 front applications listed above. The assembly is manufactured to OE-based dimensions so the hub, bearing, pilot diameters, bolt pattern, and flange geometry align with the original wheel-end setup. For buyers searching for a front wheel bearing hub assembly for 2005-2016 Land Rover LR3, LR4, or Range Rover Sport, WA515067 provides the specified fitment and hardware interface points needed for a direct replacement service.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Repair Symptoms

• Wheel bearing noise or growling from the front end
• Excessive wheel play or looseness at the hub
• Uneven tire wear related to hub wear
• ABS warning light concerns when the original sensor is separate from the assembly
• Vibration or rough wheel rotation at the front axle

Installation Notes

Confirm the front position, spline count, bolt circle, and pilot diameters before installation. Because the ABS sensor is not included, transfer or service the sensor separately if your vehicle uses one. Always verify the vehicle’s year, model, and standard-grade front application against the fitment list before ordering.

Quality Assurance

InMotion manufactures this hub assembly using strict quality-control criteria and OE data to support proper fitment and long-term service. The part is built as a direct replacement for the original wheel hub assembly on the listed Land Rover applications.
