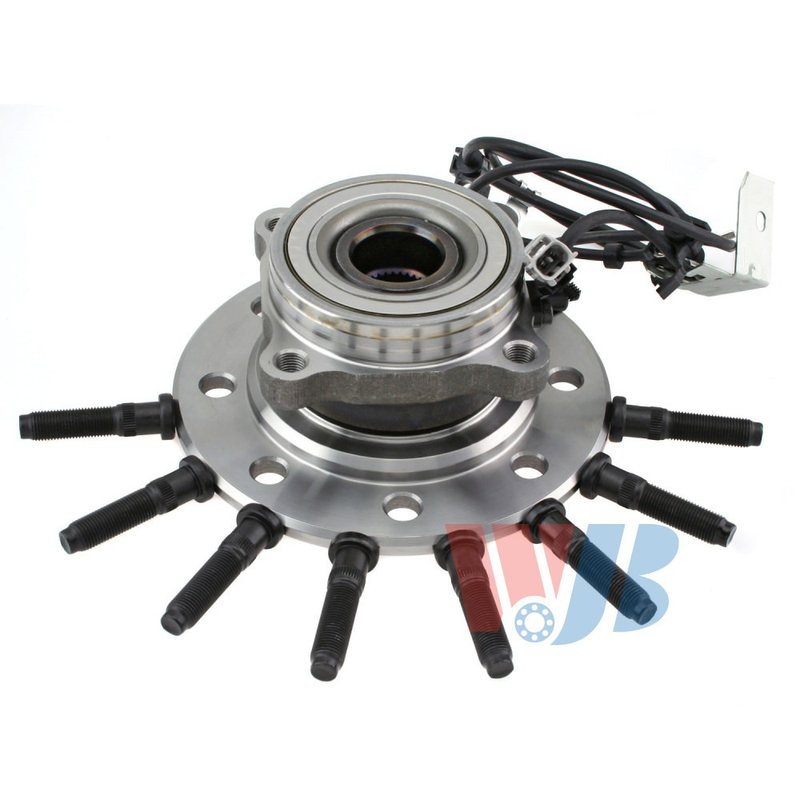

InMotion WA515068 Wheel Bearing and Hub Assembly - Front Left

Front Left Wheel Hub Assembly for Ram 3500

InMotion WA515068 is a front left wheel bearing and hub assembly for 1998-1999 Dodge Ram 3500 models. Built from OE data and measurements, it is engineered for direct replacement fitment, stable wheel support, and consistent hub performance.

• Fits 1998-1999 Dodge Ram 3500, front left
• 33-spline hub design
• 8 wheel studs with 15.3 stud size
• ABS sensor included
• 4 flange bolt holes with rectangular flange shape
• Wheel pilot diameter: 116.6 mm
• Hub pilot diameter: 113.8 mm
• Bolt circle diameter: 137.0 mm / 6.5 in

OE-Style Replacement Construction

This InMotion wheel bearing and hub assembly, part number WA515068, is manufactured with high-precision processes and strict quality-control standards. It is built to match the designated application for the 1998-1999 Dodge Ram 3500 front left position, using OE data and measurements to support proper fitment, performance, and service life. The integrated ABS sensor helps maintain the original sensor-equipped setup on the vehicle.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Problems This Part Can Address

• Wheel bearing noise from the front left hub area
• Excessive wheel play or looseness
• ABS warning light caused by a failed hub sensor assembly
• Uneven hub rotation or rough bearing feel
• Front-end vibration related to hub wear

Installation Notes and Tips

Confirm the vehicle is a 1998-1999 Dodge Ram 3500 with the front left hub application before installation. Compare spline count, bolt circle diameter, flange dimensions, and sensor configuration to the original part. Clean the mounting surface, inspect related steering and brake components, and torque fasteners to factory specifications during installation.

Quality Assurance

InMotion manufactures this hub assembly under strict quality-control criteria and uses OE-based measurements to support accurate replacement fitment. Part number WA515068 is built for the specified Ram 3500 application and is intended to meet the dimensional requirements of the original hub assembly.
