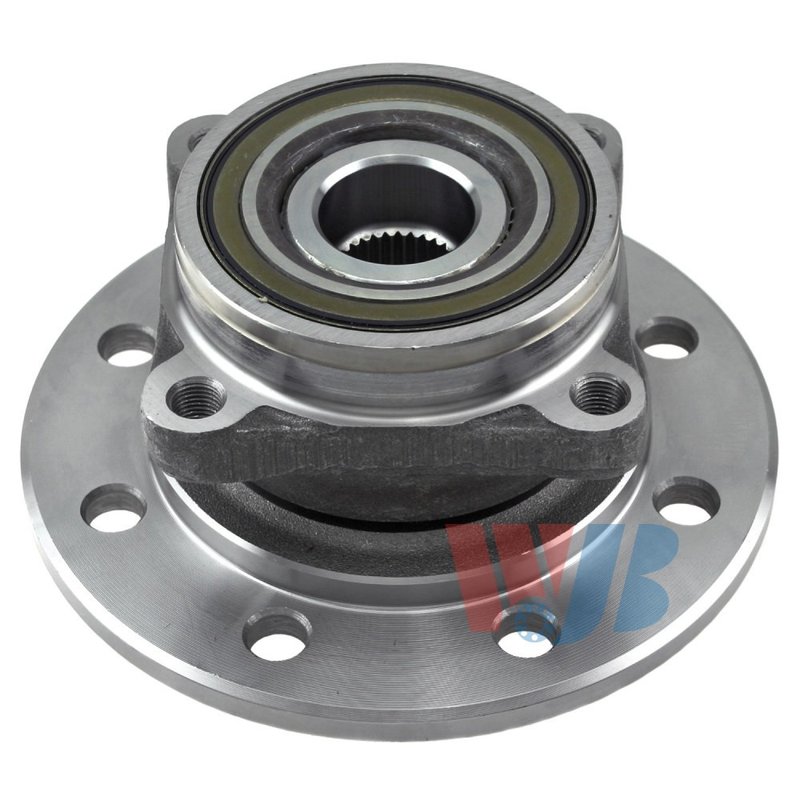

InMotion WA515070 Wheel Bearing and Hub Assembly - Front

Front Wheel Hub Assembly for Ram 3500

The InMotion WA515070 wheel bearing and hub assembly is a direct replacement for the front hub on select 1994-1999 Dodge Ram 3500 trucks. Built from OE data and measurements, it is engineered for accurate fitment, stable wheel support, and long service life.

For buyers searching for a front wheel bearing and hub assembly for 1994-1999 Dodge Ram 3500, WA515070 provides the key dimensions needed for a proper match. It is a standard-grade front hub assembly for Dodge Ram 3500 applications.

Key Features

• Direct replacement wheel bearing and hub assembly
• Fits 1994-1999 Dodge Ram 3500, front
• 33-spline hub design
• 8 wheel studs with 15.3 stud size
• 4 flange bolt holes and rectangular flange shape
• Wheel pilot diameter: 116.6
• Brake pilot diameter: 116.56
• Hub pilot diameter: 113.9
• Flange diameter: 208.0
• Bolt circle diameter: 165.1 / 6.5
• Anti-lock brake sensor not included

Detailed Description

InMotion WA515070 is a front wheel bearing and hub assembly for the Dodge Ram 3500, covering 1994-1999 models. It is manufactured with precision processes and quality-control standards, then matched to OE data so the hub dimensions, bolt pattern, and pilot measurements align with the original application. This makes it a practical replacement for worn or damaged front hub assemblies on Ram 3500 trucks.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

• Front wheel bearing noise or rough rotation
• Excessive wheel play from a worn hub assembly
• Vibration caused by hub or bearing wear
• Improper wheel mounting from damaged pilot or flange surfaces
• Restoring front-end driveline support on Dodge Ram 3500 trucks

Installation Notes

Verify spline count, bolt circle diameter, pilot diameters, and flange dimensions before installation. This assembly does not include an anti-lock brake sensor, so confirm the vehicle’s ABS configuration before ordering. Professional installation is recommended, and all mounting surfaces should be cleaned and inspected before the new hub is installed.

Quality Assurance

InMotion manufactures this hub assembly using OE-based measurements and controlled production standards to support consistent fitment and durability. Part number WA515070 is built as a direct replacement for the specified Dodge Ram 3500 front application.
