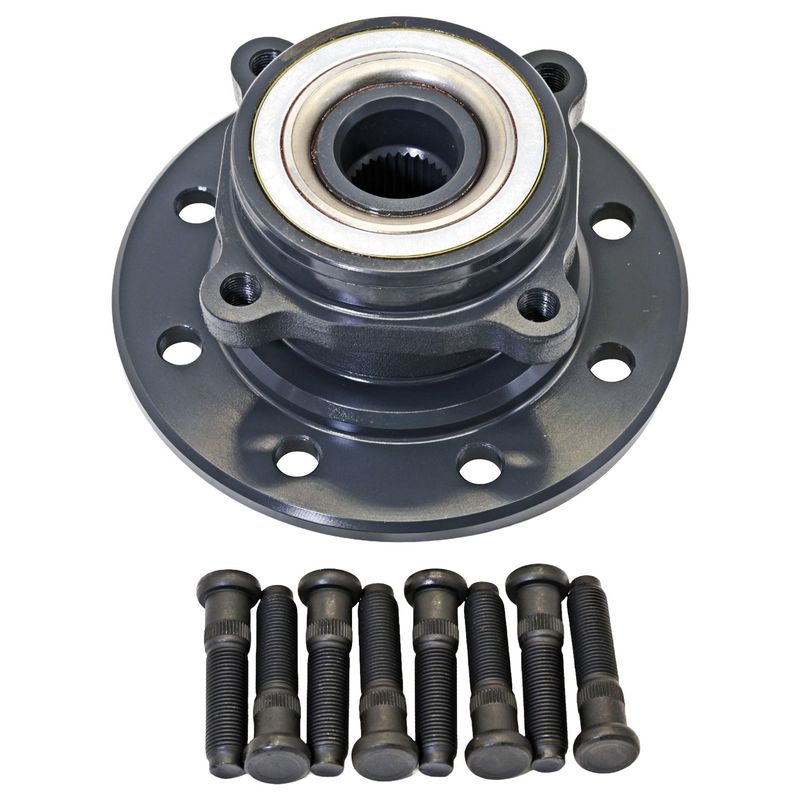

InMotion WA515070HD Wheel Bearing and Hub Assembly - Front
| Brand | InMotion WA515070HD |
|---|---|
| Position | Front |
| Spline Quantity | 33 |
| Hub Pilot Diameter | 116.6 |
| Hub Pilot Diameter | 4.59 |
| Flange Shape | Circle |
| Anti Lock Brake Sensor Included | No |
| Bearing Type | Roller |
| Flange Offset | 2.7 |
| Flange Offset | 68.5 |
| Flange Diameter | 208 |
| Flange Diameter | 8.19 |
| Driven Or Non-driven | Driven |
| Flange Bolt Size (in) | 0.6 |
| Flange Bolt Size (mm) | 15.3 |
| Hub Centerbore Diameter (in) | 6.5 |
| Hub Centerbore Diameter (mm) | 165.1 |
| Lug Bolt Thread Size | M14-1.5 |
| New Or Remanufactured | New |
| Number Of Flange Bolts Included | 8 |
| Number Of Lug Bolts Included | 0 |
| Number Of Mounting Bolts To Knuckle | 4 |
| Wiring Harness Included | No |
| Fits | Dodge · 6 vehicles |
OE-based fitment. Engineered from original measurements for the designated application.
Roller bearing design. Built with a roller bearing for hub support and smooth operation.
Direct replacement style. Made for the specified application with strict quality-control criteria.
Cross-references MOOG Hub Assemblies 515070, SKF BR930451 and Timken HA590018 for the same application. See all 4.
Wheel Bearing and Hub Assembly Overview
InMotion WA515070HD is a new wheel bearing and hub assembly built for driven front applications with OE-based measurements and strict quality control. It is a direct replacement style part for the designated application and is engineered for fit, performance, and service life.
Compatible with Dodge Ram 3500 front applications, this hub assembly uses a roller bearing design, a 33-spline hub, and an M14-1.5 lug bolt thread size. The WA515070HD is built to match the original mounting and dimensional requirements for the application.
- New wheel bearing and hub assembly for driven applications
- Roller bearing construction for hub support
- OE data and measurements used in engineering
- 33-spline hub with M14-1.5 lug bolt thread size
- Anti-lock brake sensor not included
Fitment Details
Fits 1994-1999 Dodge Ram 3500, front.
This part cross-references MOOG Hub Assemblies (e.g., 515070) for the same application.
For Dodge Ram 3500 front service, WA515070HD is built to match the designated hub dimensions, flange layout, and mounting pattern. The circular flange design, 8-bolt flange pattern, and 4-bolt knuckle mounting layout support correct installation on the specified application. WA515070HD is also referenced by OE-style interchange numbers for the same use case.
What It Helps Address
- Wheel bearing noise from a worn hub assembly
- Excessive hub play or looseness
- Improper wheel mounting due to hub wear
- ABS sensor service when the original sensor is not reused
Installation Notes and Quality
Verify spline count, flange dimensions, and mounting pattern before installation. This assembly does not include an ABS sensor or wiring harness. Professional installation is recommended to confirm proper torque and hub seating.
InMotion manufactures these hub assemblies with high-precision processes and strict quality-control criteria, using OE data to support fitment and longevity.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 1999 | Dodge | Ram 3500 | 4WD | Front | Premium Grade |
| 1998 | Dodge | Ram 3500 | RWD | Front | Premium Grade |
| 1997 | Dodge | Ram 3500 | 4WD | Front | Premium Grade |
| 1996 | Dodge | Ram 3500 | 4WD | Front | Premium Grade |
| 1995 | Dodge | Ram 3500 | 4WD | Front | Premium Grade |
| 1994 | Dodge | Ram 3500 | 4WD | Front | Premium Grade |
