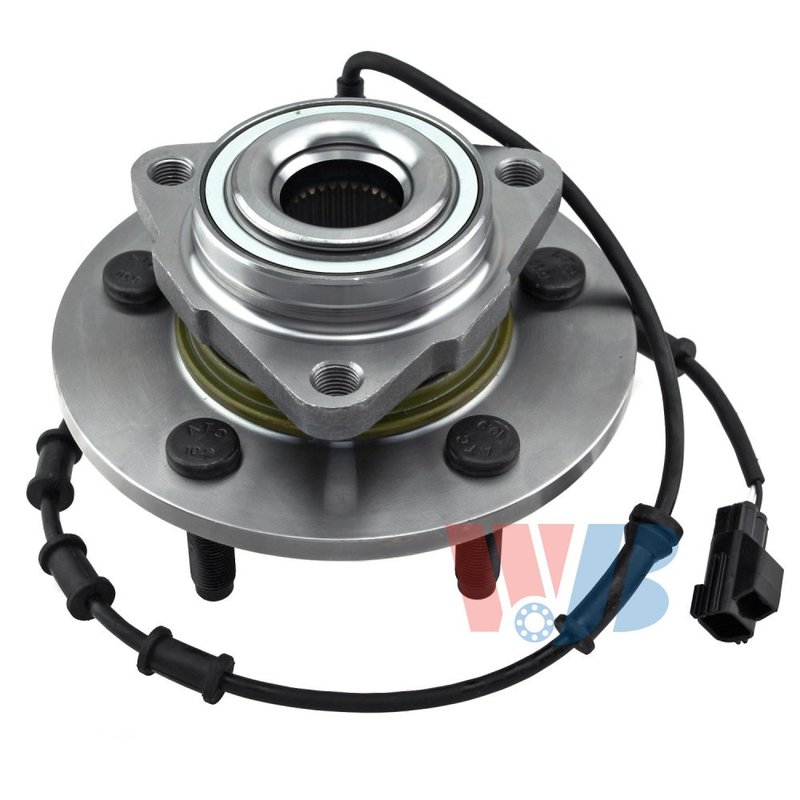

InMotion WA515073 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for Ram 1500

InMotion WA515073 is a front wheel bearing and hub assembly for 2002-2005 Dodge Ram 1500 Standard Grade applications. Built from OE data and measurements, it is engineered for direct replacement fitment, consistent hub alignment, and long service life.

• Fits 2002-2005 Dodge Ram 1500, front
• Part number: WA515073
• 33 spline quantity
• 5 wheel studs with 3 flange bolt holes
• ABS sensor included
• Modified flange shape with 46.8 flange offset
• Flange diameter: 183.0 mm
• Bolt circle diameter: 139.7 mm / 5.5 in
• Wheel pilot diameter: 77.7 mm
• Brake pilot diameter: 78.4 mm
• Hub pilot diameter: 90.0 mm

Detailed Product Overview

This InMotion wheel bearing and hub assembly is manufactured with strict quality-control criteria and high-precision production methods. The WA515073 is built to match the designated front hub application on the Dodge Ram 1500, helping maintain proper wheel mounting, brake interface, and ABS sensor integration. If you are searching for a front wheel bearing hub assembly for a 2002-2005 Dodge Ram 1500, WA515073 provides the OE-style dimensions and configuration needed for a direct replacement.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Problems This Part Can Address

• Front wheel bearing noise or rough rotation
• Excessive hub play or looseness at the wheel
• ABS warning light caused by a failed hub sensor assembly
• Uneven wheel mounting caused by worn hub surfaces
• Brake and wheel fitment issues related to hub wear

Installation Notes and Tips

Confirm front axle and hub specifications before installation on your Dodge Ram 1500. Compare spline count, bolt circle diameter, flange offset, and pilot diameters to the removed part to verify match-up. Because the ABS sensor is included, inspect the connector and wiring path during installation and clear any stored fault codes after the repair.

Quality Assurance

InMotion manufactures this hub assembly using OE data, precise measurements, and controlled production standards to support accurate fitment and dependable performance. Part number WA515073 is built as a direct replacement for the original front hub assembly on listed Ram 1500 applications.
