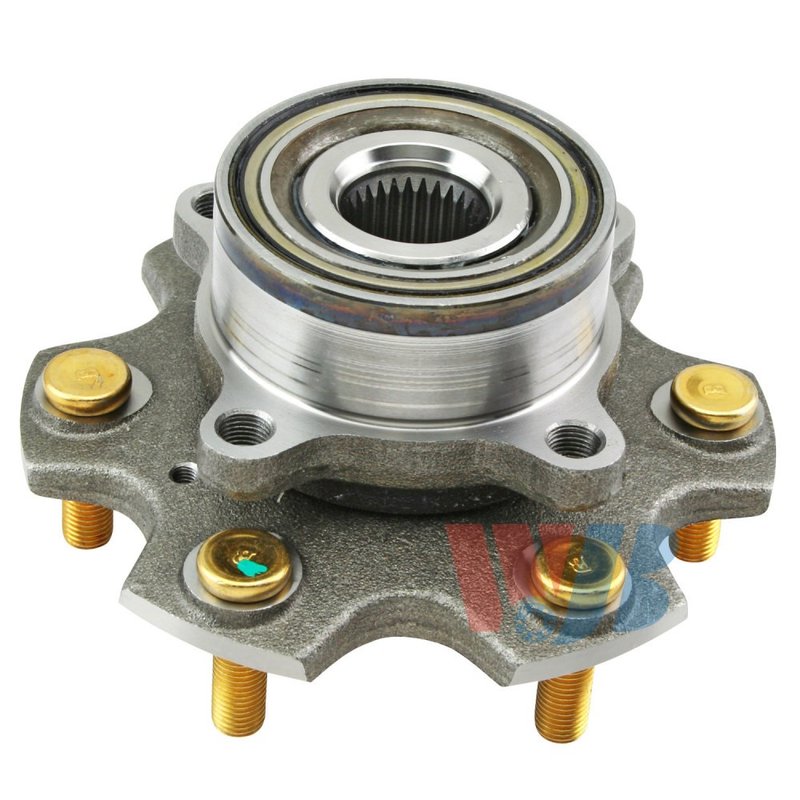

InMotion WA515074 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing and Hub Assembly for Montero

InMotion WA515074 is a front wheel bearing and hub assembly engineered for 2001-2006 Mitsubishi Montero models. Built from OE data and measurements, it is a direct replacement for the original front hub assembly and is specified for standard grade applications.

Key Features

• Direct replacement front wheel bearing and hub assembly
• Fits 2001-2006 Mitsubishi Montero, front
• 30-spline design with 6 wheel studs
• 4 flange bolt holes and modified flange shape
• Wheel pilot diameter: 67.0 mm
• Brake pilot diameter: 94.0 mm
• Hub pilot diameter: 86.0 mm
• Bolt circle diameter: 139.7 mm (5.5 in)
• Flange offset: 37.5 mm
• ABS sensor not included

Detailed Description

This InMotion wheel bearing and hub assembly, part number WA515074, is manufactured with precision machining and quality-control standards intended to match the original front hub on the Mitsubishi Montero. The assembly is engineered for the 2001-2006 Mitsubishi Montero, front position, using OE data to support proper fitment, performance, and service life. With a 30-spline hub, 6 wheel studs, and a 139.7 mm bolt circle diameter, WA515074 is a practical OE-style replacement for front-end hub service on the Montero.

What It Helps Fix

• Front wheel bearing noise or rough rotation
• Hub play or looseness at the wheel end
• Vibration related to worn hub components
• Stud or flange wear on the front hub assembly
• Service replacement for a damaged Mitsubishi Montero front hub

Installation Notes and Tips

Confirm the vehicle is a 2001-2006 Mitsubishi Montero with front hub application before ordering. Verify spline count, bolt circle diameter, flange offset, and pilot diameters against the original part. Because the ABS sensor is not included, reuse or source the sensor separately if your vehicle configuration requires one. Part number WA515074 should be matched to the original hub assembly before installation.

Quality Assurance

InMotion manufactures this hub assembly using OE-based measurements and strict quality-control criteria to support consistent fit and durability. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
