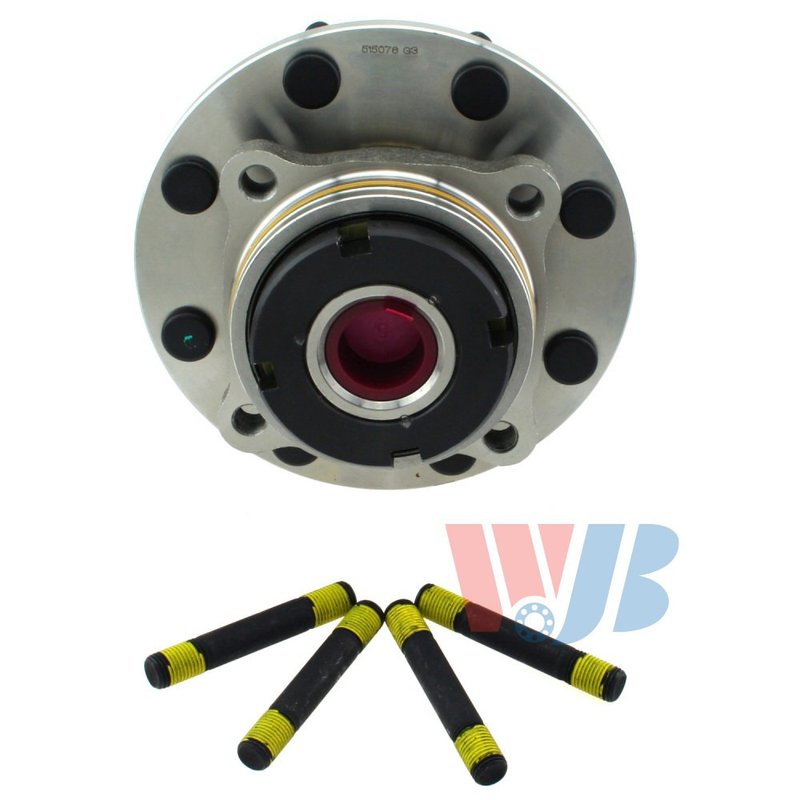

InMotion WA515076 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for Ford Super Duty

InMotion WA515076 is a front wheel bearing and hub assembly built for 1999 Ford F-250 Super Duty and 1999 Ford F-350 Super Duty applications. It is engineered from OE data and measurements for direct replacement fitment, with precision manufacturing and controlled quality checks for consistent wheel support and alignment.

Key Features

• Direct replacement front hub assembly for 1999 Ford F-250 Super Duty and 1999 Ford F-350 Super Duty
• Part number WA515076 for easy identification and ordering
• 55 spline count with 8 wheel studs
• 4 flange bolt holes and square flange shape
• Flange diameter: 203.0 mm; flange offset: 51.5 mm
• Wheel pilot diameter: 125.0 mm; brake pilot diameter: 129.0 mm; hub pilot diameter: 113.9 mm
• Bolt circle diameter: 170.0 mm / 6.693 in
• ABS sensor not included

Detailed Description

Built as a wheel bearing and hub assembly for the front axle, InMotion WA515076 is designed for Ford Super Duty trucks that require a precise OE-style replacement. The hub is manufactured using application-specific measurements to help maintain proper wheel mounting, brake interface dimensions, and driveline engagement. If you are replacing a worn front hub on a 1999 Ford F-250 Super Duty or 1999 Ford F-350 Super Duty, WA515076 provides the fitment and dimensional details needed for a direct service replacement. This part cross-references NHUB-56 for the same application.

Common Problems This Part Can Address

• Front wheel bearing noise or rough rotation
• Excessive hub play or looseness at the wheel end
• Uneven wheel mounting caused by a worn hub assembly
• Brake and wheel interface issues related to hub wear
• Loss of proper front-end support on heavy-duty Ford trucks

Installation Notes and Tips

Confirm the vehicle is a 1999 Ford F-250 Super Duty or 1999 Ford F-350 Super Duty, front position, before ordering. Match spline count, bolt circle diameter, flange dimensions, and pilot diameters to the original hub assembly. Because the ABS sensor is not included, verify whether your vehicle requires a separate sensor or reuse of existing components. Always inspect related front-end parts, fasteners, and mating surfaces during installation.

Quality Assurance

InMotion manufactures this hub assembly with high-precision processes and strict quality-control criteria. Each WA515076 unit is engineered from OE data to support proper fitment, performance, and service life in Ford F-250 Super Duty and Ford F-350 Super Duty front hub applications.
