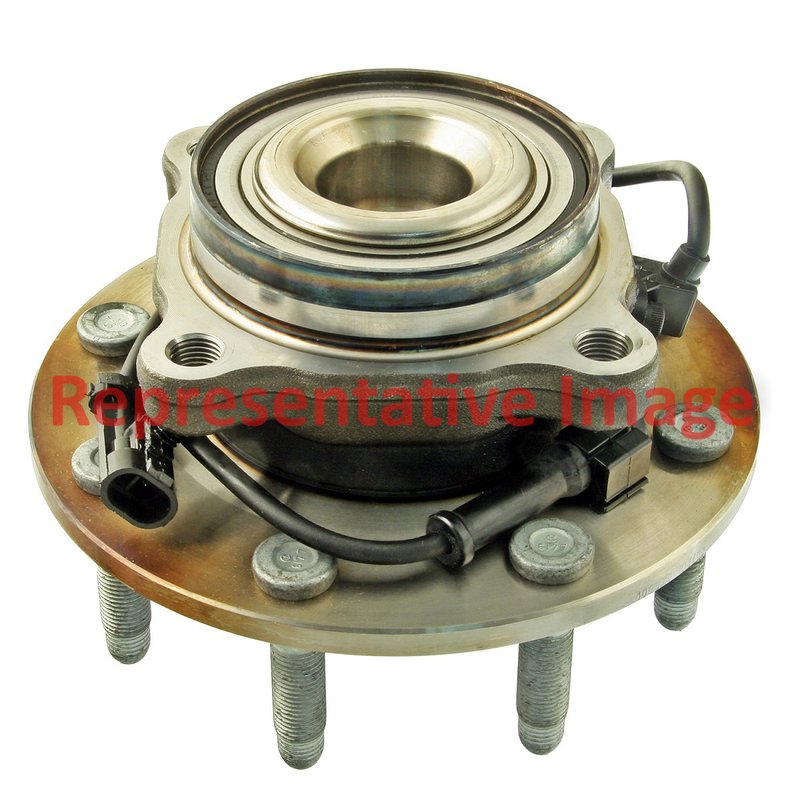

InMotion WA515081HD Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for Super Duty

InMotion WA515081HD is a new front wheel bearing and hub assembly built for 2005-2010 Ford F-250 Super Duty and 2005-2010 Ford F-350 Super Duty applications. It is engineered from OE data and measurements for direct replacement fitment, with precision manufacturing and quality control focused on fit, performance, and service life.

Key Features

• Direct replacement front hub assembly for driven applications
• Fits 2005-2010 Ford F-250 Super Duty, front
• Fits 2005-2010 Ford F-350 Super Duty, front
• 32-spline hub design with roller bearing construction
• ABS sensor included with tone ring and linear connector
• 8-bolt flange design with M14-1.5 flange bolt thread
• Wiring harness included with 44-inch length
• OE-based dimensions for proper hub pilot, flange offset, and centerbore fitment

Detailed Description

The InMotion WA515081HD wheel bearing and hub assembly is built for front axle service on Ford Super Duty trucks, including the Ford F-250 Super Duty and Ford F-350 Super Duty. It uses OE-referenced measurements to match the original mounting points, hub geometry, and ABS interface, helping restore proper wheel support and sensor operation. This part cross-references SKF BR930695 and Timken SP940200 for the same application.

Important design details include a 32-spline driven hub, roller bearing type, 203 mm flange diameter, 46 mm flange offset, 170 mm hub centerbore diameter, and an integrated ABS sensor with 60-tooth tone ring. The assembly also includes an 8-bolt flange pattern, M14-1.5 flange bolt thread, and a 44-inch wiring harness for the sensor connection. Part number WA515081HD is a direct-fit replacement for the listed front applications.

Common Issues This Part Can Address

• Wheel bearing noise from the front hub area
• ABS warning light caused by a failed hub sensor assembly
• Wheel looseness or play from worn hub components
• Uneven front-end rotation or rough bearing operation
• Loss of proper wheel support on driven front axle applications

Installation Notes and Tips

Verify the vehicle year, model, and front position before installation. Compare spline count, flange bolt pattern, ABS connector style, and hub dimensions to the original part before removal. Clean the knuckle mounting surface and inspect related fasteners, axle components, and wiring before installing the new hub assembly. After installation, confirm ABS sensor connection and check for proper wheel rotation and warning light operation.

Quality Assurance

InMotion manufactures this hub assembly using high-precision processes and strict quality-control criteria. Each WA515081HD unit is built to OE data and measurements to support correct fitment and long-term service in the specified Ford Super Duty front applications.
