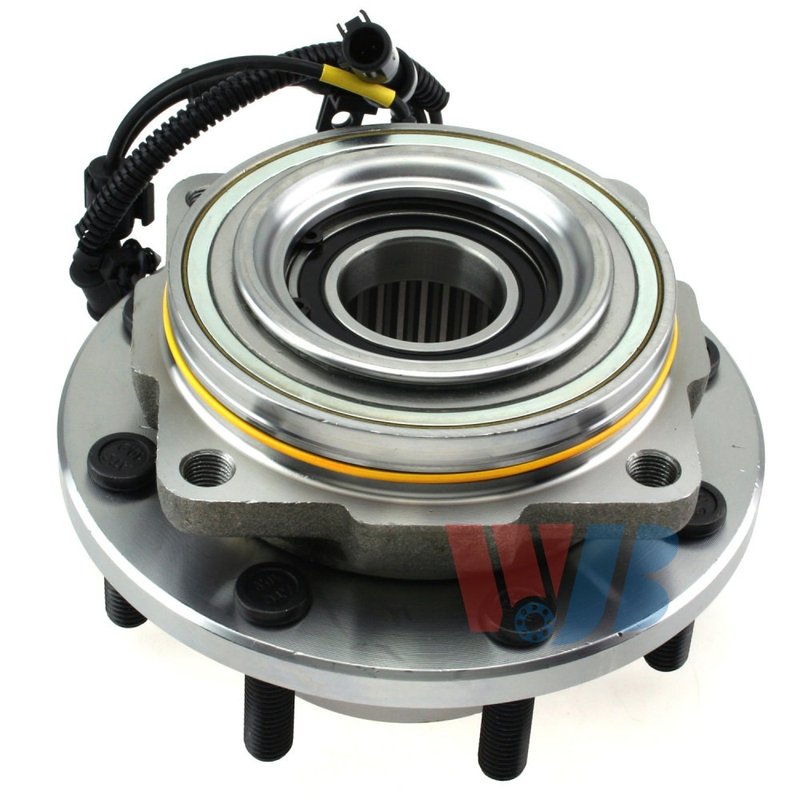

InMotion WA515082 Wheel Bearing and Hub Assembly - Front

Front Wheel Hub Assembly for Super Duty Trucks

InMotion WA515082 is a front wheel bearing and hub assembly built for select Ford Super Duty applications. It is engineered from OE data and measurements for direct replacement fitment, with precision manufacturing and quality control focused on fit, performance, and service life.

Compatible with 2005-2010 Ford F-350 Super Duty, front, and 2005-2009 Ford F-250 Super Duty, front. This InMotion hub assembly WA515082 is a practical replacement when the original front hub shows wear, noise, or ABS-related faults.

Key Features

• Front wheel bearing and hub assembly for heavy-duty Ford truck applications
• 32-spline design
• 8 wheel studs with a 4-bolt flange pattern
• ABS sensor included
• Square flange shape with 46.0 mm flange offset
• Flange diameter: 203.0 mm
• Bolt circle diameter: 170.0 mm (6.693 in.)
• Wheel pilot diameter: 124.9 mm
• Brake pilot diameter: 129.0 mm
• Hub pilot diameter: 140.0 mm

Detailed Description

InMotion WA515082 is designed as a direct replacement wheel hub assembly for the front axle on 2005-2010 Ford F-350 Super Duty and 2005-2009 Ford F-250 Super Duty models. Built using OE reference data, it is intended to match the original mounting and dimensional requirements for proper hub alignment and dependable wheel support. The integrated ABS sensor helps maintain wheel speed signal function on equipped vehicles. This part cross-references HUB154 and NHUB-37 for the same application.

Common Replacement Reasons

• Front hub bearing noise or rough rotation
• ABS warning light caused by a failing hub sensor
• Wheel looseness or vibration from hub wear
• Uneven front-end feel during braking or turning
• Corrosion or damage at the hub mounting surface

Installation Notes and Tips

Verify spline count, bolt circle, flange dimensions, and ABS sensor configuration before installation. Clean the mounting surface thoroughly and inspect related components such as the axle shaft, knuckle, and brake hardware for wear. For Ford F-250 Super Duty and Ford F-350 Super Duty front hub replacement, confirm side-specific service requirements and torque fasteners to the vehicle manufacturer’s specifications.

Quality Assurance

InMotion manufactures these hub assemblies with strict quality-control criteria and precision processes to support consistent fitment and long-term service. Each WA515082 unit is engineered for the designated application using OE measurements to help ensure proper installation and operation.
