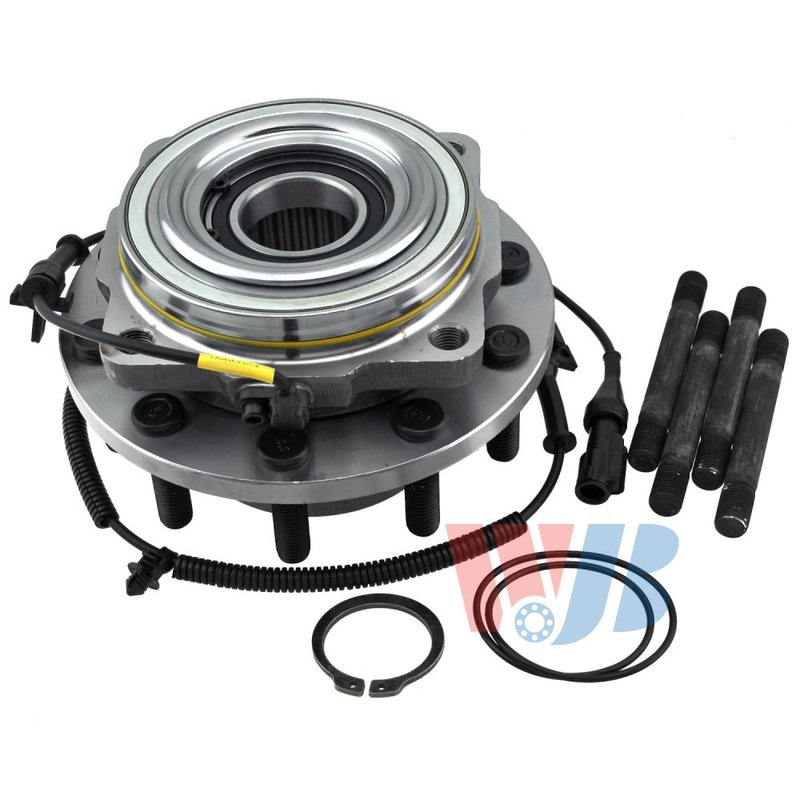

InMotion WA515083 Wheel Bearing and Hub Assembly - Front

Wheel Bearing and Hub Assembly for Heavy-Duty Service

The InMotion WA515083 wheel bearing and hub assembly is built as a direct replacement for the original hub on the listed application. It is engineered from OE data and measurements for accurate fitment, stable wheel support, and long service life.

For buyers searching for a wheel hub assembly for a Ford F-350 or similar heavy-duty driveline application, this part number WA515083 is designed around the original mounting and sensor requirements.

Key Features

• Wheel bearing and hub assembly for driveline and axle service
• 32-spline hub design
• 10 wheel studs with a 170 mm bolt circle diameter
• 4 flange bolt holes and square flange shape
• ABS sensor included
• OE-based dimensions for fitment and performance consistency
• Cross-reference: NHUB-36

Detailed Product Overview

InMotion part number WA515083 is manufactured with high-precision processes and strict quality-control standards. The hub assembly uses a 125.0 mm wheel pilot diameter, 129.0 mm brake pilot diameter, 140.0 mm hub pilot diameter, 203.0 mm flange diameter, and 46.0 mm flange offset to match the original application geometry. These measurements matter when replacing a worn wheel hub assembly on a Ford F-350 or other vehicle using the same specification.

This assembly is intended for direct replacement use where the original hub, bearing, and ABS sensor interface must be restored without changing the vehicle’s OE layout. The WA515083 part number is a practical choice for technicians and owners looking for a precise wheel bearing and hub assembly replacement.

What This Part Helps Address

• Wheel-end noise caused by a worn hub bearing
• ABS warning lights related to a failed hub sensor
• Excessive wheel play or looseness at the hub
• Uneven wheel support from a damaged hub assembly
• Fitment issues when replacing an OE-style hub on a Ford F-350

Installation Notes and Tips

Confirm spline count, bolt circle diameter, flange dimensions, and sensor configuration before installation. Because this assembly includes an ABS sensor, verify the connector and system requirements match the vehicle before final assembly. Clean the mounting surface, inspect related axle and brake components, and torque fasteners to the vehicle manufacturer’s specifications.

For fitment-based searches, this wheel bearing and hub assembly is listed for the applicable Ford F-350 configuration in the catalog data. Always match the part number WA515083 to the vehicle’s original hub specifications before ordering.

Quality Assurance

InMotion manufactures this hub assembly using OE data, precise measurements, and controlled production standards to support consistent fitment and dependable operation. The design focus is on restoring original hub function with a direct-replacement approach.
