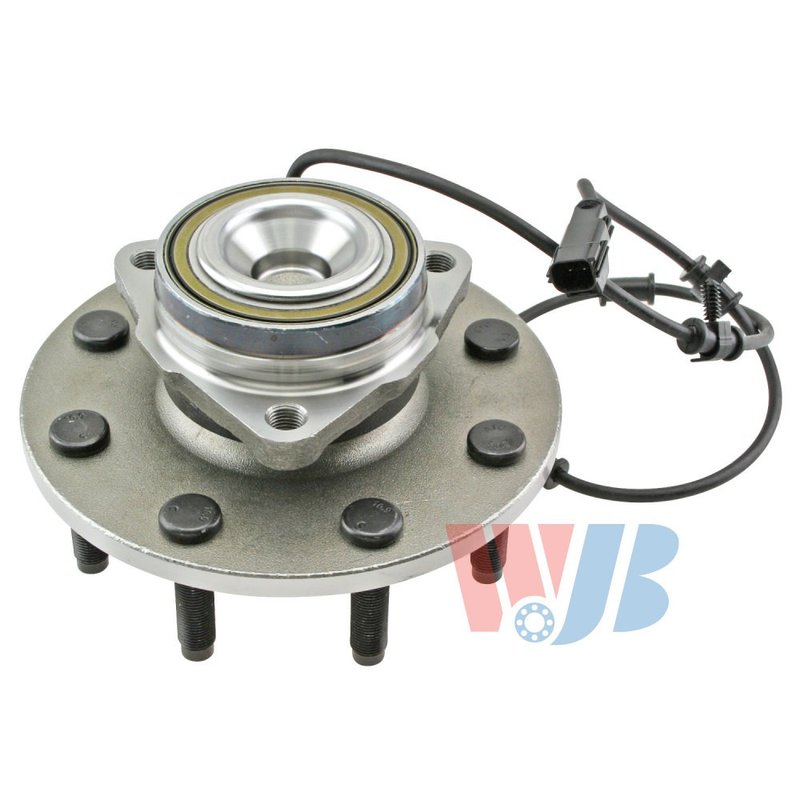

InMotion WA515089 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for Ram 2500/3500

The InMotion WA515089 is a front wheel bearing and hub assembly built for 2003-2005 Dodge Ram 2500 and 2003-2005 Dodge Ram 3500 applications. It is engineered from OE data for direct replacement fitment, with precision manufacturing and strict quality control for consistent wheel-end performance.

Key Features

• Direct replacement front hub assembly for Dodge Ram 2500 and Ram 3500
• 8 wheel studs with a 6.5-inch bolt circle diameter (165.1 mm)
• 3 flange bolt holes and triangle flange shape
• ABS sensor included
• Hub pilot diameter: 3.911 in; wheel pilot diameter: 121.0 mm
• Brake pilot diameter: 4.814 in; flange diameter: 8.091 in
• Flange offset: 1.976 in

Detailed Description

InMotion WA515089 is a front wheel bearing and hub assembly designed for 2003-2005 Dodge Ram 2500 and 2003-2005 Dodge Ram 3500 trucks. The assembly is manufactured using OE measurements to match the original mounting points, hub dimensions, and wheel interface requirements. With an integrated ABS sensor and the specified 8-stud, 6.5-inch bolt pattern, this hub assembly supports proper wheel mounting and wheel-end sensor function on the listed Ram applications. This part number, WA515089, is a direct replacement option for front hub service on these trucks.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Problems It May Address

• Front wheel bearing noise or rough rotation
• Excessive wheel play at the hub
• ABS warning light caused by a failed hub sensor assembly
• Uneven wheel mounting caused by worn hub components
• Vibration or looseness from a deteriorated front hub

Installation Notes and Tips

Verify front axle fitment before ordering. Confirm the 3-bolt flange pattern, 8-stud wheel pattern, and 6.5-inch bolt circle match the original part on your truck. Inspect the mating surfaces, axle hardware, and brake components during replacement, and torque all fasteners to the vehicle manufacturer’s specifications. For 2003-2005 Dodge Ram 2500 and 2003-2005 Dodge Ram 3500 front service, compare the removed hub to WA515089 before installation.

Quality Assurance

InMotion manufactures this hub assembly with high-precision processes and strict quality-control criteria. The part is engineered from OE data and measurements to support proper fitment, performance, and service life on the specified Ram 2500 and Ram 3500 front applications. Part number WA515089 is built as a direct replacement for the original hub assembly.
