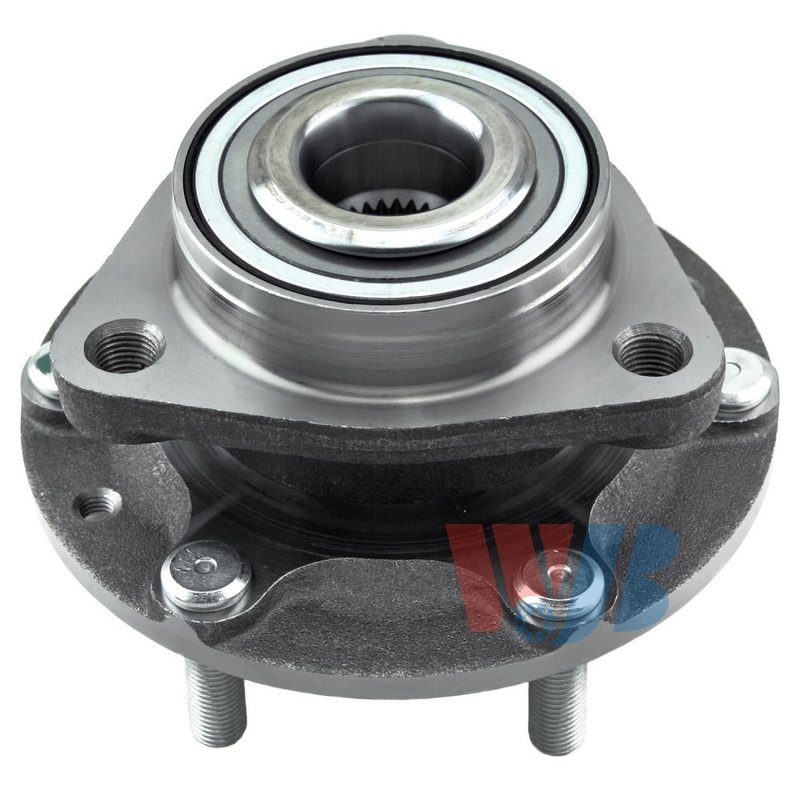

InMotion WA515090 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for Kia and Hyundai

InMotion WA515090 is a front wheel bearing and hub assembly built for direct replacement service on select Kia Sedona and Hyundai Entourage applications. It is engineered from OE data and measurements to support proper fitment, wheel mounting accuracy, and long service life.

• Front wheel bearing and hub assembly for select Kia Sedona and Hyundai Entourage models
• 31-spline design with 6 wheel studs
• 3 flange bolt holes and modified flange shape
• Wheel pilot diameter: 92.2 mm
• Brake pilot diameter: 96.2 mm
• Hub pilot diameter: 89.0 mm
• Flange diameter: 161.2 mm
• Bolt circle diameter: 139.7 mm / 5.5 in
• Flange offset: 48.2 mm
• ABS sensor not included

Fitment Details

• Fits 2014 Kia Sedona, Front, Standard Grade
• Fits 2006-2012 Kia Sedona, Front, Standard Grade
• Fits 2007-2009 Hyundai Entourage, Front, Standard Grade

This InMotion wheel bearing hub assembly WA515090 is built for the front axle on the listed vehicles and is a direct replacement style part for service work involving worn hub bearings, wheel looseness, or mounting wear. The OE-based design helps maintain correct hub geometry for the Kia Sedona and Hyundai Entourage, and the specified pilot diameters, bolt pattern, and stud count support proper wheel and brake interface. If you are replacing a front hub on a 2014 Kia Sedona, 2006-2012 Kia Sedona, or 2007-2009 Hyundai Entourage, WA515090 provides the dimensional match needed for a clean installation.

Common Problems This Part Can Address

• Front wheel bearing noise or growling from hub wear
• Excessive wheel play or looseness at the front hub
• Uneven wheel mounting caused by a worn hub assembly
• Brake rotor alignment issues related to hub wear
• Service replacement for damaged front hub mounting surfaces

Installation Notes and Tips

Confirm the vehicle year, make, model, and front position before ordering. Verify the 31-spline count, 6-stud pattern, and pilot diameters against the original part to ensure proper match. Because the ABS sensor is not included, transfer or source any required sensor components separately if your vehicle uses them. For best results, inspect related front suspension and brake components during installation and torque all fasteners to factory specifications.

Quality Assurance

InMotion manufactures this hub assembly using high-precision processes and strict quality-control criteria. Each WA515090 unit is built from OE data and measurements to support fitment, performance, and durability in the specified applications.
