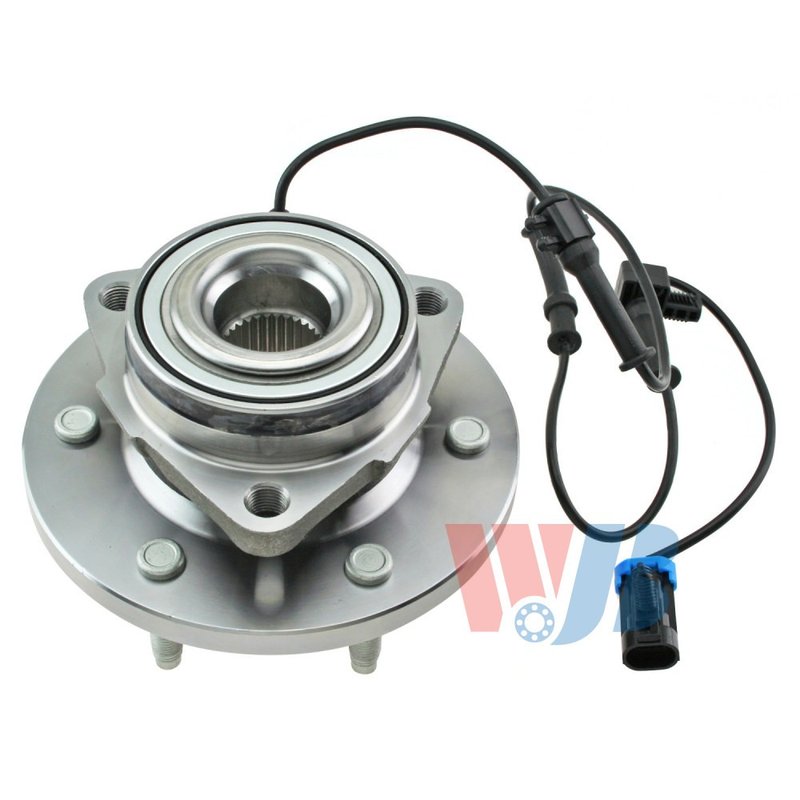

InMotion WA515093 Wheel Bearing and Hub Assembly - Front

Front Wheel Hub Assembly for Hummer H3

InMotion WA515093 is a front wheel bearing and hub assembly built for 2006-2008 Hummer H3 models. It is engineered from OE data and measurements for direct replacement fitment, with the precision needed for proper wheel support, braking performance, and long service life.

• Fits 2006-2008 Hummer H3, front
• 33-spline hub design
• 6 wheel studs with 5.5 in. bolt circle diameter
• 3 flange bolt holes and modified flange shape
• ABS sensor included
• Wheel pilot diameter: 100.0 mm
• Brake pilot diameter: 100.7 mm
• Hub pilot diameter: 99.3 mm
• Flange diameter: 177.8 mm
• Flange offset: 49.7 mm

OE-Style Fit and Construction

This InMotion wheel bearing and hub assembly is manufactured with strict quality-control standards and high-precision processes. The WA515093 is designed as a direct replacement for the original front hub assembly on the Hummer H3, using application-specific dimensions to help maintain correct wheel location and sensor integration. If you are searching for a front wheel bearing hub assembly for a 2006, 2007, or 2008 Hummer H3, WA515093 is the exact part number to verify.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Problems This Part Can Address

• Front wheel bearing noise or rough rotation
• Excessive hub play or looseness at the wheel
• ABS warning light caused by a failed hub sensor assembly
• Uneven wheel mounting caused by worn hub components
• Vibration or instability from a damaged front hub

Installation Notes

Confirm vehicle fitment by year, make, model, and front position before installation. Compare the spline count, bolt circle diameter, pilot diameters, and ABS sensor configuration to the original part before removal. Proper torque procedures and a clean mounting surface are important for accurate hub seating and reliable operation.

Quality Assurance

InMotion manufactures this hub assembly using OE-based measurements and controlled production standards to support consistent fitment and performance. Part number WA515093 is built for the specified Hummer H3 front application and is intended to meet the dimensional requirements of the original equipment design.
