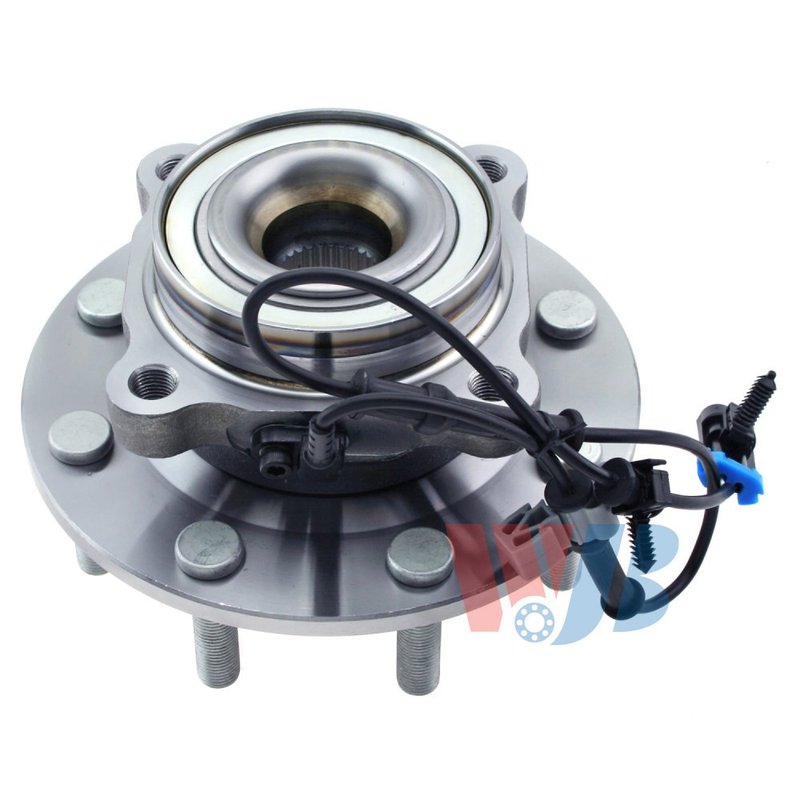

InMotion WA515099 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing and Hub Assembly for Silverado 3500 HD

InMotion WA515099 is a front wheel bearing and hub assembly built for direct replacement on select heavy-duty GM trucks. It is engineered from OE data and measurements for accurate fitment, stable wheel support, and long service life on 2007-2010 Chevrolet Silverado 3500 HD and 2007-2010 GMC Sierra 3500 HD front applications.

• Direct replacement wheel bearing and hub assembly for the front axle
• Designed for 2007-2010 Chevrolet Silverado 3500 HD and 2007-2010 GMC Sierra 3500 HD
• 33-spline hub design
• 8 wheel studs with 4 flange bolt holes
• ABS sensor included
• Modified flange shape with 58.4 flange offset
• Hub pilot diameter: 105.8 mm
• Wheel pilot diameter: 116.7 mm
• Brake pilot diameter: 117.9 mm
• Bolt circle diameter: 165.1 mm / 6.5 in

OE-Style Fit and Construction

This InMotion wheel bearing and hub assembly WA515099 is manufactured with high-precision processes and strict quality-control standards. It uses OE data and measurements to match the original application, helping maintain proper wheel location, braking interface, and ABS function on Chevrolet Silverado 3500 HD and GMC Sierra 3500 HD front hubs. This part cross-references Monroe Shocks & Struts (e.g., FW391) for the same application.

What This Hub Assembly Helps Address

• Front wheel bearing noise or rough rotation
• Excessive hub play or looseness
• ABS warning light concerns related to the hub sensor
• Uneven wheel support at the front axle
• Replacement needs after hub wear or damage

Installation Notes and Tips

Verify front axle fitment, spline count, bolt pattern, and ABS sensor connection before installation. Confirm the hub pilot, wheel pilot, and brake pilot dimensions match the vehicle specification. For best results, inspect related components such as the axle shaft, brake hardware, and mounting surfaces during service.

Quality Assurance

InMotion manufactures this hub assembly under strict quality-control criteria and designs it as a direct OE-style replacement using application-specific measurements for fitment, performance, and durability.
