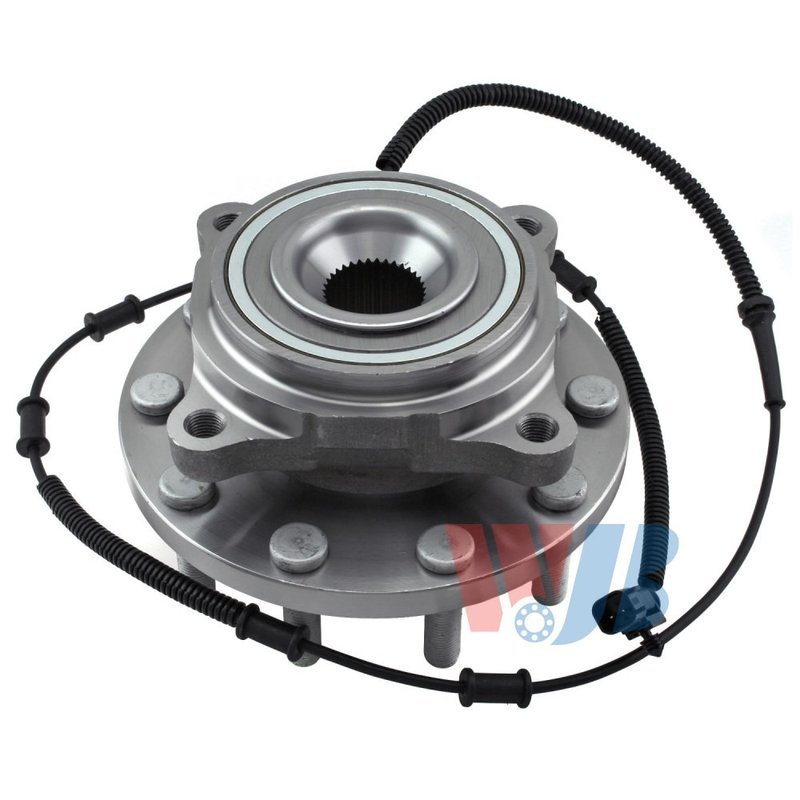

InMotion WA515102 Wheel Bearing and Hub Assembly - Front

Wheel Bearing and Hub Assembly for OE-Style Replacement

InMotion WA515102 is a wheel bearing and hub assembly built for direct replacement use in the designated application. It is manufactured from OE data and measurements, with precision machining and quality-control standards aimed at proper fit, stable wheel support, and long service life.

For buyers searching for a wheel hub assembly, hub bearing assembly, or ABS wheel bearing hub replacement, WA515102 provides the core dimensions and sensor integration needed for a correct service part. This part number, WA515102, is built around the hub specifications that matter most during installation and fitment verification.

Key Features

• Wheel bearing and hub assembly for driveline and axle service
• 35-spline hub design
• 10 wheel studs with a 4-hole flange bolt pattern
• ABS sensor included
• Flange shape: square
• Flange offset: 56.2 mm
• Flange diameter: 200.0 mm
• Bolt circle diameter: 170.0 mm (6.685 in.)
• Wheel pilot diameter: 121.0 mm
• Brake pilot diameter: 125.0 mm
• Hub pilot diameter: 140.0 mm

Detailed Description

InMotion WA515102 is engineered as an OE-style wheel hub assembly for vehicles that require a 35-spline hub with integrated ABS sensing. The assembly is manufactured using application-specific OE measurements to support correct wheel mounting, brake alignment, and sensor function. Its 10-stud layout, 4-bolt flange, and 170.0 mm bolt circle diameter are important identifiers for matching the correct hub to the vehicle.

Search terms such as rear wheel bearing hub assembly, ABS hub assembly replacement, and direct-fit wheel hub for truck and SUV driveline service often point to parts like WA515102. If you are comparing hub dimensions for a make/model repair, this part number, WA515102, should be checked against the vehicle’s original hub specifications before ordering. Compatible With select make/model applications where the listed spline count, pilot diameters, and bolt pattern match the original equipment.

What This Part Helps Address

• Wheel bearing noise from a worn hub assembly
• ABS warning light caused by a failed hub sensor
• Wheel looseness or play at the hub
• Uneven wheel mounting from damaged studs or flange wear
• Brake and wheel fitment issues tied to incorrect hub dimensions

Installation Notes and Tips

Verify spline count, bolt circle diameter, flange offset, and pilot diameters against the original part before installation. Confirm the ABS sensor connection and mounting style match the vehicle’s existing setup. For best results, inspect related components such as the axle shaft, knuckle, and brake hardware for wear before installing the new hub assembly.

Fits 2006-2011 Honda Civic, front right. Fits 2006-2011 Honda Civic, front left. Fits 2006-2011 Honda Civic, rear. Fits 2007-2012 Toyota Camry, front. Fits 2007-2012 Toyota Camry, rear.

Quality Assurance

InMotion manufactures this hub assembly with strict quality-control criteria and OE-based measurements to support consistent fitment and performance. The part is built as a direct replacement for the original component in the designated application.
