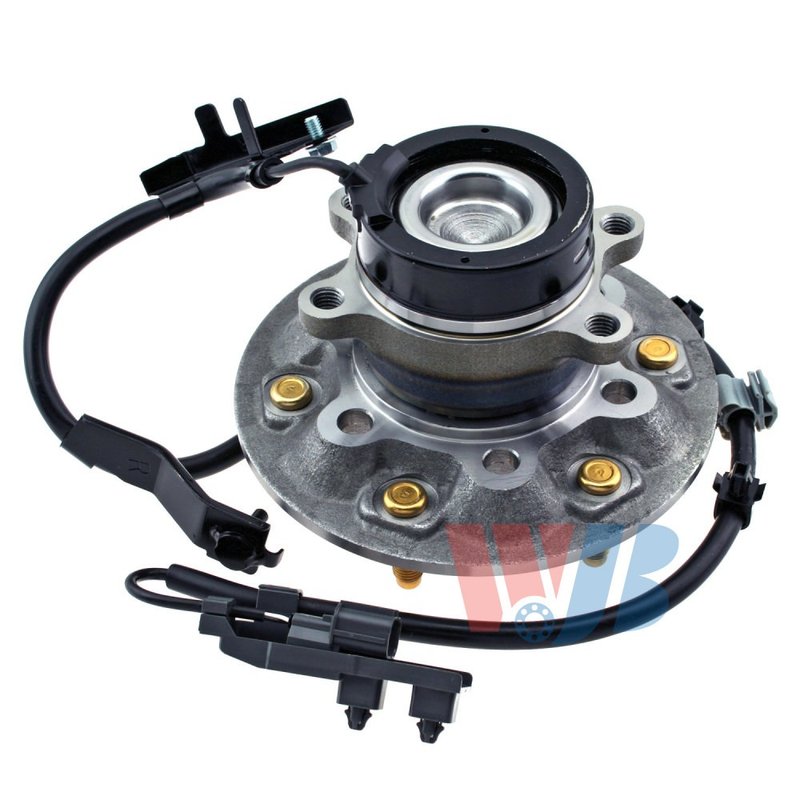

InMotion WA515105 Wheel Bearing and Hub Assembly - Front Right

Front Right Wheel Bearing Hub Assembly

InMotion WA515105 is a front right wheel bearing and hub assembly built for direct replacement on select Chevrolet, GMC, and Isuzu applications. It is engineered from OE data and measurements to match the original fit, mounting points, and operating requirements for the listed vehicles.

• Direct replacement wheel bearing and hub assembly for the front right position
• Fits 2004-2008 Chevrolet Colorado, front right
• Fits 2004-2008 GMC Canyon, front right
• Fits 2007-2008 Isuzu i-290, front right
• Fits 2007-2008 Isuzu i-370, front right
• Fits 2006 Isuzu i-280, front right
• 6 wheel studs with 5.5 in. bolt circle diameter (139.7 mm)
• Integrated ABS sensor included
• Rectangle flange shape with 3 flange bolt holes
• Wheel pilot diameter: 99.5 mm; hub pilot diameter: 85.0 mm
• Brake pilot diameter: 100.1 mm; flange diameter: 184.2 mm
• Flange offset: 67.3 mm

Built for OE-Style Fitment

This InMotion hub assembly is manufactured with high-precision processes and strict quality-control standards to support consistent fitment and long service life. The WA515105 is specified as a direct replacement for the original part on the listed Chevrolet Colorado, GMC Canyon, and Isuzu front right applications, with dimensions and sensor integration matched to the OE design.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Replacement Reasons

• Wheel bearing noise from the front right hub area
• ABS warning light caused by a failed hub sensor or bearing assembly
• Excessive wheel play or looseness at the hub
• Uneven braking feel related to hub wear or damage
• Vibration or rough rotation from a worn front hub assembly

Installation Notes

Verify wheel stud count, bolt circle diameter, pilot diameters, and ABS sensor configuration before installation. Confirm the front right position and compare the original hub dimensions to WA515105 prior to assembly. Proper torque procedures and a clean mounting surface are important for accurate seating and reliable operation.

Quality Assurance

InMotion manufactures this hub assembly using OE data and measurements to help ensure correct fitment, performance, and durability for the listed vehicles. The part is produced under strict quality-control criteria and is intended as a direct replacement for the original wheel bearing and hub assembly.
