Home› Driveline and Axles > Hubs and Related Components› InMotion WA515105HD Wheel Bearing and Hub Assembly - Front Right
InMotion WA515105HD Wheel Bearing and Hub Assembly - Front RightOE Quality 60-Day Returns
InMotion WA515105HD Wheel Bearing and Hub Assembly - Front Right - view 1
InMotion WA515105HD Wheel Bearing and Hub Assembly - Front Right - view 2
InMotion WA515105HD Wheel Bearing and Hub Assembly - Front Right - view 3
InMotion WA515105HD Wheel Bearing and Hub Assembly - Front Right - view 4
Part #: WA515105HD

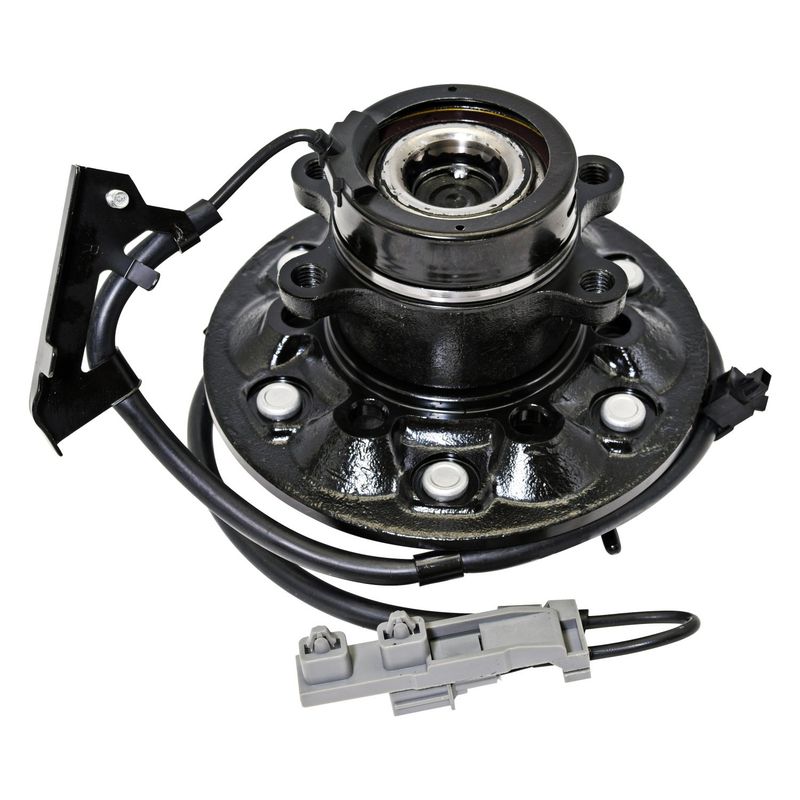

InMotion WA515105HD Wheel Bearing and Hub Assembly - Front Right

Front Right
⚙️ 15 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$158.38Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
🚗Fitment: Chevrolet, GMC, and Isuzu, Canyon, Colorado, i-280, i-290, and i-370
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Wheel Bearing and Hub Assembly options
InMotion WA515105HD Wheel Bearing and Hub Assembly - Front Right
BrandInMotion
Part NumberWA515105HD
Hub Pilot Diameter3.94
Hub Pilot Diameter99.95
Flange ShapeCircle
Anti Lock Brake Sensor IncludedYes
Bearing TypeRoller
Flange Offset2.64
Flange Offset67
Flange Diameter183.9
Flange Diameter7.24
Abs Connector ShapeLinear
Abs Ring TypeTone ring
Driven Or Non-drivenNon-driven
Flange Bolt Size (in)0.47
Flange Bolt Size (mm)12
Flange Bolt Thread SizeM12-1.5
Hub Centerbore Diameter (in)5.5
Hub Centerbore Diameter (mm)139.80000000000001
Lug Bolt Thread SizeM12-1.75
New Or RemanufacturedNew
Number Of Abs Sensor Ring Teeth50
Number Of Flange Bolts Included6
Number Of Lug Bolts Included0
Number Of Mounting Bolts To Knuckle4
Wiring Harness IncludedYes
Wiring Harness Length (in)33

This part fits 15 vehicles. Search below:

YearMakeModelSubmodelDrive TypePositionNotes
2008ChevroletColoradoRWDFront RightPremium Grade
2008GMCCanyonRWDFront RightPremium Grade
2008Isuzui-290Front RightPremium Grade
2008Isuzui-370RWDFront RightPremium Grade
2007ChevroletColoradoRWDFront RightPremium Grade
2007GMCCanyonRWDFront RightPremium Grade
2007Isuzui-290Front RightPremium Grade
2007Isuzui-370RWDFront RightPremium Grade
2006ChevroletColoradoRWDFront RightPremium Grade
2006GMCCanyonRWDFront RightPremium Grade
2006Isuzui-280Front RightPremium Grade
2005ChevroletColoradoZ71RWDFront RightPremium Grade
2005GMCCanyonZ85 SLRWDFront RightPremium Grade
2004ChevroletColoradoSport LSRWDFront RightPremium Grade
2004GMCCanyonZ85 SLERWDFront RightPremium Grade

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

15178881515105BR930702HA590062

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
