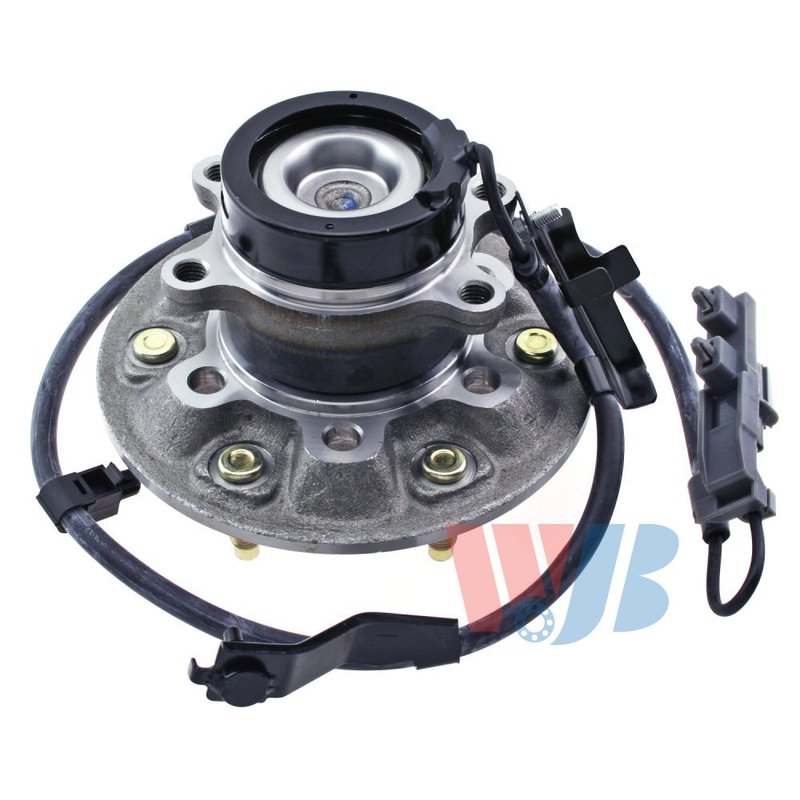

InMotion WA515106 Wheel Bearing and Hub Assembly - Front Left

Front Left Wheel Bearing and Hub Assembly

The InMotion WA515106 is a front left wheel bearing and hub assembly built for direct replacement service on select Chevrolet, GMC, and Isuzu trucks and SUVs. It is engineered from OE data and measurements to match the original fit, mounting points, and operating dimensions for the listed applications.

Compatible with 2004-2008 Chevrolet Colorado front left, 2006-2008 GMC Canyon front left, 2007-2008 Isuzu i-290 front left, and 2006 Isuzu i-280 front left.

• Part number: WA515106
• Wheel bearing and hub assembly for front left installation
• 6 wheel studs
• 3 flange bolt holes
• ABS sensor included
• Bolt circle diameter: 139.7 mm / 5.5 in
• Flange diameter: 184.2 mm
• Flange offset: 67.4
• Wheel pilot diameter: 99.5
• Brake pilot diameter: 100.2
• Hub pilot diameter: 85.0
• Rectangle flange shape

OE-Style Fitment and Construction

InMotion WA515106 is manufactured with high-precision processes and strict quality-control standards to support consistent fitment and long service life. The assembly is built for the specified front left applications on Chevrolet Colorado, GMC Canyon, and the related Isuzu i-290 and i-280 platforms, using OE reference data to align the hub, bearing, and sensor interface dimensions.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What This Part Helps Address

• Front wheel bearing noise or growling from the hub area
• Excessive wheel play or looseness at the front left corner
• ABS warning light concerns related to a failed hub sensor assembly
• Uneven hub rotation or rough bearing feel during service inspection
• Replacement needs after hub wear on Chevrolet Colorado or GMC Canyon front left applications

Installation Notes and Tips

Verify the vehicle’s front left position, bolt pattern, and sensor connection before installation. Confirm the 6-stud hub layout, 139.7 mm bolt circle, and pilot diameters against the original part to ensure proper alignment on the Chevrolet Colorado, GMC Canyon, Isuzu i-290, or Isuzu i-280 application.

Inspect the mating surfaces, axle end, and knuckle for wear or damage before installing the new hub assembly. Follow factory torque specifications and service procedures for the vehicle being repaired.

Quality Assurance

InMotion manufactures this hub assembly using OE-based measurements and controlled production standards to support accurate fitment and dependable performance in the listed applications.
