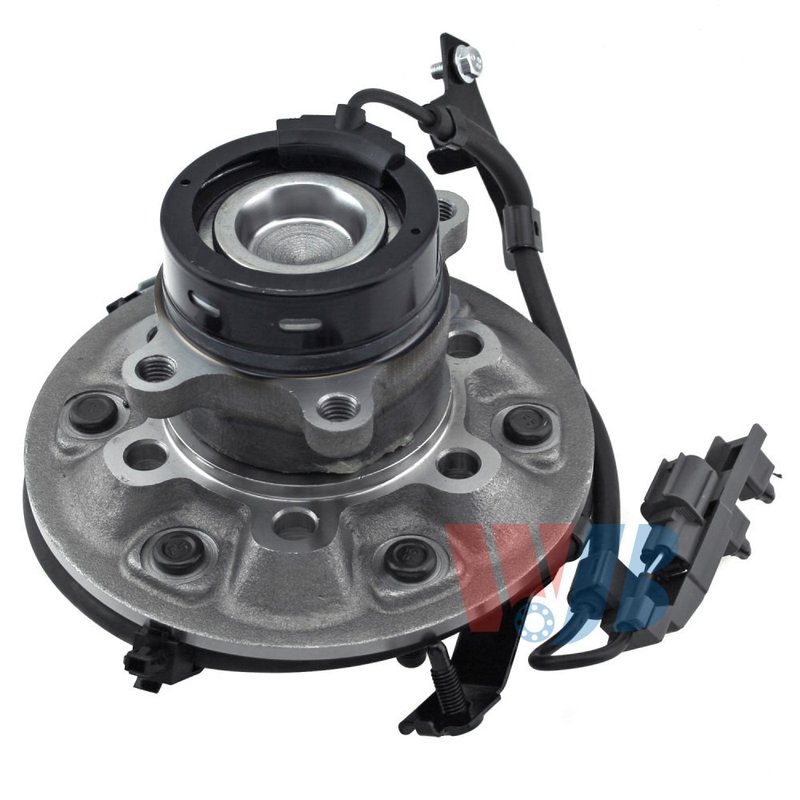

InMotion WA515107HD Wheel Bearing and Hub Assembly - Front Right

Front Right Wheel Bearing Hub Assembly

The InMotion WA515107HD is a front right wheel bearing and hub assembly built for direct replacement service on select Chevrolet, GMC, and Isuzu trucks and SUVs. It is engineered from OE data and measurements for accurate fitment, stable wheel support, and consistent bearing performance.

For 2004-2008 Chevrolet Colorado front right, 2006-2008 GMC Canyon front right, and select Isuzu i-280, i-290, and i-370 front right applications, this hub assembly is built to match the original mounting and sensor requirements. The WA515107HD is a practical choice when replacing a worn hub on the front right corner.

Key Features

• Part number: WA515107HD
• Wheel bearing and hub assembly for the front right position
• Anti-lock brake sensor included
• 6 wheel studs
• 3 flange bolt holes
• Bolt circle diameter: 139.7 mm / 5.5 in
• Hub pilot diameter: 85.1 mm
• Wheel pilot diameter: 99.5 mm
• Brake pilot diameter: 100.0 mm
• Flange diameter: 184.2 mm
• Flange offset: 67.1 mm
• Rectangle flange shape

Detailed Description

InMotion WA515107HD is manufactured as a precision hub assembly using strict quality-control standards and OE-based measurements. The design supports direct replacement service for the original front right hub on 2004-2008 Chevrolet Colorado, 2006-2008 GMC Canyon, 2006 Isuzu i-280, 2007-2008 Isuzu i-290, and 2007-2008 Isuzu i-370. The integrated ABS sensor helps maintain proper wheel speed signal function where equipped, and the hub geometry is matched to the listed applications for correct mounting and wheel interface.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Replacement Reasons

• Front wheel bearing noise or growling
• Excessive play in the hub or wheel end
• ABS warning light related to a failed hub sensor
• Uneven wheel rotation or vibration from hub wear
• Damaged wheel studs or mounting surfaces

Installation Notes

Verify the vehicle year, make, model, and front right position before installation. Confirm the bolt circle, flange dimensions, and ABS sensor connection match the original part. Clean the mounting surface thoroughly and inspect related brake and suspension components while the hub is removed. Torque all fasteners to the vehicle manufacturer’s specifications.

Quality Assurance

InMotion manufactures this hub assembly with OE data, precise measurements, and strict quality-control criteria to support fitment, performance, and service life on the listed applications.
