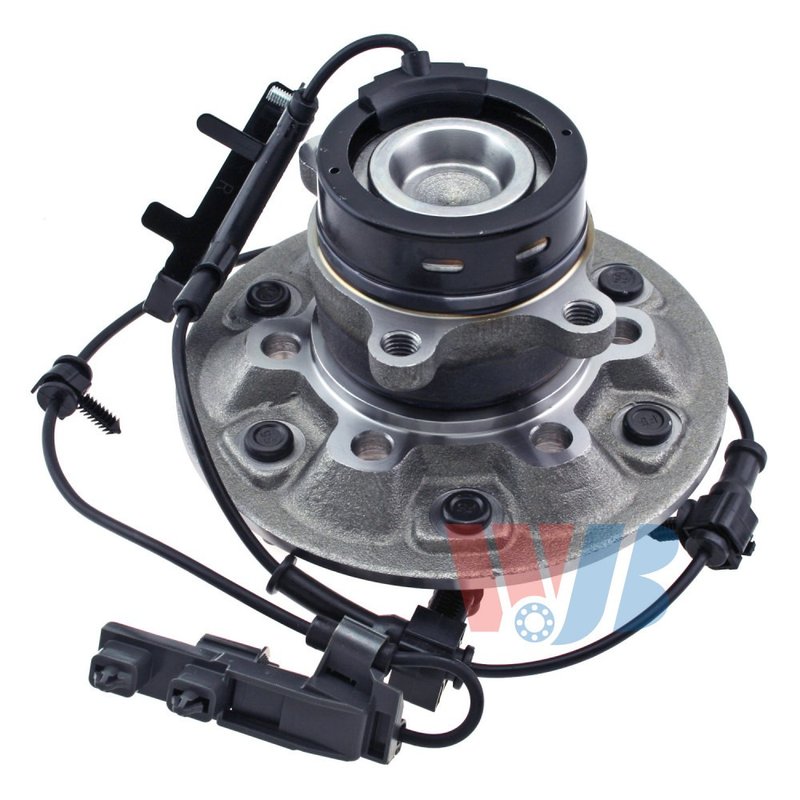

InMotion WA515109 Wheel Bearing and Hub Assembly - Front Right

Front Right Wheel Hub Assembly for Colorado and Canyon

The InMotion WA515109 wheel bearing and hub assembly is a direct replacement for the front right position on select Chevrolet Colorado and GMC Canyon models. Built from OE data and measurements, it is engineered for proper fitment, stable wheel support, and long service life.

For 2004-2008 Chevrolet Colorado and 2004-2008 GMC Canyon front right applications, this hub assembly is built to match the original mounting and sensor requirements. The WA515109 is a practical choice when replacing a worn wheel hub assembly on standard grade trucks.

Key Features

• Part number: WA515109
• Fits 2004-2008 Chevrolet Colorado, front right
• Fits 2004-2008 GMC Canyon, front right
• 6 wheel studs and 4 flange bolt holes
• ABS sensor included
• Flange diameter: 203.0 mm
• Bolt circle diameter: 169.8 mm / 6.685 in
• Wheel pilot diameter: 124.8 mm
• Brake pilot diameter: 129.0 mm
• Hub pilot diameter: 114.0 mm
• Flange offset: 55.1 mm
• Modified flange shape

Detailed Description

InMotion WA515109 is a wheel bearing and hub assembly manufactured with precision processes and strict quality-control standards. It is designed as a direct replacement for the original front right hub on the Chevrolet Colorado and GMC Canyon, using OE-based dimensions to support correct fitment and dependable operation. The integrated ABS sensor helps maintain the factory-style wheel speed signal on equipped vehicles. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Replacement Reasons

• Wheel bearing noise from the front right hub area
• Excessive wheel play or looseness
• ABS warning light related to hub sensor failure
• Uneven wheel support or vibration at the hub
• Corrosion or wear at the hub mounting surface

Installation Notes

Verify front right fitment by year, make, model, and brake/sensor configuration before installation. Clean the mounting surface thoroughly, inspect related suspension and brake components, and torque all fasteners to the vehicle manufacturer’s specifications. Confirm ABS connector routing and sensor alignment during installation.

Quality Assurance

InMotion manufactures this hub assembly using OE data, precise measurements, and controlled production standards to support consistent fit and performance for the listed Chevrolet Colorado and GMC Canyon applications.
