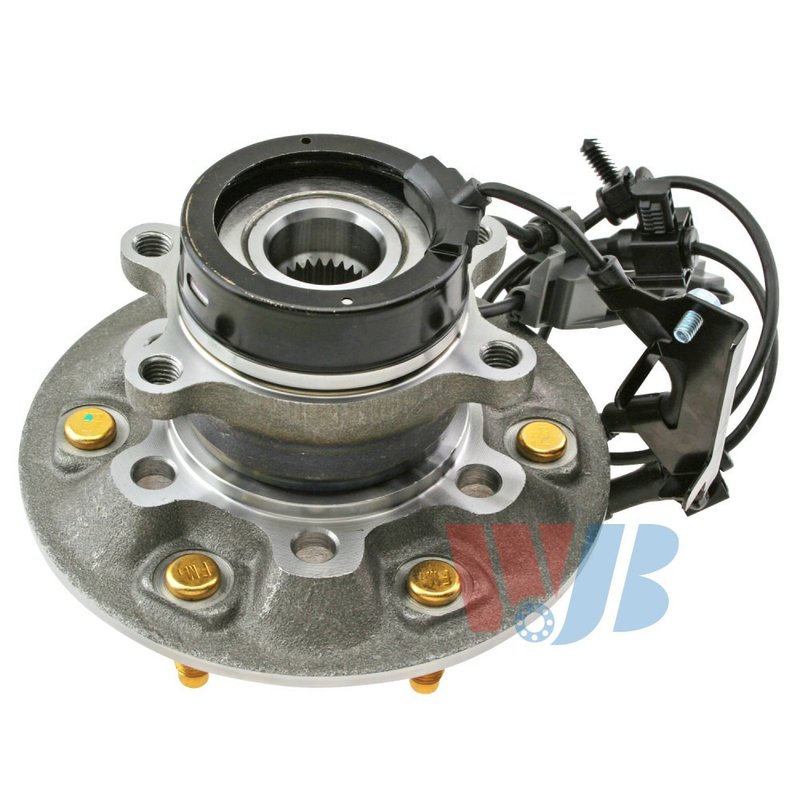

InMotion WA515110 Wheel Bearing and Hub Assembly - Front Left

Front Left Wheel Hub Assembly for Colorado, Canyon, i-370

The InMotion WA515110 wheel bearing and hub assembly is a direct replacement for the front left position on select Chevrolet, GMC, and Isuzu trucks. Built from OE data and measurements, it is engineered for proper fitment, stable wheel support, and long service life.

• Part number: WA515110
• Wheel bearing and hub assembly for the front left position
• 27-spline design
• 6 wheel studs with 4 flange bolt holes
• Integrated ABS sensor included
• Bolt circle diameter: 139.7 mm / 5.5 in
• Flange diameter: 184.2 mm
• Hub pilot diameter: 85.0 mm
• Wheel pilot diameter: 99.5 mm
• Brake pilot diameter: 100.1 mm
• Flange offset: 67.4 mm
• Rectangle flange shape

Fitment Details

Compatible with the following applications:

• Fits 2004-2008 Chevrolet Colorado, front left, Standard Grade
• Fits 2004-2008 GMC Canyon, front left, Standard Grade
• Fits 2007-2008 Isuzu i-370, front left, Standard Grade
• Fits 2006 Isuzu i-350, front left, Standard Grade

Product Overview

InMotion WA515110 is manufactured using high-precision processes and strict quality-control standards to match the original hub assembly dimensions and performance requirements. This front left wheel hub assembly is built for Chevrolet Colorado, GMC Canyon, and select Isuzu models, making it a practical OE-style replacement when the original hub shows wear, noise, or ABS-related issues. The WA515110 is designed around the specified spline count, bolt pattern, pilot diameters, and integrated sensor configuration for accurate installation and dependable operation.

Common Replacement Reasons

• Wheel bearing noise from the front left hub area
• ABS warning light caused by a failing hub sensor
• Excessive wheel play or looseness at the hub
• Uneven rotor or wheel mounting issues related to hub wear
• Restoring proper front-end wheel support on Colorado, Canyon, or Isuzu i-370/i-350 models

Installation Notes

Confirm the front left position, spline count, bolt circle diameter, and sensor configuration before installation. Compare the existing hub dimensions and mounting pattern to WA515110 to verify fitment on your Chevrolet Colorado, GMC Canyon, or Isuzu application. Professional installation is recommended, and the wheel bearing area should be inspected for related wear before reassembly.

Quality Assurance

InMotion manufactures this hub assembly with OE-based measurements and controlled production standards to support consistent fit and performance. The part is built as a direct replacement for the original hub assembly on the listed applications.
