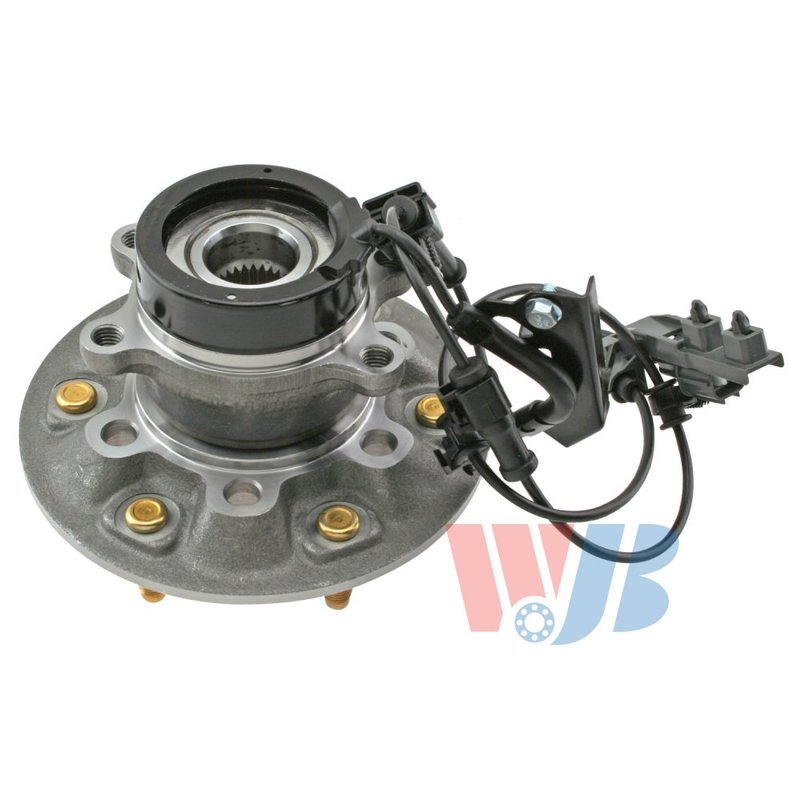

InMotion WA515111 Wheel Bearing and Hub Assembly - Front Right

Front Right Wheel Hub Assembly

The InMotion WA515111 wheel bearing and hub assembly is a direct replacement for the front right position on select Chevrolet Colorado, GMC Canyon, Isuzu i-370, and Isuzu i-350 applications. Built from OE data and measurements, it is engineered for accurate fitment, stable wheel support, and long service life.

For buyers searching for a front right wheel hub assembly for 2004-2008 Chevrolet Colorado or 2004-2008 GMC Canyon, WA515111 provides the application-specific dimensions needed for a proper replacement.

• Direct replacement wheel bearing and hub assembly for the front right side
• 27-spline design
• 6 wheel studs with a 4-hole flange bolt pattern
• Integrated ABS sensor included
• Wheel pilot diameter: 99.5 mm
• Brake pilot diameter: 100.1 mm
• Hub pilot diameter: 85.0 mm
• Bolt circle diameter: 139.7 mm / 5.5 in
• Flange diameter: 184.2 mm with 67.4 mm offset
• Rectangle flange shape

Fitment Details

• Fits 2004-2008 Chevrolet Colorado, front right, Standard Grade
• Fits 2004-2008 GMC Canyon, front right, Standard Grade
• Fits 2007-2008 Isuzu i-370, front right, Standard Grade
• Fits 2006 Isuzu i-350, front right, Standard Grade

What This Part Helps Address

• Wheel bearing noise from a worn hub assembly
• Front wheel looseness or play at the hub
• ABS warning light concerns related to a failed hub sensor
• Uneven wheel rotation caused by hub wear
• Vibration or roughness from a damaged front right hub

Installation Notes and Tips

Confirm the vehicle year, make, model, and front right position before installation. Compare the spline count, bolt circle diameter, flange dimensions, and ABS sensor configuration to the original part to verify match-up. Professional installation is recommended, and the wheel bearing and hub assembly should be torqued to the vehicle manufacturer’s specifications.

Quality Assurance

InMotion manufactures this hub assembly using high-precision processes and strict quality-control criteria. Each WA515111 unit is built to follow OE data and measurements for fit, performance, and durability in the listed Chevrolet Colorado, GMC Canyon, and Isuzu applications.
