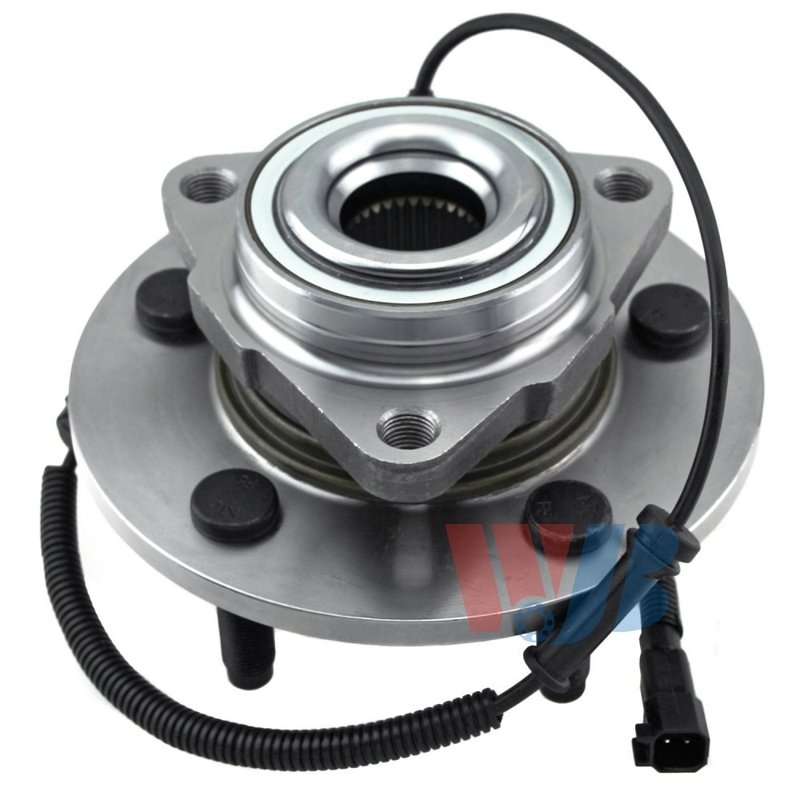

InMotion WA515113HD Wheel Bearing and Hub Assembly - Front
Front Wheel Hub Assembly for Ram 1500
InMotion WA515113HD is a new front wheel bearing and hub assembly built for 2006-2009 Dodge Ram 1500 trucks. It is engineered from OE data and measurements for direct replacement fitment, with a roller bearing design, integrated ABS sensor, and wiring harness included.
Key Features
- Fits 2006-2009 Dodge Ram 1500, front
- Part number: WA515113HD
- New wheel bearing and hub assembly
- Driven hub design with 33 splines
- Integrated ABS sensor with tone ring and 55 teeth
- Roller bearing construction
- 5-bolt flange with 3-bolt knuckle mounting pattern
- Wiring harness included, 32 in. length
- Hub pilot diameter: 3.09 in. (78.4 mm)
- Flange diameter: 7.2 in. (183 mm)
Detailed Description
InMotion WA515113HD is designed as a direct replacement wheel hub assembly for the front of the Dodge Ram 1500. Built using high-precision manufacturing and strict quality-control standards, it follows OE data and measurements to support proper fitment, stable wheel support, and long service life. The assembly includes an ABS sensor, linear connector, tone ring, and wiring harness, making it a complete front hub solution for trucks that require integrated wheel speed sensing. This part cross-references SKF BR930690 for the same application.
Common Repair Applications
- Front wheel bearing noise or roughness
- ABS warning light caused by hub sensor issues
- Wheel play from a worn hub assembly
- Vibration or looseness at the front wheel end
- Replacement after hub or bearing wear on a Dodge Ram 1500
Installation Notes and Tips
Confirm front axle and ABS connector details before installation. Match the 33-spline driven hub configuration, 5-bolt flange pattern, and 3-bolt knuckle mounting points to the original part. Clean the mounting surface, inspect related suspension and brake components, and torque fasteners to factory specifications during installation.
Quality Assurance
InMotion manufactures this hub assembly with precision processes and strict quality-control criteria. The part is new and built to OE-based dimensions for consistent fitment on 2006-2009 Dodge Ram 1500 front applications. Part number WA515113HD is also referenced by OE-style replacement listings for the same vehicle application.
| Brand | InMotion |
| Part Number | WA515113HD |
| Spline Quantity | 33 |
| Hub Pilot Diameter | 3.09 |
| Hub Pilot Diameter | 78.400000000000006 |
| Flange Shape | Circle |
| Anti Lock Brake Sensor Included | Yes |
| Bearing Type | Roller |
| Flange Offset | 1.84 |
| Flange Offset | 46.8 |
| Flange Diameter | 183 |
| Flange Diameter | 7.2 |
| Abs Connector Shape | Linear |
| Abs Ring Type | Tone ring |
| Driven Or Non-driven | Driven |
| Flange Bolt Size (in) | 0.56000000000000005 |
| Flange Bolt Size (mm) | 14.28 |
| Flange Bolt Thread Size | 9/16"-18 |
| Hub Centerbore Diameter (in) | 5.5 |
| Hub Centerbore Diameter (mm) | 139.69999999999999 |
| Lug Bolt Thread Size | M14-1.5 |
| New Or Remanufactured | New |
| Number Of Abs Sensor Ring Teeth | 55 |
| Number Of Flange Bolts Included | 5 |
| Number Of Lug Bolts Included | 0 |
| Number Of Mounting Bolts To Knuckle | 3 |
| Wiring Harness Included | Yes |
| Wiring Harness Length (in) | 32 |
This part fits 4 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2009 | Dodge | Ram 1500 | Front | Premium Grade |
| 2008 | Dodge | Ram 1500 | Front | Premium Grade |
| 2007 | Dodge | Ram 1500 | Front | Premium Grade |
| 2006 | Dodge | Ram 1500 | Front | Premium Grade |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
