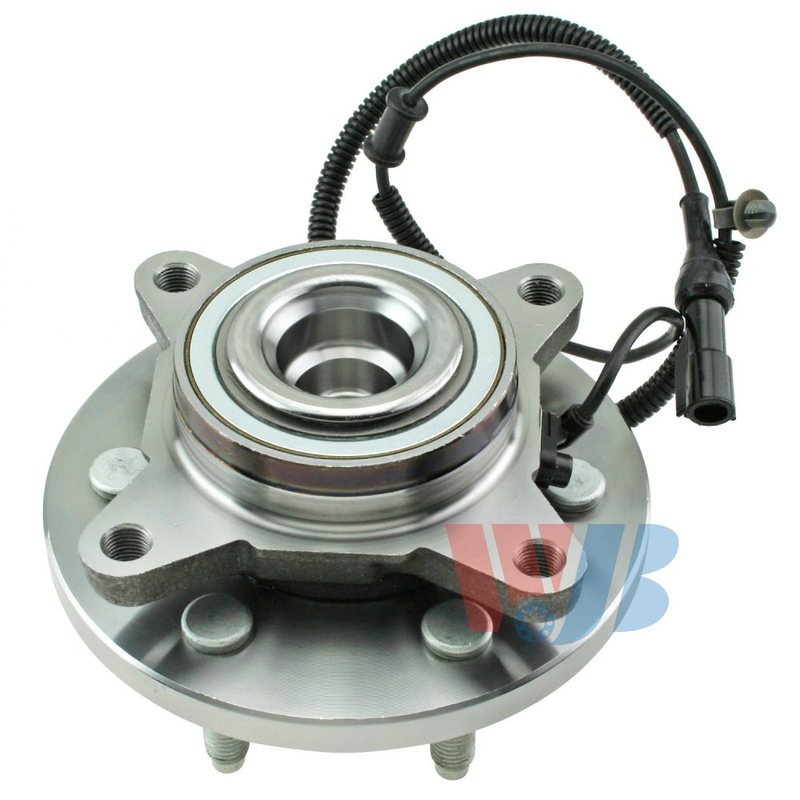

InMotion WA515117 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for Ford F-150

The InMotion WA515117 wheel bearing and hub assembly is built for the front position on 2009-2010 Ford F-150 Standard Grade applications. It is engineered from OE data and measurements for direct replacement fitment, with precision manufacturing and quality control focused on fit, performance, and service life.

For buyers searching for a front wheel hub assembly for 2009-2010 Ford F-150 models, WA515117 provides the correct hub geometry, integrated ABS sensor, and application-specific dimensions needed for a proper repair.

Key Features

• Direct replacement wheel bearing and hub assembly for the front axle
• Fits 2009-2010 Ford F-150, front
• Integrated anti-lock brake sensor included
• 6 wheel studs with a 5.315 bolt circle diameter
• 4 flange bolt holes with a modified flange shape
• OE-based design for dimensional accuracy and consistent fitment
• Part number WA515117 for catalog and search reference

Detailed Description

InMotion WA515117 is a front wheel bearing hub assembly designed for 2009-2010 Ford F-150 Standard Grade trucks. The assembly uses OE data and measurements to match the original application, helping ensure correct hub pilot, wheel pilot, brake pilot, flange offset, and bolt pattern dimensions. Key specifications include an 86.8 wheel pilot diameter, 90.0 brake pilot diameter, 99.3 hub pilot diameter, 183.0 flange diameter, and 45.6 flange offset. The integrated ABS sensor supports vehicles equipped with wheel speed sensing at the hub. If you are replacing a worn front hub on a Ford F-150, WA515117 is a direct-fit option built around the original vehicle requirements.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Repair Symptoms

• Front wheel bearing noise, humming, or growling
• ABS warning light related to the wheel speed sensor circuit
• Excessive wheel play or looseness at the hub
• Uneven braking feel caused by hub wear or sensor issues
• Vibration or roughness from the front wheel end

Installation Notes and Tips

Confirm the vehicle is a 2009-2010 Ford F-150, front application before ordering. Compare the hub pilot, wheel pilot, brake pilot, bolt circle diameter, and flange dimensions to the original part during removal. Clean the mounting surface thoroughly and inspect related components such as the axle nut, knuckle, and brake hardware for wear before installation. After installation, verify ABS operation and check for proper wheel rotation and end play.

Quality Assurance

InMotion manufactures this hub assembly using high-precision processes and strict quality-control criteria. The part is engineered from OE data and measurements to support accurate fitment, dependable performance, and long-term durability in the specified Ford F-150 front application.
