OE Quality
60-Day Returns

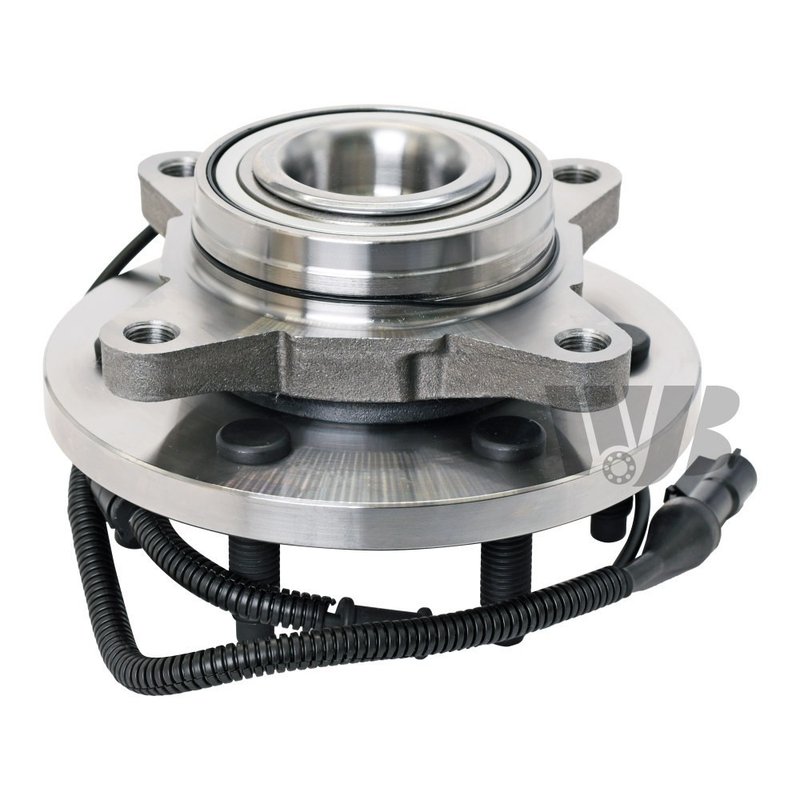

InMotion WA515117HD Wheel Bearing and Hub Assembly - Front
Front Wheel Bearing Hub Assembly for Ford F-150
The InMotion WA515117HD wheel bearing and hub assembly is a direct replacement for the front hub on select 2009-2010 Ford F-150 models. Built from OE data and measurements, it is engineered for proper fit, stable wheel support, and long service life.
For buyers searching for a front wheel bearing hub assembly for 2009-2010 Ford F-150, WA515117HD provides the correct hub, bearing, and ABS sensor integration in one service part.
Key Features
- Fits 2009-2010 Ford F-150, front
- InMotion part number WA515117HD
- New wheel bearing and hub assembly
- Roller bearing design for front wheel support
- ABS sensor included with linear connector
- Tone ring with 54 teeth for ABS signal input
- 6-bolt flange design with 4 knuckle mounting bolts
- OE-data-based dimensions for direct replacement fitment
Detailed Description
The WA515117HD is a front wheel bearing and hub assembly designed for non-driven applications on the Ford F-150. It features a 7.2 in. flange diameter, 1.8 in. flange offset, 3.54 in. hub pilot diameter, and a 5.31 in. hub centerbore diameter. The assembly also uses M14-2 flange bolt threads, M14-1.5 lug bolt threads, and includes a wiring harness with a 44 in. length for the ABS sensor connection.
This part cross-references Timken SP550216 for the same application. If you are replacing a worn front hub on a 2009-2010 Ford F-150, WA515117HD is built to match the original mounting and sensor layout. The InMotion WA515117HD is intended for service work where correct hub geometry and ABS function are required.
Common Problems This Part Can Address
- Front wheel noise caused by a worn bearing
- ABS warning light from a failed hub sensor assembly
- Wheel play or looseness at the front hub
- Uneven wheel rotation from hub wear
- Vibration or roughness from a deteriorated bearing surface
Installation Notes and Tips
Verify front axle application, flange bolt pattern, and ABS connector style before installation. Clean the knuckle mounting surface and inspect related fasteners, brake components, and wiring before fitting the new hub assembly. Confirm that the sensor harness routes correctly and that the tone ring is seated properly during installation.
Quality Assurance
InMotion manufactures this hub assembly with high-precision processes and strict quality-control criteria. Each WA515117HD unit is engineered from OE data and measurements to support correct fitment, performance, and durability on the specified Ford F-150 front application.
| Brand | InMotion |
|---|---|
| Part Number | WA515117HD |
| Hub Pilot Diameter | 3.54 |
| Hub Pilot Diameter | 90 |
| Flange Shape | Circle |
| Anti Lock Brake Sensor Included | Yes |
| Bearing Type | Roller |
| Flange Offset | 1.8 |
| Flange Offset | 45.6 |
| Flange Diameter | 183 |
| Flange Diameter | 7.2 |
| Abs Connector Shape | Linear |
| Abs Ring Type | Tone ring |
| Driven Or Non-driven | Non-driven |
| Flange Bolt Size (in) | 0.55000000000000004 |
| Flange Bolt Size (mm) | 14 |
| Flange Bolt Thread Size | M14-2 |
| Hub Centerbore Diameter (in) | 5.31 |
| Hub Centerbore Diameter (mm) | 135 |
| Lug Bolt Thread Size | M14-1.5 |
| New Or Remanufactured | New |
| Number Of Abs Sensor Ring Teeth | 54 |
| Number Of Flange Bolts Included | 6 |
| Number Of Lug Bolts Included | 0 |
| Number Of Mounting Bolts To Knuckle | 4 |
| Wiring Harness Included | Yes |
| Wiring Harness Length (in) | 44 |
This part fits 2 vehicles. Search below:
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2010 | Ford | F-150 | RWD | Front | Premium Grade |
| 2009 | Ford | F-150 | RWD | Front | Premium Grade |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
