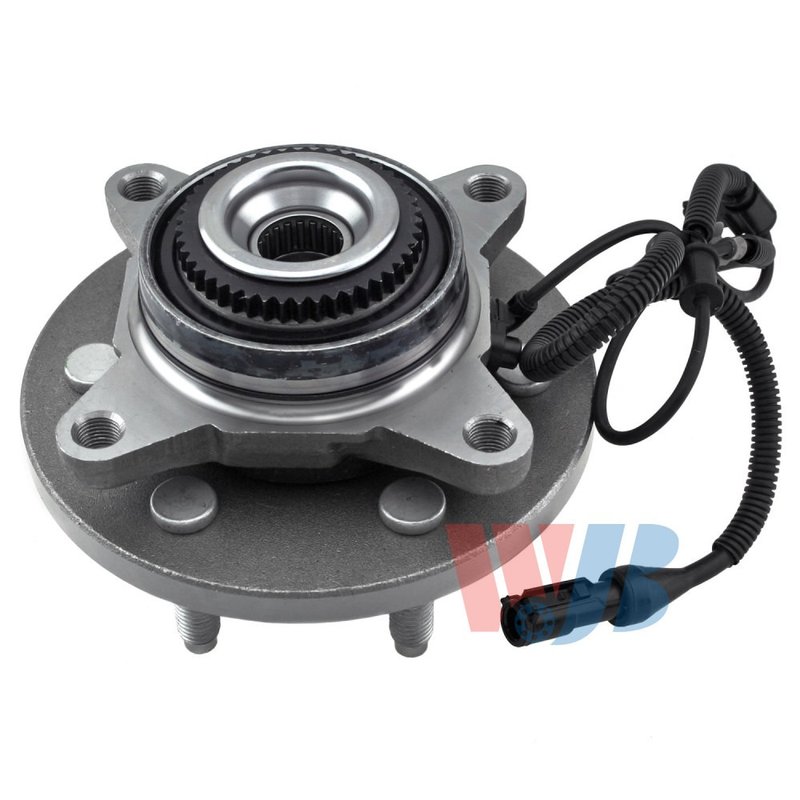

InMotion WA515119 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing and Hub Assembly for Ford F-150

InMotion WA515119 is a front wheel bearing and hub assembly built for 2009-2010 Ford F-150 Standard Grade applications. It is engineered from OE data and measurements for direct replacement fitment, with precision manufacturing and quality control focused on fit, performance, and service life.

Key Features

• Direct replacement front hub assembly for 2009-2010 Ford F-150
• Includes ABS sensor provision with sensor included
• 45 spline quantity for the specified application
• 6 wheel studs with a 4-hole flange bolt pattern
• Modified flange shape with 45.5 flange offset
• Wheel pilot diameter: 86.8 mm
• Brake pilot diameter: 90.0 mm
• Hub pilot diameter: 99.3 mm
• Bolt circle diameter: 135.0 mm / 5.315 in

Detailed Description

Built for front axle service, InMotion WA515119 is a wheel bearing and hub assembly for the Ford F-150 that matches the original application using OE-based dimensions and measurements. The assembly is designed for 2009-2010 Ford F-150 front replacement work where correct hub geometry, stud count, and ABS sensor integration are required. If you are sourcing a Ford F-150 front wheel bearing and hub assembly, WA515119 provides the specified fitment and dimensional details needed for a proper repair.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Fix

• Front wheel bearing noise or rough rotation
• Excessive hub play or looseness at the wheel
• ABS warning light concerns related to the hub sensor setup
• Uneven wheel mounting caused by worn hub components
• Vibration or instability traced to a failing front hub assembly

Installation Notes and Tips

Confirm the vehicle is a 2009-2010 Ford F-150 Standard Grade front application before ordering. Verify spline count, bolt circle diameter, flange offset, and pilot diameters against the original part to ensure correct installation. Inspect the mating surfaces, axle interface, and ABS wiring condition during replacement, and torque all fasteners to factory specifications.

Quality Assurance

InMotion manufactures this hub assembly using high-precision processes and strict quality-control criteria. Each WA515119 unit is built from OE data and measurements to support accurate fitment, consistent performance, and long-term durability for Ford F-150 front hub service.
