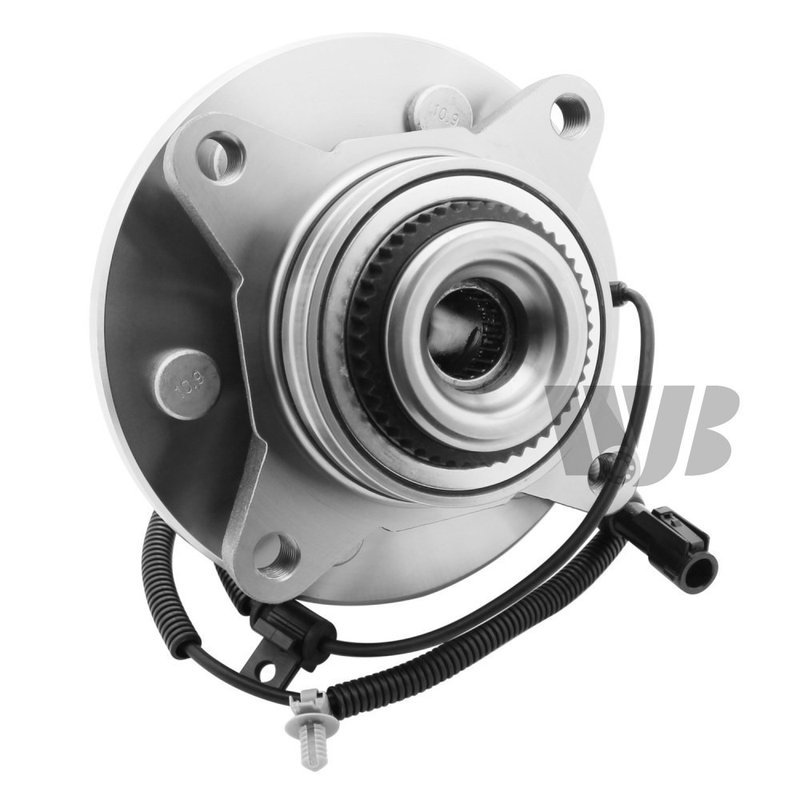

InMotion WA515119HD Wheel Bearing and Hub Assembly - Front

Front Wheel Hub Assembly for Ford F-150

InMotion WA515119HD is a new front wheel bearing and hub assembly built for the 2009-2010 Ford F-150. It is engineered from OE data for direct replacement fitment, with a precision-manufactured design that supports proper wheel mounting, ABS function, and long service life.

Key Features

• Direct replacement wheel bearing and hub assembly for the front position
• Fits 2009-2010 Ford F-150, front
• New unit with roller bearing construction
• ABS sensor included with tone ring and linear connector
• 6 flange bolts included; 4 mounting bolts to knuckle
• Wiring harness included, 43 in. length
• Non-driven hub assembly
• Hub pilot diameter: 3.54 in. / 90 mm
• Flange diameter: 7.2 in. / 183 mm
• Flange offset: 1.8 in. / 45.6 mm

Detailed Description

InMotion WA515119HD is engineered as an OE-style replacement for the front wheel hub on the 2009-2010 Ford F-150. The assembly uses OE measurements and application-specific design to help maintain correct wheel alignment at the hub, stable wheel support, and consistent ABS signal performance. This part number, WA515119HD, is also referenced by aftermarket cross numbers such as SKF BR930759 and Timken SP550214 for the same application.

Built with a roller bearing and a tone ring ABS setup, this hub assembly includes the ABS sensor and wiring harness for a complete front hub service. The flange uses an M14-2 thread size, with six flange bolts and a circular flange shape. The hub centerbore measures 5.31 in. / 135 mm, and the lug bolt thread size is M14-1.5.

What It Helps Fix

• Wheel bearing noise from a worn front hub assembly
• ABS warning light caused by a failing hub-mounted sensor or tone ring
• Front wheel looseness or play at the hub
• Uneven wheel support from a damaged bearing assembly
• Vibration or roughness related to hub wear

Installation Notes and Tips

Confirm front-position fitment before installation on the 2009-2010 Ford F-150. Inspect the knuckle mounting surface, axle interface, and ABS connector routing before assembly. Because this unit includes an ABS sensor and wiring harness, verify connector style and harness routing during installation to avoid signal issues after service.

Quality Assurance

InMotion manufactures this hub assembly using high-precision processes and strict quality-control criteria. Each WA515119HD is built for the specified application using OE data and measurements to support fitment, performance, and durability.
