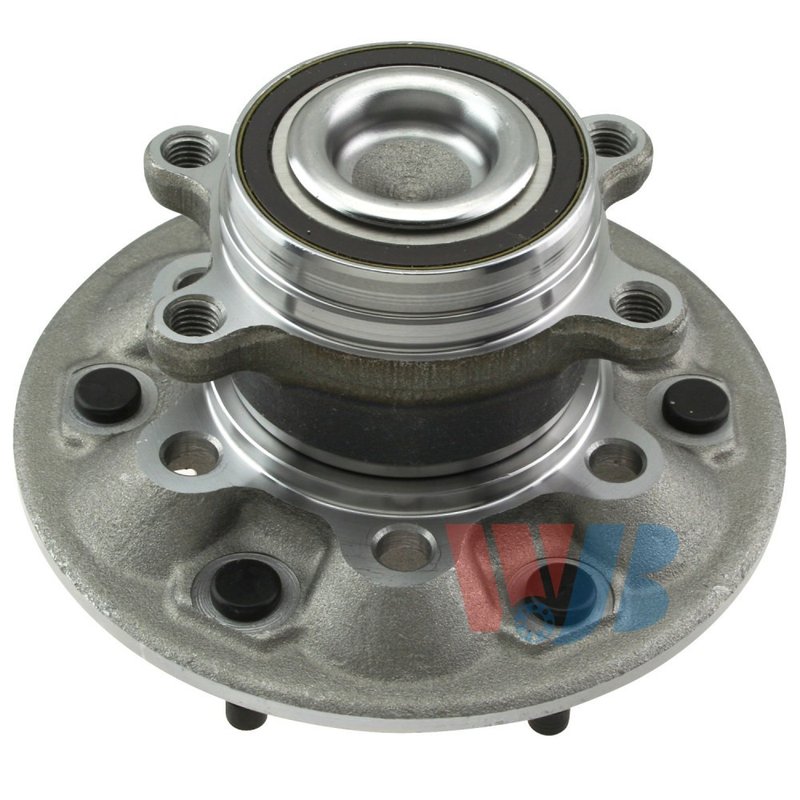

InMotion WA515120 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for Colorado and Canyon

InMotion WA515120 is a front wheel bearing and hub assembly built for 2009-2012 Chevrolet Colorado and 2009-2012 GMC Canyon Standard Grade applications. It is engineered from OE data and measurements for direct replacement fitment, with the hub, bearing, and ABS sensor integration matched to the original design.

Key Features

• Direct replacement front hub assembly for Chevrolet Colorado and GMC Canyon
• Includes ABS sensor
• Manufactured with high-precision processes and strict quality-control criteria
• OE-data-based dimensions for fitment, performance, and service life
• 6 wheel studs with a 5.512 in. bolt circle diameter
• Modified flange shape with 4 flange bolt holes
• Hub pilot diameter: 85.0 mm
• Wheel pilot diameter: 99.5 mm
• Brake pilot diameter: 91.9 mm
• Flange diameter: 184.0 mm; flange offset: 67.1 mm

Detailed Description

InMotion WA515120 is a front wheel bearing and hub assembly designed for Standard Grade 2009-2012 Chevrolet Colorado and 2009-2012 GMC Canyon models. The assembly is built to OE specifications using precise measurements so it matches the original mounting and interface points, including the ABS sensor provision, wheel stud layout, and pilot diameters. For buyers searching for a front wheel hub assembly for Chevrolet Colorado or GMC Canyon, WA515120 provides the dimensional details needed to confirm the correct application before service.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

• Wheel bearing noise from a worn front hub assembly
• ABS warning light concerns related to hub-mounted sensor issues
• Front wheel looseness or play caused by bearing wear
• Uneven hub rotation or roughness during wheel service checks
• Fitment problems when replacing a damaged original hub on Colorado or Canyon

Installation Notes and Tips

Confirm the vehicle is a 2009-2012 Chevrolet Colorado or 2009-2012 GMC Canyon, front, Standard Grade before ordering. Verify bolt circle diameter, stud count, pilot diameters, and flange dimensions against the original part. Because this assembly includes an ABS sensor, inspect the connector and wiring condition during replacement and clear any stored ABS codes after installation if required by the vehicle.

Quality Assurance

InMotion manufactures this hub assembly with high-precision equipment and strict quality-control standards. The part is engineered from OE data and measurements to support correct fitment and consistent replacement performance for the listed Colorado and Canyon applications.
