Part #: WA515120HD

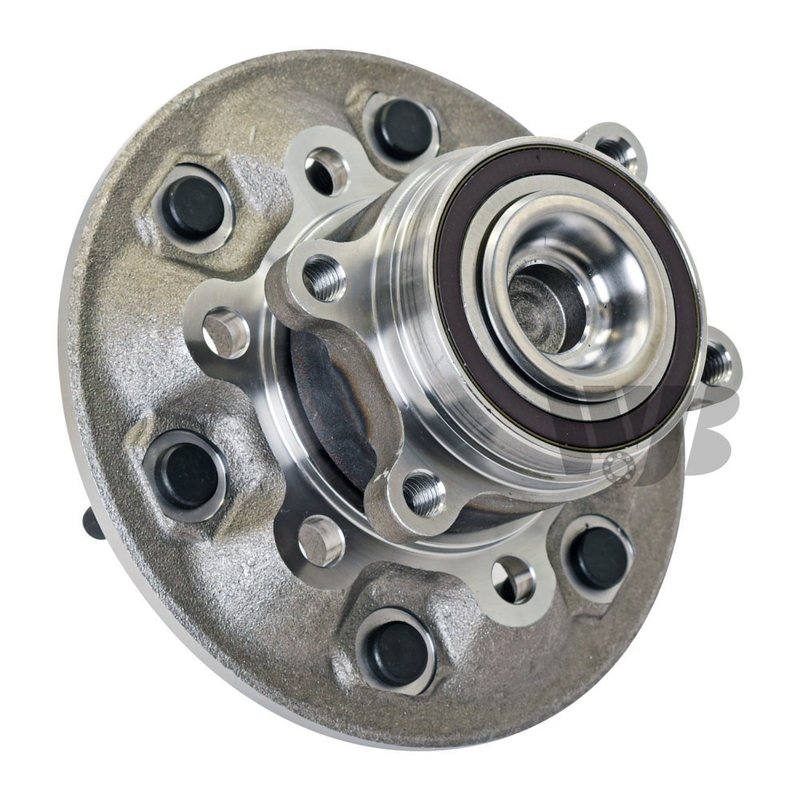

InMotion WA515120HD Wheel Bearing and Hub Assembly - Front

Front
⚙️ 8 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$190.99Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
🚗Fitment: Chevrolet and GMC, Canyon and Colorado
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Wheel Bearing and Hub Assembly options
InMotion WA515120HD Wheel Bearing and Hub Assembly - Front
BrandInMotion
Part NumberWA515120HD
Hub Pilot Diameter100
Hub Pilot Diameter3.94
Flange ShapeCircle
Anti Lock Brake Sensor IncludedNo
Bearing TypeRoller
Flange Offset2.65
Flange Offset67.2
Flange Diameter184
Flange Diameter7.24
Abs Ring TypeMagnetic encoder
Driven Or Non-drivenNon-driven
Flange Bolt Size (in)0.47
Flange Bolt Size (mm)12
Flange Bolt Thread SizeM12-1.5
Hub Centerbore Diameter (in)5.5
Hub Centerbore Diameter (mm)139.69999999999999
Lug Bolt Thread SizeM12-1.75
New Or RemanufacturedNew
Number Of Abs Sensor Ring Teeth50
Number Of Flange Bolts Included6
Number Of Lug Bolts Included0
Number Of Mounting Bolts To Knuckle4
Wiring Harness IncludedNo

This part fits 8 vehicles. Search below:

YearMakeModelDrive TypePositionNotes
2012ChevroletColoradoRWDFrontPremium Grade
2012GMCCanyonRWDFrontPremium Grade
2011ChevroletColoradoRWDFrontPremium Grade
2011GMCCanyonRWDFrontPremium Grade
2010ChevroletColoradoRWDFrontPremium Grade
2010GMCCanyonRWDFrontPremium Grade
2009ChevroletColoradoRWDFrontPremium Grade
2009GMCCanyonRWDFrontPremium Grade

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

25832143515120BR930702HA590300

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
