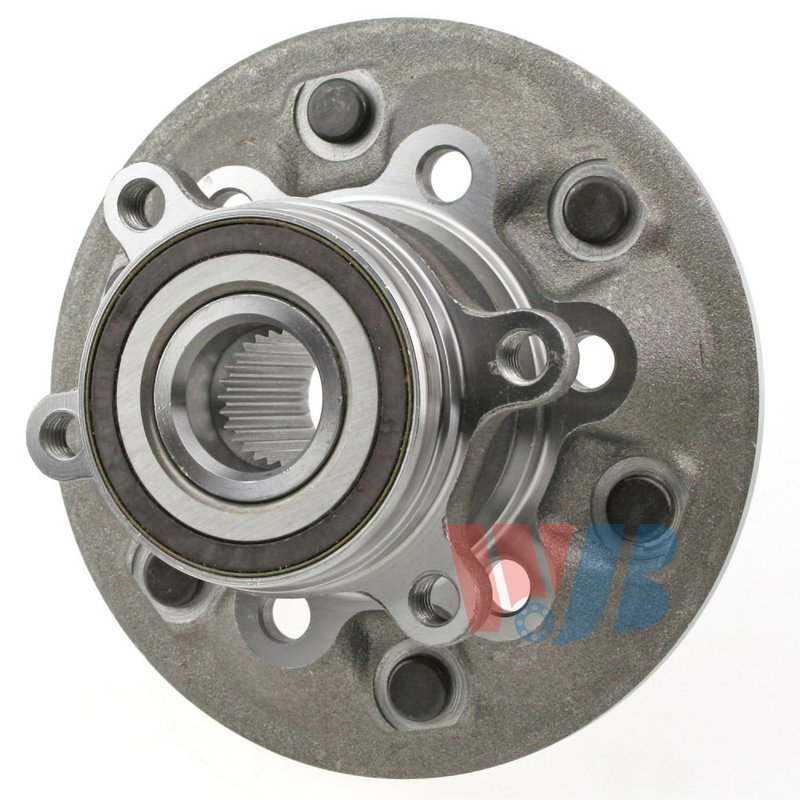

InMotion WA515121 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for Colorado and Canyon

InMotion WA515121 is a front wheel bearing and hub assembly built for 2009-2012 Chevrolet Colorado and 2009-2012 GMC Canyon Standard Grade applications. It is engineered from OE data and measurements for direct replacement fitment, with the hub, bearing, and ABS sensor integrated into one service part.

Key Features

• Direct replacement front hub assembly for Chevrolet Colorado and GMC Canyon
• Part number WA515121 for easy identification and ordering
• Includes ABS sensor
• 27-spline design with 6 wheel studs
• 4 flange bolt holes and modified flange shape
• Wheel pilot diameter: 99.5 mm
• Brake pilot diameter: 91.9 mm
• Hub pilot diameter: 85.0 mm
• Bolt circle diameter: 139.9 mm / 5.512 in
• Flange diameter: 184.0 mm with 67.3 mm flange offset

Detailed Description

InMotion WA515121 is manufactured with high-precision processes and strict quality-control standards to match the original front hub assembly dimensions for the 2009-2012 Chevrolet Colorado and 2009-2012 GMC Canyon. The OE-based design supports proper wheel mounting, bearing operation, and ABS system integration, making it a practical choice for front-end service on these trucks. If you are searching for a front wheel bearing and hub assembly for a 2009-2012 Chevrolet Colorado or 2009-2012 GMC Canyon, WA515121 provides the key fitment and dimensional details needed for a direct replacement.

Common Issues This Part Can Address

• Front wheel bearing noise or rough rotation
• Excessive hub play or looseness at the wheel
• ABS warning light caused by a failed hub sensor assembly
• Uneven wheel mounting due to worn hub components
• Vibration or instability related to hub wear

Installation Notes and Tips

Confirm front-position fitment before ordering: Fits 2009-2012 Chevrolet Colorado, front, Standard Grade; Fits 2009-2012 GMC Canyon, front, Standard Grade. Verify spline count, bolt circle, pilot diameters, and ABS sensor connection against the removed part before installation. Clean the mounting surface thoroughly and inspect related suspension and brake components during service. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Quality Assurance

InMotion manufactures this hub assembly using OE data, precise measurements, and controlled production standards to support correct fitment and consistent performance. Part number WA515121 is built as a direct replacement for the original front wheel bearing and hub assembly on the listed Chevrolet Colorado and GMC Canyon applications.
