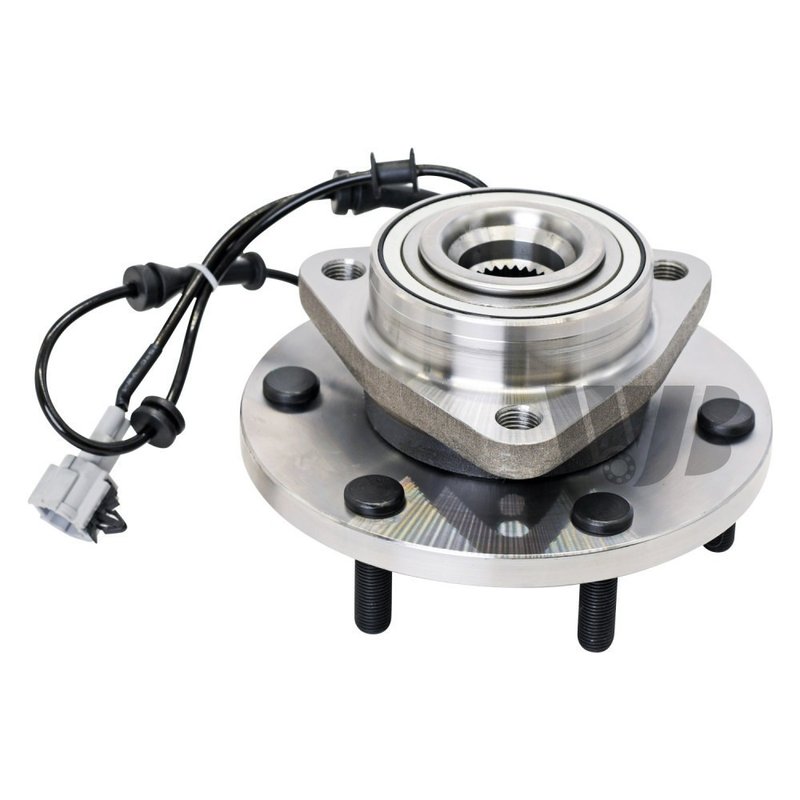

InMotion WA515125HD Wheel Bearing and Hub Assembly - Front
OE Quality 60-Day Returns
InMotion

InMotion WA515125HD Wheel Bearing and Hub Assembly - Front

Brand InMotion WA515125HD
Position Front
Spline Quantity 29
Hub Pilot Diameter 3.54
Hub Pilot Diameter 90
Flange Shape Circle
Anti Lock Brake Sensor Included Yes
Bearing Type Roller
Flange Offset 1.79
Flange Offset 45.5
Flange Diameter 171
Flange Diameter 6.73
Abs Connector Shape Linear
Abs Ring Type Tone ring
Driven Or Non-driven Driven
Flange Bolt Size (in) 0.47
Flange Bolt Size (mm) 12
Flange Bolt Thread Size M12-1.25
Hub Centerbore Diameter (in) 5.5
Hub Centerbore Diameter (mm) 139.69999999999999
Lug Bolt Thread Size M14-1.5
New Or Remanufactured New
Number Of Abs Sensor Ring Teeth 54
Number Of Flange Bolts Included 6
Number Of Lug Bolts Included 0
Number Of Mounting Bolts To Knuckle 3
Wiring Harness Included Yes
Wiring Harness Length (in) 32.9
Fits INFINITI and Nissan · 13 vehicles

Cross-references MOOG Hub Assemblies 515125, SKF BR930829 and 40202-ZR40B for the same application. See all 3.

$200.09Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $200.09
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Wheel Bearing and Hub Assembly options
InMotion WA515125HD Wheel Bearing and Hub Assembly - Front

Related reading

This part fits 13 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2012NissanArmadaFrontPremium Grade
2012NissanTITANFrontPremium Grade
2011NissanArmadaFrontPremium Grade
2011NissanTITANFrontPremium Grade
2010INFINITIQX56FrontPremium Grade
2010NissanArmadaFrontPremium Grade
2010NissanTITANFrontPremium Grade
2009INFINITIQX56FrontPremium Grade
2009NissanArmadaFrontPremium Grade
2009NissanTITANFrontPremium Grade
2008INFINITIQX56FrontPremium Grade
2008NissanArmadaFrontPremium Grade
2008NissanTITANFrontPremium Grade
Directly replaces or cross-references 3 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
MOOG Hub Assemblies — 515125SKF — BR93082940202-ZR40B
