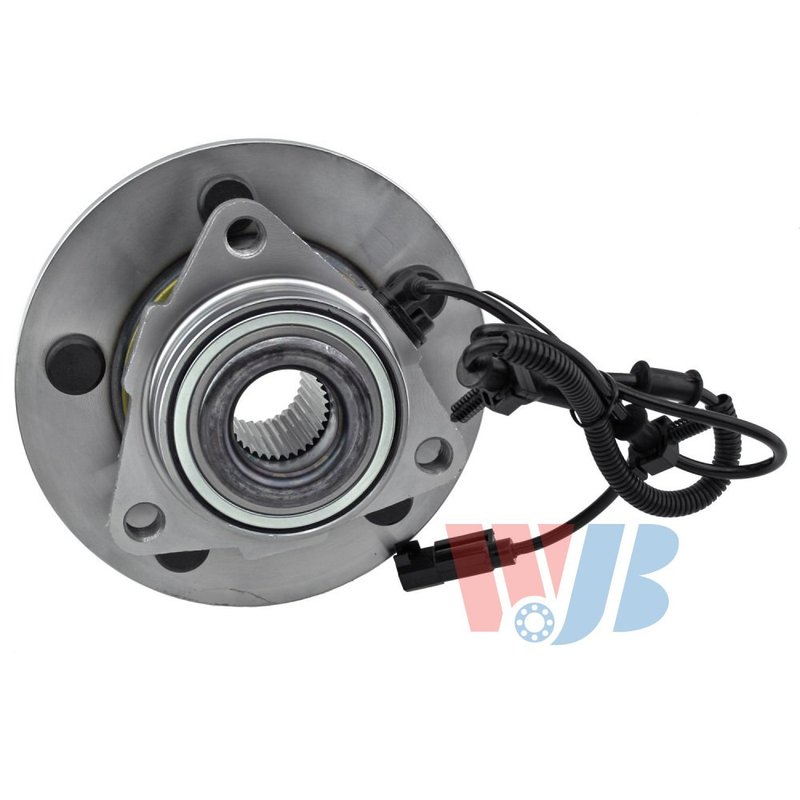

InMotion WA515126 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing and Hub Assembly

InMotion WA515126 is a front wheel bearing and hub assembly built for direct replacement service on select Ram and Dodge Ram 1500 applications. It is engineered from OE data and measurements to support proper fitment, wheel mounting, and long-term service life.

Fits 2011 Ram 1500, front standard grade. Fits 2009-2010 Dodge Ram 1500, front standard grade.

Key Features

• Direct replacement wheel hub assembly for the front axle
• 33-spline design
• 5 wheel studs with a 183.0 mm bolt circle diameter
• 3 flange bolt holes and triangle flange shape
• Integrated ABS sensor included
• Hub pilot diameter: 90.0 mm
• Wheel pilot diameter: 77.7 mm
• Brake pilot diameter: 78.4 mm
• Flange offset: 49.8 mm
• Flange diameter: 183.0 mm

Detailed Description

InMotion WA515126 is manufactured with high-precision processes and strict quality-control standards to match the original hub assembly dimensions for the listed vehicles. The assembly is built for the front position on 2011 Ram 1500 and 2009-2010 Dodge Ram 1500 standard grade applications, with OE-based measurements that support correct wheel seating, brake interface alignment, and sensor integration. The 5-lug, 33-spline configuration and included ABS sensor make this a practical replacement for a worn or damaged front wheel bearing and hub assembly on Ram 1500 and Dodge Ram 1500 trucks.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Repair Uses

• Front wheel bearing noise or rough rotation
• Wheel hub play or looseness at the front axle
• ABS warning light caused by a failed hub sensor assembly
• Uneven wheel mounting or damaged hub flange surfaces
• Restoring proper front-end wheel support on Ram 1500 and Dodge Ram 1500 trucks

Installation Notes and Tips

Verify spline count, bolt pattern, pilot diameters, and front-position fitment before installation. Inspect the mating surfaces, axle components, and ABS wiring for wear or damage during replacement. Torque all fasteners to the vehicle manufacturer’s specifications and confirm proper sensor operation after installation.

Quality Assurance

InMotion manufactures this hub assembly using OE data and dimensional measurements to help ensure fitment, performance, and durability for the listed applications. The part is produced under strict quality-control criteria for direct replacement service.
