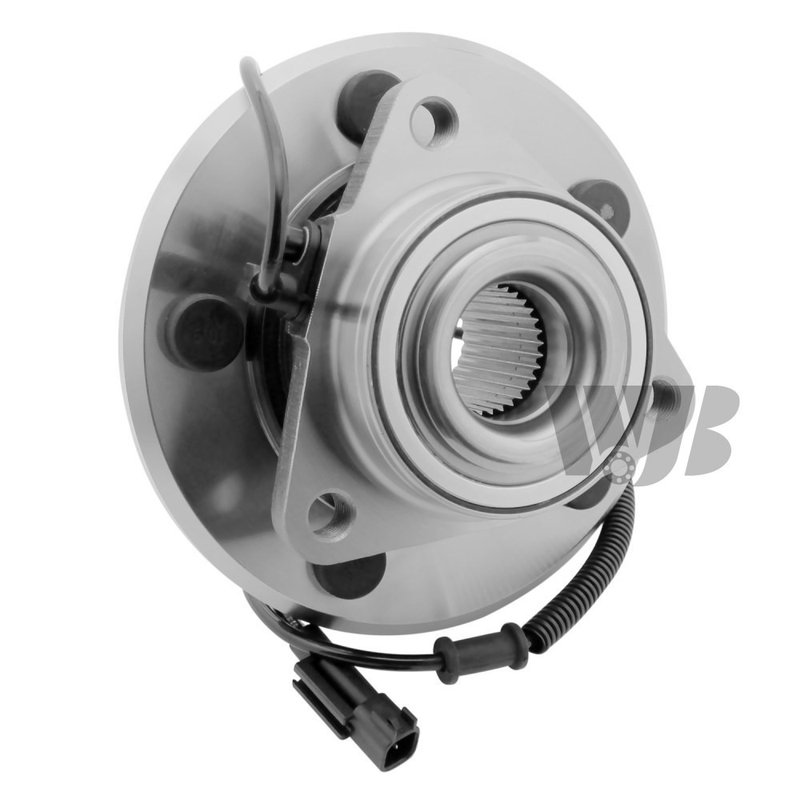

InMotion WA515126HD Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for Ram 1500

InMotion WA515126HD is a new front wheel bearing and hub assembly built for direct replacement service on select Ram and Dodge Ram 1500 applications. It uses OE data and measurements for fitment, with a roller bearing design, integrated ABS sensor, and tone ring for reliable wheel speed signal output.

Compatible With 2009-2011 Ram 1500 and Dodge Ram 1500 front hub service, this assembly is engineered for the driven front position and built to match the original mounting and flange dimensions. The WA515126HD is also cross-referenced to SKF BR930808 for the same application.

Key Features

• New wheel bearing and hub assembly for front installation
• 33-spline driven hub design
• Roller bearing construction
• Integrated ABS sensor with linear connector
• Tone ring with 55 teeth
• 5-bolt flange with 3-bolt knuckle mounting pattern
• Hub pilot diameter: 3.09 in. / 78.4 mm
• Flange diameter: 7.2 in. / 183 mm
• Flange offset: 1.84 in. / 46.8 mm
• Lug bolt thread size: M14-1.5

Detailed Description

InMotion WA515126HD is manufactured as a direct-fit front hub assembly for 2009-2011 Ram 1500 and Dodge Ram 1500 models. It is built from OE data and measurements to match the original hub geometry, flange layout, and sensor configuration, helping maintain proper wheel support and ABS signal performance. The assembly includes the ABS sensor and wiring harness, and it uses a 33-spline driven hub with a roller bearing design for front driveline service.

Additional specifications include a 5.5 in. / 139.7 mm hub centerbore diameter, 9/16"-18 flange bolt thread size, and a circular flange shape. Part number WA515126HD is also referenced by MOOG 515126, SKF BR930808, Timken HA590354, and OE number 68024245AA.

What This Part Helps Address

• Wheel bearing noise from a worn front hub assembly
• ABS warning light concerns related to a failed hub sensor
• Front wheel looseness or play caused by bearing wear
• Uneven wheel speed signal output from a damaged tone ring
• Fitment issues when replacing the original front hub on Ram 1500 or Dodge Ram 1500 models

Installation Notes and Tips

Verify the vehicle is a 2009-2011 Ram 1500 or Dodge Ram 1500 with front hub service before ordering. Confirm spline count, flange bolt pattern, hub pilot diameter, and ABS connector style against the original part. Because this assembly is for the driven front position, match the replacement to the vehicle’s front driveline configuration and inspect the knuckle mounting surface before installation.

Quality Assurance

InMotion manufactures this hub assembly under strict quality-control criteria and uses OE-based engineering data to support fitment, performance, and service life. The WA515126HD is a new replacement part built for direct replacement use on the listed applications.
