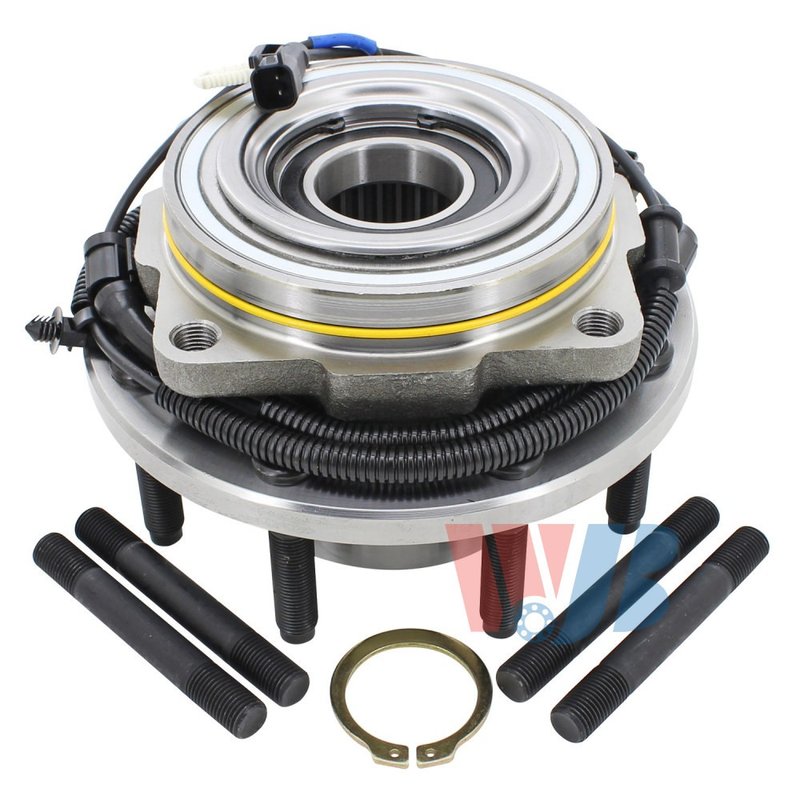

InMotion WA515130 Wheel Bearing and Hub Assembly - Front

Front Wheel Hub Assembly for Super Duty Trucks

InMotion WA515130 is a front wheel bearing and hub assembly built for 2011-2016 Ford F-250 Super Duty and Ford F-350 Super Duty models. It is engineered from OE data and measurements for direct replacement fitment, with the precision and dimensional control needed for heavy-duty front-end service.

Key Features

• Fits 2011-2016 Ford F-250 Super Duty, front
• Fits 2011-2016 Ford F-350 Super Duty, front
• 32-spline hub design
• 8 wheel studs with 4 flange bolt holes
• ABS sensor included
• Wheel pilot diameter: 124.9 mm
• Brake pilot diameter: 129.0 mm
• Hub pilot diameter: 140.0 mm
• Flange diameter: 203.0 mm
• Bolt circle diameter: 170.0 mm
• Flange offset: 45.9 mm

Detailed Description

This InMotion wheel bearing and hub assembly, part number WA515130, is manufactured with strict quality-control standards and built for the front axle position on Ford Super Duty trucks. The assembly is designed using OE specifications to match the original hub geometry, stud pattern, pilot diameters, and ABS sensor integration required for proper front-wheel service on the Ford F-250 Super Duty and Ford F-350 Super Duty.

For buyers searching for a front wheel hub assembly for 2011-2016 Ford F-250 Super Duty or a direct replacement hub for 2011-2016 Ford F-350 Super Duty, WA515130 provides the key dimensions needed for accurate installation and dependable fitment. The 32-spline configuration, 8-stud layout, and 170.0 mm bolt circle support the heavy-duty front hub application these trucks require.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Repair Uses

• Front wheel bearing noise or rough rotation
• ABS warning light caused by a failed hub sensor assembly
• Wheel looseness or play at the front hub
• Uneven front-end wear related to hub or bearing damage
• Replacement after hub seal or bearing deterioration

Installation Notes and Tips

Confirm the vehicle is a 2011-2016 Ford F-250 Super Duty or Ford F-350 Super Duty with front-position hub requirements before ordering. Verify spline count, bolt circle diameter, flange offset, and pilot diameters against the original part to ensure correct installation. Because the ABS sensor is included, inspect the connector and wiring condition during service and clear any stored fault codes after installation.

Quality Assurance

InMotion manufactures this hub assembly with high-precision processes and OE-based measurements to support fitment, performance, and service life. Each unit is produced under strict quality-control criteria for consistent front hub replacement on Super Duty applications.
