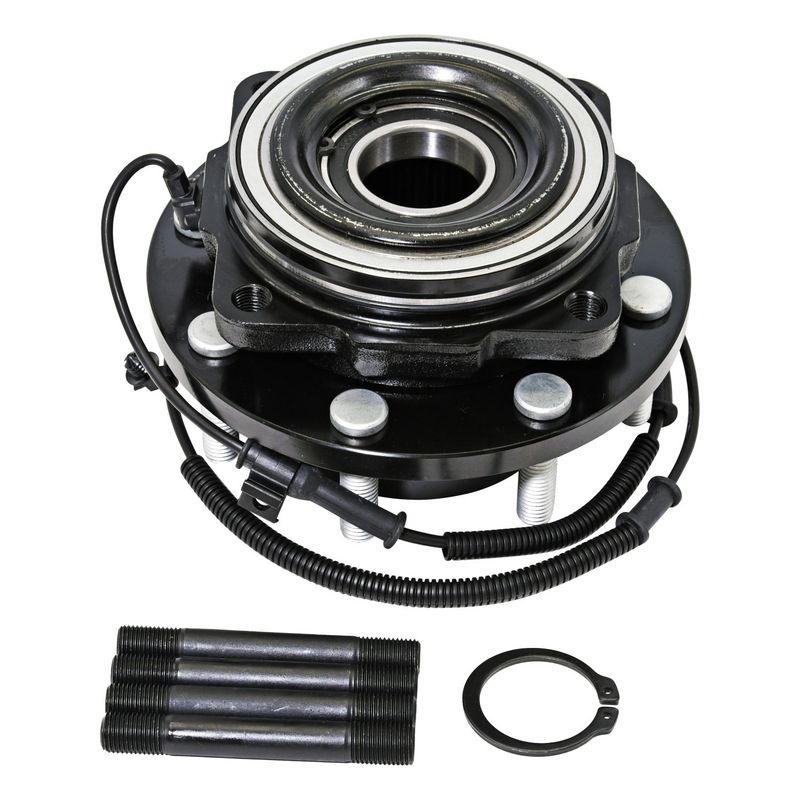

InMotion WA515134HD Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for Super Duty

The InMotion WA515134HD wheel bearing and hub assembly is a direct replacement front hub built for 2013-2016 Ford F-250 Super Duty and Ford F-350 Super Duty applications. It is engineered from OE data for accurate fitment, stable wheel support, and long service life.

• Direct replacement front wheel bearing and hub assembly
• Fits 2013-2016 Ford F-250 Super Duty, front
• Fits 2013-2016 Ford F-350 Super Duty, front
• 32-spline hub design
• 8 wheel studs with 4 flange bolt holes
• ABS sensor included
• OE-based dimensions for fitment and alignment

Built to OE Specifications

Part number WA515134HD is manufactured with high-precision processes and strict quality-control standards. Key dimensions include a 170.0 mm bolt circle diameter, 203.0 mm flange diameter, 46.1 mm flange offset, 124.9 mm wheel pilot diameter, 128.8 mm brake pilot diameter, and 140.0 mm hub pilot diameter. These measurements help ensure the hub assembly matches the original front-end geometry on Ford F-250 Super Duty and Ford F-350 Super Duty trucks.

This part cross-references Timken HA590440 and SKF BR930883 for the same application.

Common Repair Symptoms

• Front wheel bearing noise or growling
• ABS warning light caused by a failed hub sensor
• Wheel looseness or uneven front-end feel
• Hub wear that affects braking stability
• Vibration or rough rotation at the front wheel

Installation Notes

Confirm spline count, bolt pattern, and pilot diameters before installation. Inspect the mating surfaces, axle interface, and ABS connector condition during service. Torque fasteners to the vehicle manufacturer’s specifications and verify proper wheel rotation and ABS operation after installation. WA515134HD is intended for front axle service on the listed Super Duty models.

Quality Assurance

InMotion manufactures this hub assembly using OE data and measured application specifications to support proper fitment, performance, and durability. Each unit is produced under strict quality-control criteria for direct replacement use.
