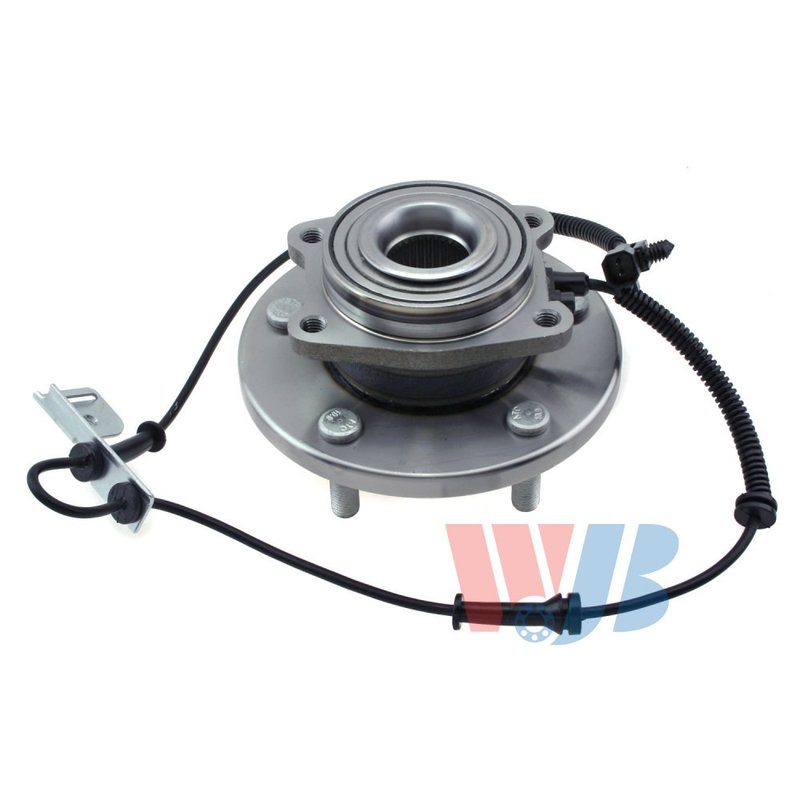

InMotion WA515136 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing and Hub Assembly

InMotion WA515136 is a front wheel bearing and hub assembly built for direct replacement service on select Volkswagen, Chrysler, and Dodge minivans. It is engineered from OE data and measurements for accurate fitment, stable wheel support, and long service life.

• Front wheel bearing and hub assembly for driveline and axle service
• 32-spline design with 5 wheel studs
• 4 flange bolt holes for secure mounting
• ABS sensor included
• Modified flange shape with 48.6 flange offset
• Hub pilot diameter: 85.0 mm
• Wheel pilot diameter: 71.4 mm
• Brake pilot diameter: 72.4 mm
• Bolt circle diameter: 127.0 mm / 5.0 in

Fitment Details

Compatible with front applications on the following vehicles:

• Fits 2009-2012 Volkswagen Routan, front
• Fits 2008-2011 Chrysler Town & Country, front
• Fits 2008-2011 Dodge Grand Caravan, front

This InMotion WA515136 hub assembly is built for the front axle position on the Volkswagen Routan, Chrysler Town & Country, and Dodge Grand Caravan listed above. The OE-based dimensions and controlled manufacturing process help ensure the hub seats correctly, the wheel mounts properly, and the ABS system receives the signal required for normal operation. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Replacement Reasons

• Wheel bearing noise from the front hub area
• ABS warning light caused by a failing hub sensor
• Wheel play or looseness at the front axle
• Uneven hub wear affecting steering feel
• Vibration or rough rotation from a worn assembly

Installation Notes

Verify spline count, bolt circle diameter, flange offset, and sensor configuration before installation. Clean the mounting surface, inspect the axle and knuckle for wear, and torque all fasteners to the vehicle manufacturer’s specifications. Because this assembly includes an ABS sensor, confirm connector routing and sensor alignment during installation.

Quality Assurance

InMotion manufactures this hub assembly using high-precision processes and strict quality-control criteria. Each WA515136 unit is produced to match OE data and measurements for fitment, performance, and durability on the specified front applications.
