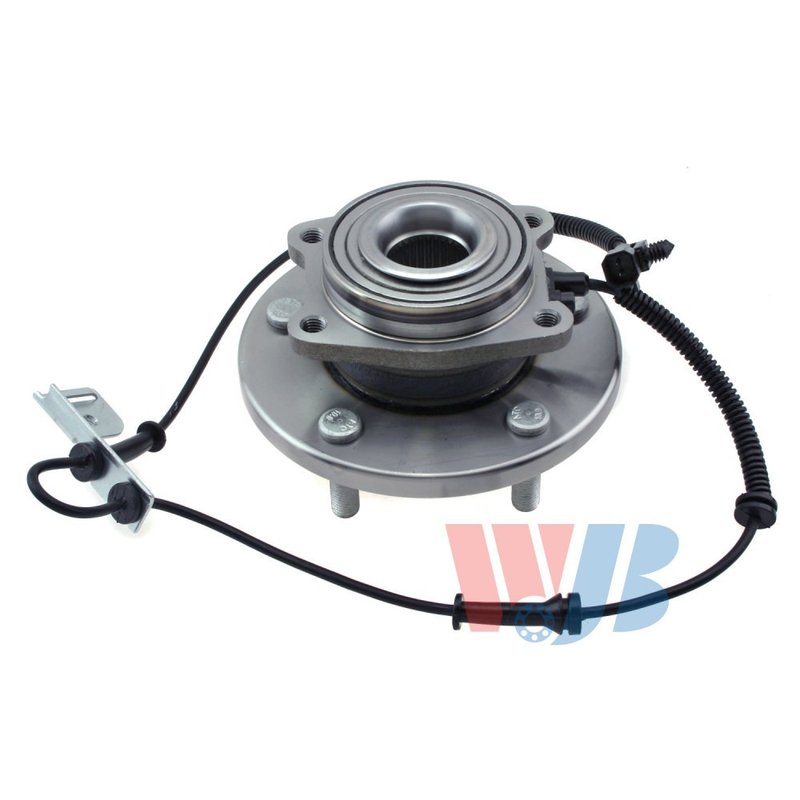

InMotion WA515136HD Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for Routan, Town & Country, Grand Caravan

InMotion WA515136HD is a new front wheel bearing and hub assembly built for direct replacement on select Chrysler, Dodge, and Volkswagen minivans. It is engineered from OE data for accurate fitment, stable wheel support, and long service life on the front axle.

Key Features

• Part number: WA515136HD
• Front wheel bearing and hub assembly for driven applications
• 32-spline design with roller bearing construction
• ABS sensor included with tone ring and linear connector
• 5-bolt flange with M12-1.5 thread size
• New assembly manufactured to strict quality-control criteria
• Hub pilot diameter: 72.45 mm (2.85 in)
• Flange diameter: 161.6 mm (6.36 in)
• Wiring harness included, 38 in length

Detailed Description

InMotion WA515136HD is a front wheel bearing hub assembly designed for 2008-2011 Chrysler Town & Country, 2008-2011 Dodge Grand Caravan, and 2009-2012 Volkswagen Routan models. This assembly uses OE-based measurements to match the original hub geometry, flange dimensions, and ABS interface for a precise replacement on the front position. The integrated ABS sensor, tone ring, and wiring harness support proper wheel speed signal transfer, while the roller bearing design and 32-spline hub help maintain smooth rotation and dependable driveline engagement. This part cross-references Timken HA590243 for the same application.

What It Helps Address

• Front wheel bearing noise or rough rotation
• ABS warning light caused by a failed hub sensor assembly
• Wheel looseness from worn hub components
• Vibration or play at the front wheel end
• Loss of proper wheel speed signal at the front axle

Installation Notes and Tips

Compatible With 2009-2012 Volkswagen Routan, front; 2008-2011 Chrysler Town & Country, front; and 2008-2011 Dodge Grand Caravan, front. Verify spline count, flange bolt pattern, ABS connector style, and hub dimensions before installation. Inspect the knuckle mounting surface, axle splines, and wiring routing during replacement to help ensure proper seating and sensor operation. Use the vehicle’s service procedures and torque specifications for final assembly.

Quality Assurance

InMotion manufactures this hub assembly using high-precision processes and strict quality-control criteria. Each unit is built as a new OE-style replacement using application-specific data and measurements to support fitment, performance, and durability.
